Cold Solvent Extract Basket Centrifuge Machine For Solid Liquid Separation

Product Details

Place of Origin: Jiangsu, China (Mainland)

Brand Name: Peony

Certification: ISO

Model Number: BB-200

Payment & Shipping Terms

Minimum Order Quantity: 1Set

Packaging Details: Wooden case

Delivery Time: 1-10sets/45days >10sets/To be negotiated

Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability: 60 Set/Sets per Month

Get Best Price
Contact Now
Specifications
Highlight:

oil centrifuge machine

,

virgin coconut oil centrifuge machine

Condition:
New
Type:
Basket Centrifuge
Power(W):
3.7~11kw
Grade:
GMP
MOC:
SS304,316 As Option
Motor:
Explosion Proof
Equipped:
Inverter And PLC
Voltage:
220V,380V,440V,480V...
Condition:
New
Type:
Basket Centrifuge
Power(W):
3.7~11kw
Grade:
GMP
MOC:
SS304,316 As Option
Motor:
Explosion Proof
Equipped:
Inverter And PLC
Voltage:
220V,380V,440V,480V...
Description
Cold Solvent Extract Basket Centrifuge Machine For Solid Liquid Separation

Cold Solvent Extract Basket Centrifuge Machine For Solid Liquid Separation

Product Description

BB series centrifuge batch operation extraction equipment, the solid is discharged from top, and liquid is drained at lower part of the machine.
The dry material is put into the bag inside the centrifuge basket, feed in cold ethanol, flood by two directions of rotating, and then use spin for dewatering, and get the mixture of ethanol and CBD oil. The working temperature is very low, around -40~-80℃, to prevent the ethanol from volatilization.

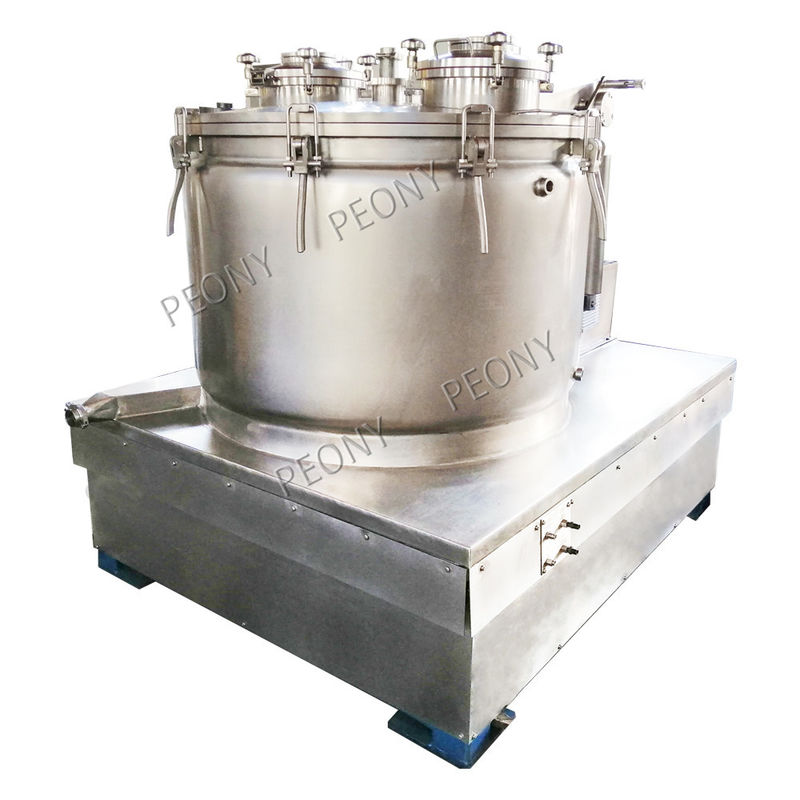

Cold Solvent Extract Basket Centrifuge Machine For Solid Liquid Separation 0

Advantages

Model BB flat-plate centrifuge has got rid of traditional hanging type of leg support and instead it adopts flat-plate counterweight and high-viscosity damping vibration reducer for absorbing vibration.
The installation requires no foundation.

Working Steps
▷System loading
▷Program Menu
▷Fill
▷The Wash cycle
▷System Draining
▷Spin Dry Cycle
▷System Unloading
▷Repeat Process




Application
            1.Plant oil extraction
            2. oil extraction
            3.Trim extraction
            4.Any dry biomass extraction




Technical parameters



Type Basket

Motor

(kw)

(UL Listed/Optional)

Overall size

(L × W × H)

(mm)

Diameter

(mm)

Volume

(L)

dry plant (lbs)
BB-200 1200 700 200/batch 11 2000x1620x1570




Pictures
Cold Solvent Extract Basket Centrifuge Machine For Solid Liquid Separation 1
Cold Solvent Extract Basket Centrifuge Machine For Solid Liquid Separation 2


Service
★ 12 months guarantee period from machine arriving date.
☆ Abundant spare parts in stock are available to provide.
★ Our technicians could be dispatched for overseas service.
☆ 7*24 hours technical consultation.
★ Your workers could get trained both in our factory and yours.
☆ Routine tracing till the machine work properly will be done timely.
★ We will remind you to do the normal maintenance.
☆ Your suggestions or any comments & reflection would be treated in priority.
★ Marketing team will visit you during our visit in your country if you require.
