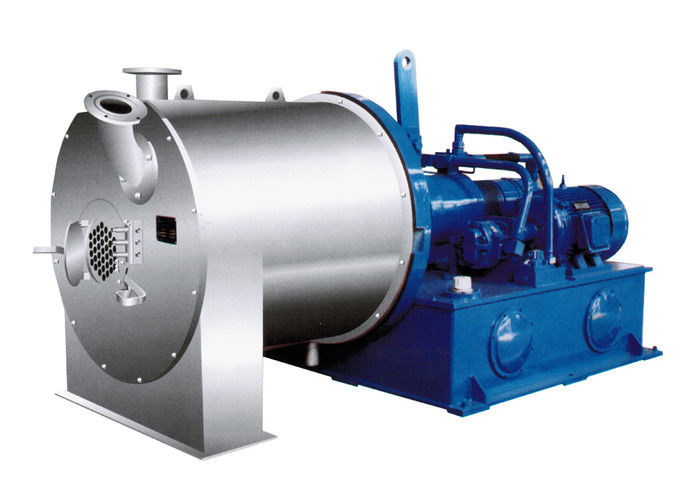

Safety-Interlocked Pusher Centrifuge for Wet Nitrocotton Dehydration



Safety-Interlocked Pusher Centrifuge for Wet Nitrocotton Dehydration is designed for controlled liquid removal from wet nitrocotton / wet nitrocellulose cake under strictly evaluated process conditions.

In nitrocotton production and post-treatment processes, the wet material may contain nitrocellulose fibers, water, wetting liquid, residual process liquor, and fine fibrous solids.

The centrifuge helps remove free liquid from the wet cake while maintaining controlled material handling before the next approved process stage.

• Wet nitrocotton dehydration
• Wet nitrocellulose dewatering
• Free liquid removal from wet nitrocellulose cake
• Nitrocotton wet cake separation after washing
• Wet fiber cake discharge before approved downstream handling
• Mother liquor or wash liquor separation from wet nitrocellulose fibers
• Controlled wet cake handling in nitrocellulose processing lines

The separation result depends on fiber length, cake permeability, slurry concentration, wettingliquid, viscosity, screen opening, feed stability, and safety configuration.

Wet nitrocotton handling is fundamentally different from ordinary salt or chemical crystal dewatering. Nitrocellulose can become dangerous if it dries improperly or is exposed to heat, sparks, friction, impact, or incompatible conditions. Safety data sources commonly warn that dry nitrocellulose may explode under heat, flame, friction, or shock, and that wetting agents should not be allowed to evaporate.

If the dehydration system is not properly designed, the plant may face:

• Unsafe over-dewatering risk
• Static electricity accumulation
• Heat build-up around moving parts
• Leakage of hazardous wet material
• Fiber build-up inside the machine
• Screen blockage and uneven cake discharge
• Unstable wet cake moisture
• Higher cleaning and maintenance risk
• Inadequate protection for operators and surrounding equipment

A safety-interlocked pusher centrifuge should therefore focus on controlled dehydration, stable wet discharge, sealed operation, static control, monitoring, and process-safety integration.

Wet nitrocotton slurry enters the centrifuge through the feed system and is distributed onto the rotating screen basket.

Under centrifugal force, free liquid passes through the screen openings and is collected as filtrate. Wet nitrocotton fibers are retained on the screen surface and form a wet fibrous cake.

The pusher mechanism moves the wet cake forward step by step. During this movement, part of the free liquid is removed, while the material remains within the controlled wet handling range defined by the project safety design.

Finally, the wet nitrocotton cake is discharged continuously from the basket end and transferred to the next approved downstream section.

Under approved safety conditions, the system may help achieve:

• 30–60% reduction in free surface liquid from wet nitrocotton cake
• For many wet nitrocellulose classifications, wetting liquid content is often kept at ≥25% by mass, but the final limit must follow SDS and project safety rules.
• ±3–5% moisture fluctuation control when feed concentration and discharge conditions remain stable.
• 20–50% reduction in filtrate carryover compared with direct wet slurry transfer.
• ≤5–8°C monitored temperature rise target around key monitored zones, subject to project safety design.
• Continuous discharge with temperature, vibration, load, and abnormal discharge monitoring, plus alarm or shutdown logic.

Final performance must be confirmed according to nitrocotton grade, wetting medium, fiber behavior, safety classification, and local regulations.

To evaluate a suitable centrifuge for wet nitrocotton dehydration, please provide:

• Material name: nitrocotton / nitrocellulose
• Wetting medium or process liquid
• Approved wet handling range
• Feed slurry concentration
• Fiber size or fiber morphology
• Solids content
• Liquid composition
• Liquid viscosity
• Feed temperature
• Required throughput
• Target wet cake condition defined by safety team
• Existing upstream washing or slurry process
• Downstream wet cake handling process
• Site hazardous-area classification
• Required explosion-protection standard
• Grounding and anti-static requirements
• Temperature monitoring requirement
• Vibration monitoring requirement
• Cleaning / flushing requirement
• Preferred contact material
• Local safety and compliance requirements

If you have qualified project opportunities involving wet nitrocotton handling, wet nitrocellulose dehydration, or safety-sensitive solid-liquid separation systems, Peony can support equipment selection and customized configuration.

We support model selection, safety-oriented configuration review, equipment manufacturing, screen segment customization, installation guidance, spare parts, and after-sales service.

Send us your material condition, wetting medium, throughput, fiber behavior, process liquid, safety classification, and downstream handling requirement. Our team will help evaluate whether a safety-interlocked pusher centrifuge is suitable for your process.
