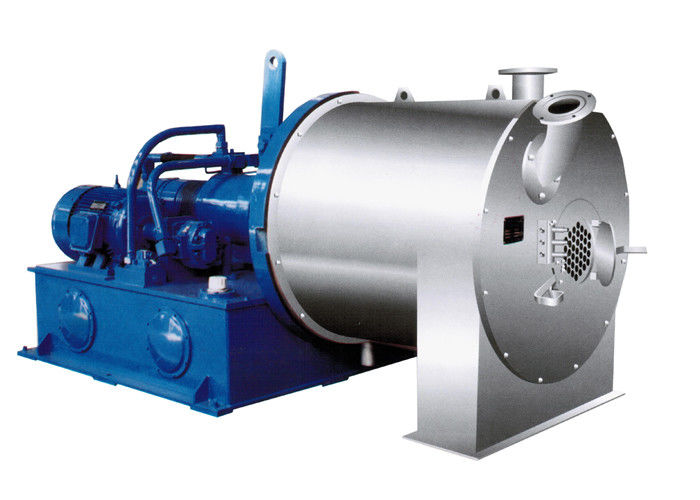

Safety-Control Pusher Centrifuge for Nitrate Crystal Dewatering

Pusher Centrifuge for Nitrate Crystal Dewatering is designed for continuous solid-liquid separation, mother liquor removal, and optional cake washing of nitrate crystals in inorganic chemical and crystallization production lines.

Nitrate crystal slurry may come from evaporation crystallization, cooling crystallization, reaction crystallization, or salt recovery systems. The slurry usually contains nitrate crystals, mother liquor, dissolved salts, fine particles, and residual process liquid.

A pusher centrifuge removes free liquid through centrifugal filtration and continuously discharges dewatered nitrate crystal cake before drying, cooling, screening, or packaging.

• Sodium nitrate crystal dewatering
• Potassium nitrate crystal dewatering
• Calcium nitrate crystal dewatering
• Nitrate crystal slurry solid-liquid separation
• Mother liquor separation after nitrate crystallization
• Nitrate crystal cake washing and dewatering
• Wet nitrate crystal discharge before drying
• Nitrate crystal handling before cooling, screening, or packaging
• Continuous nitrate salt production line integration
• Nitrate mother liquor and wash liquor collection

The actual separation result depends on nitrate type, crystal size, slurry concentration, mother liquor composition, liquid viscosity, screen opening, washing requirement, and safety conditions.

Nitrate salts are different from many common inorganic salts because some nitrate materials may have oxidizing properties or stricter handling requirements.

If the dewatering stage is not properly designed, the plant may face:

• High mother liquor carryover
• Higher wet cake moisture before drying
• Unstable dryer or cooler feeding
• Higher soluble impurity carryover
• Fine crystal loss through unsuitable screen openings
• Crystal build-up or screen blockage
• Product caking during storage or packaging
• Higher cleaning and maintenance frequency
• Safety risk caused by unsuitable material, contamination, or process conditions

A pusher centrifuge helps remove mother liquor continuously while maintaining stable nitrate crystal cake discharge. When product washing is required, washing nozzles can be added to reduce residual mother liquor or soluble impurities.

Nitrate crystal slurry enters the centrifuge through the feed pipe and is evenly distributed onto the rotating screen basket.

Under centrifugal force, mother liquor passes through the screen openings and is collected as filtrate. Nitrate crystals are retained on the screen surface and form a filter cake.

The pusher mechanism moves the nitrate crystal cake forward step by step. During this movement, the cake continues to lose free liquid.

If product washing is required, wash liquid can be sprayed onto the cake to reduce residual mother liquor or soluble impurities.

Finally, the dewatered nitrate crystal cake is discharged continuously from the basket end and sent to the dryer, cooler, screening machine, packaging section, or next process stage.

Under suitable feed and operating conditions, the system can typically help achieve:

• Better control of nitrate mother liquor carryover before drying
• 4–12% wet cake moisture for many well-formed nitrate crystals
• 30–60% reduction in residual mother liquor when cake washing is properly applied
• 90–98% retention of target-size nitrate crystals when the screen opening is matched with nitrate crystal size distribution.
• More stable feed to low-temperature or controlled-temperature drying sections
• Reduced risk of localized wet spots, crystal build-up, and uneven drying, which may affect nitrate product stability during downstream handling.
• Improved separation of mother liquor and wash liquor
• 8–24 hours/day continuous operation

Final performance depends on nitrate type, crystal size distribution, slurry concentration, mother liquor composition, oxidizing property, temperature control, screen opening, washing ratio, material compatibility, and operating parameters.

To recommend a suitable pusher centrifuge for nitrate crystal dewatering, please provide:

• Nitrate material name
• Processing capacity
• Feed slurry concentration
• Solids content
• Crystal size distribution
• Crystal shape
• Mother liquor composition
• Mother liquor viscosity
• Feed temperature
• pH or corrosion condition
• Oxidizing or safety-sensitive properties
• Target wet cake moisture
• Cake washing requirement
• Required product purity or impurity limit
• Filtrate and wash liquor collection requirement
• Existing upstream crystallizer or reactor
• Downstream dryer, cooler, screening machine, or packaging system
• Required operating hours per day
• Site voltage and control preference
• Preferred material of construction
• Required screen slot size, if known
• Site safety or compliance requirements

If you have customer resources or project opportunities in nitrate salt production, inorganic crystal dewatering, chemical crystallization, or solid-liquid separation systems, Peony welcomes cooperation.

We support distributors, agents, and project partners with model selection, process advice, customized configuration, equipment manufacturing, installation guidance, spare parts, screen segment customization, and after-sales service.

Send us your nitrate type, capacity, crystal size, solids content, mother liquor composition, safety requirement, and target cake moisture. Our team will help evaluate the suitable nitrate crystal dewatering solution.
