PPSBD Shaking-Bag Scraper Bottom Discharge Centrifuge

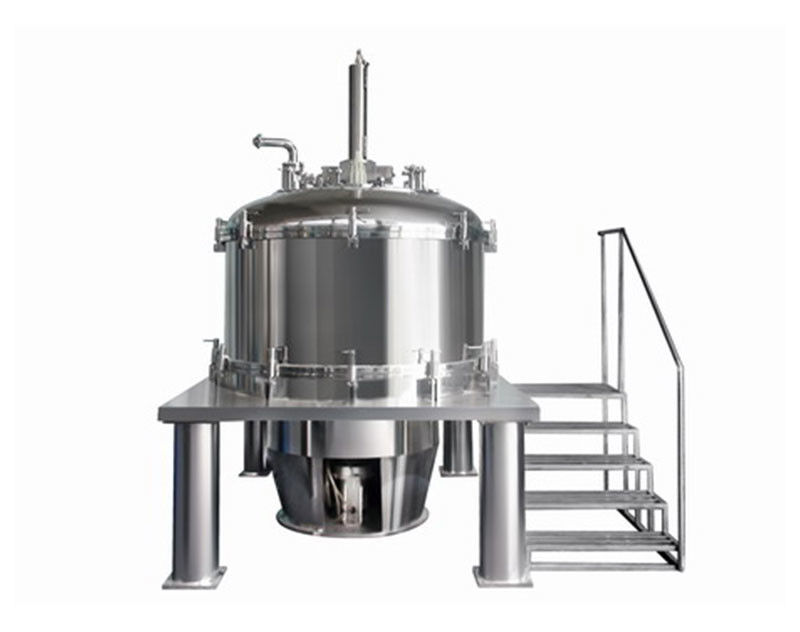

1200KG Shaking Bag Scraper Bottom Discharge Centrifuge Cylinder Driving
Working Principle
During the process of discharge, the scraper acts, under the impact of it most products are discharge through the blanking hole on the bottom of drum to the outside.
The remnant product layer will be removed because of oscillation effect by the influence of oscillation effect by the iufluence of automatic shaking-bag mechanism inside the drum.
Driven by cylinder, it can drive the bottom edge of the filter bag to move up and down rapidly, which can make the filter bag shake and completely remove the residual material layer.
A special material blocking mechanism is set between the bottom of the lifting bag cover and the discharging hole. Practice has proved that the material can be effectively blocked from drilling into the back of the filter cloth during the bag pulling operation, and the scraper will not damage the filter cloth.
Pull-bag cylinder and spindle pulley rotate synchronously, without relative motion or vulnerable parts.
Technical Parameter
| Model | PPSBD-800 | PPSBD-1000 | PPSBD-1250 | PPSBD-1350 | PPSBD-1400 | PPSBD-1600 | PPSBD-1680 | PPSBD-1800 |
| Loading capacity(Kg) | 100 | 210 | 400/520 | 534 | 672 | 1000/870 | 1125 | 1200 |
| Max. Speed(r/min) | 1500 | 1200 | 1000/1200 | 1200 | 1150 | 850 | 850 | 800 |
| Maximum Separating factor | 1007 | 805 | 698/1006 | 1086 | 1033 | 646 | 646 | 645 |
| Motor power(Kw) | 7.5 | 15 | 18.5/22 | 30 | 30 | 37 | 37 | 55 |
Main Characteristics
1. Automatic frequency speed control.
2. It has all advantages of common scraper centrifuge.
3. Full-automatic operation for shaking bag falling off and reset.
4. The filter bag can be moved up and down inside the drum to produce oscillation effect and remove the remnant filter cake thoroughly.
5. Big clamshell or whole shell reversible type are achievable according to users demands.
6. The automatic residual cakes removing device is optional (have owned the national patent).
Driving Method
1. Internal cylinder type:The cylinder driving the pulling-bag is positioned directly below the main shaft pulley and is directly connected with the pull rod.
2. External cylinder type: The cylinder that drives the bag pulling is set at the side of the bearing seat, and is connected with the bag pulling shaft through the connecting rod.
Advantages
1)Compact structure
2)Simple and tidy appearance
3)Convenient replacement of belt
4)Fast-bag-pulling speed
