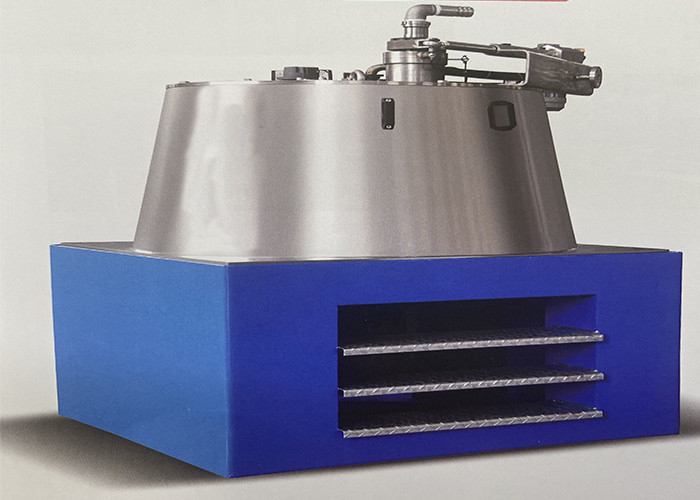

Industrial Continuous Centrifuge Separator 11000L/H For Drading System

Product Details

Place of Origin: China

Brand Name: Peony

Certification: ISO

Model Number: PDSZ

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD20500-92000

Packaging Details: Standard wooden case

Delivery Time: 60-75 days after down payment

Payment Terms: TT,.LC, Western Union

Supply Ability: 80 sets per month

Get Best Price
Contact Now
Specifications
Highlight:

Industrial Continuous Centrifuge Separator

,

11000 L/h Centrifuge Separator

,

Centrifuge Separator For Drading System

Application:
Ceramics, Coatings, Plastics,compounds, Fibers, Films, Pigments And Abrasionmaterials
Operation:
Automatic Continuous
Capacity:
1500L/h-11000L/h
Discharge Type:
Self-cleaning
Motor Power:
7.5 Kw-20kw
Bearing:
SKF
Item:
The Mechanical Separation Of A Particle Spectrum Suspended In A Liquid Into Two Groups
Product Name:
Industrial Continuous Centrifuge Separator For Drading System
Keyword1:
Drading System
Keyword2:
Fine Grinding Or Made Bychemical Method
Application:
Ceramics, Coatings, Plastics,compounds, Fibers, Films, Pigments And Abrasionmaterials
Operation:
Automatic Continuous
Capacity:
1500L/h-11000L/h
Discharge Type:
Self-cleaning
Motor Power:
7.5 Kw-20kw
Bearing:
SKF
Item:
The Mechanical Separation Of A Particle Spectrum Suspended In A Liquid Into Two Groups
Product Name:
Industrial Continuous Centrifuge Separator For Drading System
Keyword1:
Drading System
Keyword2:
Fine Grinding Or Made Bychemical Method
Description
Industrial Continuous Centrifuge Separator 11000L/H For Drading System

Industrial Continuous Centrifuge Separator For Drading System

Process Overview

The modern society uses more and more ultrafinematerials, such as ceramics, coatings, plastics,compounds, fibers, films, pigments and abrasionmaterials, between 0.1 and 5 micrometers. Such particles,the size of raw materials and other preparation ofmaterials can be made by fine grinding or made bychemical method is very expensive and not environmentalprotection, but the preparation method of the wet grindinggreatly increases the cost of production and operating

costs.

Industrial Continuous Centrifuge Separator 11000L/H For Drading System 0



Range of Application

The grading system is suitable for preciseseparation of fine material of rough particles, the effect ofthe separation depends on the processing materials ofsolid content, viscosity, density and particle sizedistribution, and the performance of the equipment suchas centrifugal force, the design of the sizing chamber, andso on. The special rotor design of our company canprovide the grading effect of smooth and low turbulence,which is necessary for effective grading.

The grading system is in operation without theuse of dispersants.

Drum Diameter 500mm
The length of drum 620mm
Turn the drum up speed 2400 r/min
Turn the separation factor 1610G
Processing 500-1500l/h
Main motor 15kw
Overall dimensions(lengthXwideXheight) 1300X1300X2085 mm

Industrial Continuous Centrifuge Separator 11000L/H For Drading System 1

Product Features

The term 'classifying' defines the mechanical separation of a particle spectrum suspended in a liquid into two groups.

The separation is based on physical effects.

Due to its viscosity, the slurry adheres to the rotor wall and rotates at approximately the same speed. Subsequently, theliquid and the suspended solids particles are drawn by the centrifugal forces, working on them, to the classifying rotor wall anda parabolic liquid level is forming under the effect of acceleration due to gravity and centrifugal force.

Industrial Continuous Centrifuge Separator 11000L/H For Drading System 2



At increased speed, with an annular classifying rotor lid, the slurry, in borderline case, is available in form of a liquidcylinder. Here flow forces in the lower Reynolds' number range are exerted on the solids particles suspended in the liquid,i.e. in laminar flow.

All in all, the particles are therefore subjected to directed total forces diagonal to the wall, the force deflection angle a isdecreasing as the volume increases, so that only the finest particles reach the top classifying rotor rim, while all others settleon the classifying rotor wall.

Industrial Continuous Centrifuge Separator 11000L/H For Drading System 3



Certification

Industrial Continuous Centrifuge Separator 11000L/H For Drading System 4



Guarantee

Peony Centrifuge has been dedicated to producing machinery and types of equipment and carrying out facility construction, pursuing the best quality and producing the best product at the same time.
We are committed to rewarding you with better quality in return for our interest in and faith.
We will do our utmost for one more stepping forward, based on our infinite services and trust in customers.



Our service

1. 12 months guarantee period from machine arriving date.

2. Abundant spare parts in stock are available to provide.

3. Our technicians could be dispatched for overseas service.

4. 7*24 hours technical consultation.

5. Your workers could get trained both in our factory and yours.

6. Routine tracing till the machine work properly will be done timely.

7. We will remind you to do the normal maintenance.

8. Your suggestions or any comments & reflection would be treated as a priority.

9. Marketing team will visit you during our visit to your country if you require.
