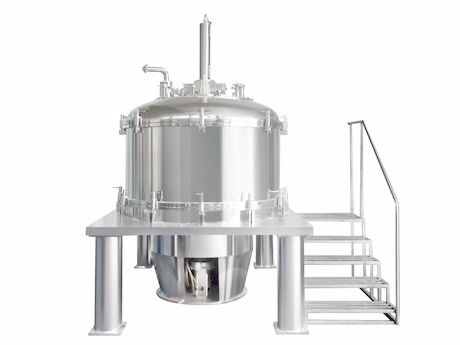

Automatic stainless steel GMP standard shaking bag centrifuge
Working principle
During the process of discharging, the scraper aacts, under the impact of it most products are discharged through the blanking hole on the bottom of drum to the outside. The remnant product layer will be removed because of oscillation effect by the influence of automatic shaking-bag mechanisum insie the drum.
Main Characteristics
1. Automatic freqnency speed control.
2. It has all advantages of common scraper centrifuge.
3. Full-automatic operation for shaking bag falling off and reset.
4. The filter bag can be moved up and down inside the drum to produce oscillation effect and remove the remnant filter cake thoroughly.
5. Big chamshell or whole shell reversible type are achievable according to users' demands.
6. The automatic residual cakes removing device is optional(have owned the national patent).
Main technical parameter
| Model | PPSBD100 | PPSBD210 | PPSBD400/520 | PPSBD534 | PPSBD672 | PPSBD1000/870 | PPSBD1125 | PPSBD1200 |
| Drum diameter(mm) | 800 | 1000 | 1250 | 1350 | 1400 | 1600 | 1680 | 1800 |
| Drum Height(mm) | 400 | 500 | 500/630 | 630 | 700 | 800/720 | 740 | 800 |
| Drum volume(L) | 80 | 165 | 310/400 | 445 | 560 | 800/720 | 900 | 1000 |
| Loading capcity(kg) | 100 | 210 | 400/520 | 534 | 672 | 1000/870 | 1125 | 1200 |
| Max. speed(r/min) | 1500 | 1200 | 1000/1200 | 1200 | 1150 | 850 | 850 | 800 |
| Max. separating factor | 1007 | 805 | 698/1006 | 1086 | 1033 | 646 | 646 | 645 |
| Motor power(kw) | 7.5 | 15 | 18.5/22 | 30 | 30 | 37 | 37 | 55 |
| Size(include shock absorber)mm | 1700x1400x2064 | 2100x1600x2200 | 2300x1800x2500 | 2600x2000x2900 | 2600x2000x3200 | 3000x2400x3510 | 3000x2400x3100 | 3230x2630x3850 |
| Weight(kg) | 2100 | 3800 | 5600 | 6000 | 6500 | 12000 | 12500 | 16200 |
Guarantee
Peony Centrifuge has been dedicated to producing machinery and equipments and carrying out facility construction, pursuing the best quality and producing the best product at the same time.We are committed to reward you with a better quality in return for our interest in and faith toward.We will do our utmost for one more stepping forward, based on our infinite services and trust to customers.
Our services
1. 12 months guarantee period from machine arriving date.
2. Abundant spare parts in stock are available to provide.
3. Our technicians could be dispatched for overseas service.
4. 7*24 hours technical consultation.
5. Your workers could get trained both in our factory and yours.
6. Routine tracing till the machine work properly will be done timely.
7. We will remind you to do the normal maintenance.
8. Your suggestions or any comments & reflection would be treated in priority.
9. Marketing team will visit you during our visit in your country if you require.
Our products are sold all over the world, you can rest assured.
