Self Cleaning Beer Yeast Disc Stack Centrifuges Separator For Clarification

Self Cleaning Beer Yeast Disc Stack Centrifuges Separator For Clarification

  • High Light

    Beer Yeast Disc Stack Centrifuges

    ,

    Self Cleaning Disc Stack Centrifuges

    ,

    Beer Yeast disk stack separator

  • Application
    Bear Yeast Brewery Processing
  • Capacity
    500-1000/h
  • RPM
    11200rpm
  • Pressure Of Feeding
    ≤0.2MPa
  • Starting Mode
    Friction Startup
  • N.W.
    730kg
  • Operation
    Automatic Continuous
  • MOC
    0Cr13 + SS304
  • Control Box
    With
  • Product Name
    Self Cleaning Beer Yeast Disc Centrifuge For Clarification
  • Place of Origin
    China
  • Brand Name
    Peony
  • Certification
    ISO
  • Model Number
    PDSB
  • Minimum Order Quantity
    1 set
  • Price
    USD32000/SET FOB SHANGHAI
  • Packaging Details
    Standard export packing
  • Delivery Time
    60-90 days after down payment
  • Payment Terms
    TT,.LC, Western Union
  • Supply Ability
    100 sets per month

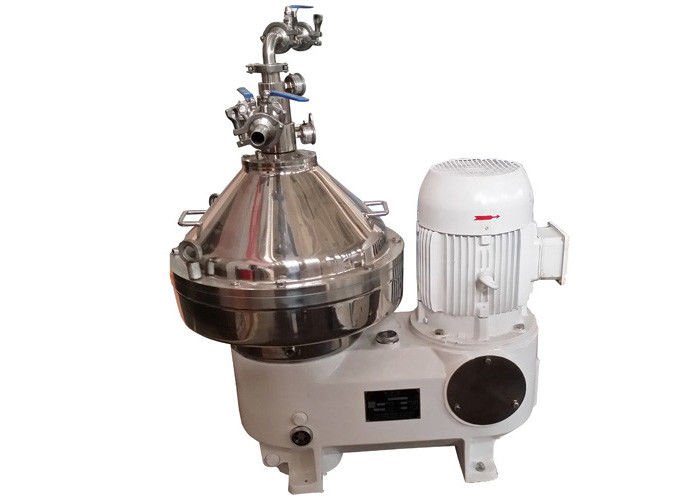

Self Cleaning Beer Yeast Disc Stack Centrifuges Separator For Clarification

Self Cleaning Beer Yeast Disc Centrifuge For Clarification





Structure Features:



Model PDSB-5000 separator is the newest pharmacy separator, mainly used in the industry of Chinese traditional medicine and chemical industry, etc. This centrifuge is also mainly used in breweries for the separation of yeast and clarification of beer. The liquid seal technology may functionally prevent from loss of carbon dioxide and avoid the mixing of air during the separating beer. The model is also used to separate similar materials (e.g. Juice, beverage, etc.)
The machine adopts automatic control and has the advantages of high efficiency, low material consumption, convenient operation, and economic maintenance cost. It adopts a small piston structure for gaining variable discharging capacity, and PLC controls both partly and fully discharging in order to get rid of sediment. The clear liquid is pumped out by a centripetal pump, the sludge is discharged automatically and partly. The machine is one kind of rotary machine with high speed. After accurate dynamic balancing, it can run for a long time with low vibration, safety, and security. It has interlayer refrigeration.



Self Cleaning Beer Yeast Disc Stack Centrifuges Separator For Clarification 0

Self Cleaning Beer Yeast Disc Stack Centrifuges Separator For Clarification 1


Dimensions:

Self Cleaning Beer Yeast Disc Stack Centrifuges Separator For Clarification 2


Main Technical Specification:

Water flux 5000L/h
Processing capacity 1000-3000L/h
Maximum speed 8500 rpm
Separation factor ≥10000g
The effective working inner diameter of the bowl 300mm
Equivalent settlement area 22.5X107CM
Slagging method Small valve for slagging
Light liquid outlet pressure ≤0.2MPa
Start method Frequency conversion start
Separator net weight 614 kg
Dimensions (length X width X height) 1120X850X1082mm
Motor power 7.5 kW/50Hz/380V
Water seal pressure 0.2-0.3MPa, oxygen-free water
CIP Use fermentation CIP 2-3% alkali at 85℃ for 30min+85℃water for 30min
Centrifugal oxygenation* ppb ≤5



Note: Centrifugal oxygenation*: This data is based on the carbon dioxide content of the fermentation broth to be centrifuged above 0.45%, the purity of the carbon dioxide used in the gas seal is above 99.99%, and the water seal is anaerobic water. The standard instrument PENTAIR HAFFMANS o-DGM dissolved oxygen meter is used to detect As a result, the testing instrument needs to be maintained regularly in accordance with the manufacturer's requirements.
