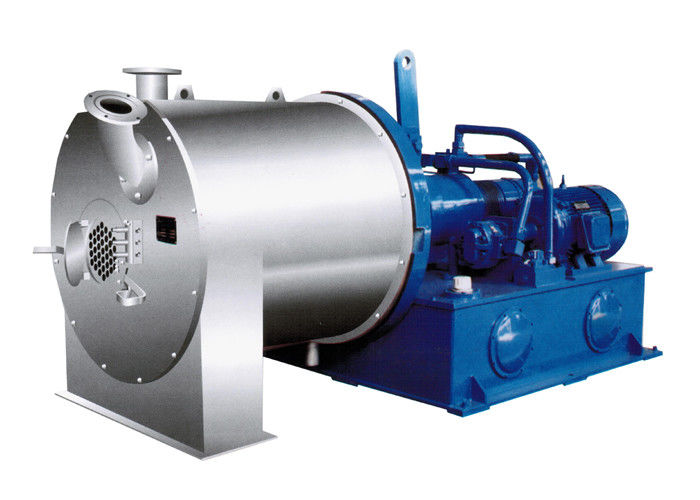

Cake-Washing Pusher Centrifuge for Copper Sulfate Dewatering

Cake-Washing Pusher Centrifuge for Copper Sulfate Crystal Dewatering is designed for continuous dewatering, mother liquor separation, and cake washing of copper sulfate crystals in chemical crystallization and copper salt production lines.

Copper sulfate crystals, especially copper sulfate pentahydrate, are usually produced through crystallization, evaporation concentration, cooling crystallization, or chemical reaction processes. After crystallization, the crystal slurry often contains copper sulfate crystals, mother liquor, dissolved impurities, residual acid or process solution, and fine crystal particles.

A cake-washing pusher centrifuge removes free liquid through centrifugal filtration and allows washing liquid to contact the crystal cake during transport. This helps reduce residual mother liquor and supports more stable downstream drying, cooling, screening, or packaging.

• Copper sulfate crystal dewatering
• Copper sulphate crystal dewatering
• Copper sulfate pentahydrate crystal separation
• CuSO₄·5H₂O crystal dewatering
• Mother liquor separation after crystallization
• Copper salt crystal washing and dewatering
• Wet crystal cake discharge before drying
• Chemical crystal solid-liquid separation
• Crystallizer discharge slurry treatment
• Continuous copper salt production line integration

The actual separation result depends on crystal size, slurry concentration, mother liquor composition, acidity, liquid viscosity, screen opening, washing method, and operating parameters.

Copper sulfate crystals often require more than simple dewatering. If mother liquor remains on the crystal surface, it may affect downstream product quality, drying behavior, appearance, and storage stability.

If washing and dewatering are not properly controlled, the plant may face:

• Higher residual mother liquor in the crystal cake
• More soluble impurities carried into the final product
• Uneven crystal surface quality
• Higher moisture before drying
• Higher drying energy consumption
• Product agglomeration or caking during storage
• Unstable feeding to dryer or cooler
• Product loss through unsuitable screen opening
• Frequent cleaning caused by fine crystal build-up

Under suitable feed and operating conditions, the system can typically help achieve:

• 4–12% wet cake moisture for many well-formed copper sulfate crystals
• 50–85% reduction in free mother liquor carryover before drying compared with untreated wet slurry.
• 95–99.5% copper sulfate crystal recovery when the screen opening is properly matched with particle size distribution.
• 30–70% reduction of residual mother liquor in the crystal cake when cake washing is properly applied.
• 15–40% reduction in downstream dryer load
• More stable washed crystal cake discharge
• Improved control of soluble impurity carryover through separated mother liquor and wash liquor collection.
• 8–24 hours/day continuous operation

Final performance depends on copper sulfate crystal size, particle shape, slurry concentration, mother liquor composition, acidity, viscosity, screen opening, washing ratio, centrifugal force, and operating parameters.

To recommend a suitable pusher centrifuge for copper sulfate crystal dewatering, please provide:

• Processing capacity
• Feed material name: copper sulfate, copper sulphate, or copper sulfate pentahydrate
• Feed slurry concentration
• Solids content
• Crystal size distribution
• Crystal shape
• Mother liquor composition
• Acidity or pH value
• Mother liquor viscosity
• Feed temperature
• Target wet cake moisture
• Cake washing requirement
• Required product purity or impurity control target
• Filtrate and wash liquor collection requirement
• Existing upstream crystallizer or washing system
• Downstream dryer, cooler, screening machine, or packaging system
• Required operating hours per day
• Site voltage and control preference
• Preferred material of construction
• Required screen slot size, if known

If you have customer resources or project opportunities in copper sulfate production, copper salt processing, chemical crystallization, crystal washing, or solid-liquid separation systems, Peony welcomes cooperation.

We support distributors, agents, and project partners with model selection, process advice, customized configuration, equipment manufacturing, installation guidance, spare parts, screen segment customization, and after-sales service.

Send us your material name, capacity, crystal size, solids content, mother liquor composition, washing requirement, and target cake moisture. Our team will help evaluate the suitable copper sulfate crystal dewatering solution.
