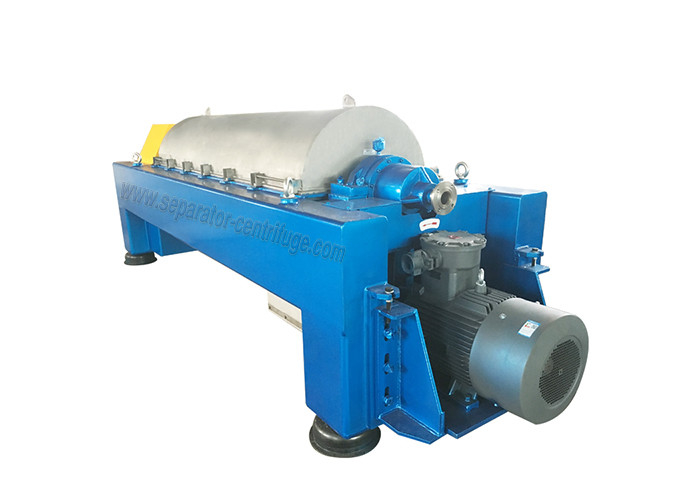

Automatic Vegetable Oil / Food Centrifuge 2 Phase Separation Solid Bowl Decanter Centrifuge

Product Details

Place of Origin: China

Brand Name: Peony

Certification: ISO

Model Number: PDC-W

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD20000-100000/SET FOB SHANGHAI

Packaging Details: Standard wooden case

Delivery Time: 75-90 days after down payment

Payment Terms: T/T, L/C, Western Union

Supply Ability: 60sets per month

Get Best Price
Contact Now
Specifications
Highlight:

perforated basket centrifuge

,

solid bowl centrifuge

Product Name:
Automatic Vegetable Oil / Food Centrifuge 2 Phase Separation Solid Bowl Decanter Centrifuge
Diameter(mm):
250-650mm
Operation:
Automatic Continuous
Application:
Liquid-solid Separation
MOC:
SS
Bearing:
SKF, NSK As Optional
Motor:
Double
Control Box:
With
Product Name:
Automatic Vegetable Oil / Food Centrifuge 2 Phase Separation Solid Bowl Decanter Centrifuge
Diameter(mm):
250-650mm
Operation:
Automatic Continuous
Application:
Liquid-solid Separation
MOC:
SS
Bearing:
SKF, NSK As Optional
Motor:
Double
Control Box:
With
Description
Automatic Vegetable Oil / Food Centrifuge 2 Phase Separation Solid Bowl Decanter Centrifuge

Vegetable Oil / Food Centrifuge 2 Phase Separation Decanter Centrifuge Screw Discharge Centrifuge





Description:

Decanter centrifuges, also called solid bowl centrifuges, are generally designed as two-phase or three-phase machines and are extremely versatile. Taking advantage of the principle that the liquid and solid phases, with different densities and mutually insoluble in the mixed liquid, gain different sedimentation speeds in the centrifugal force field or gravity force field, separating stratification or causing the solid particles in the liquid to deposit can be achieved.

Automatic Vegetable Oil / Food Centrifuge 2 Phase Separation Solid Bowl Decanter Centrifuge 0



Competitive Advantages:

  •  High rotation speed, high G force, big length-diameter ratio.
  •  Big capacity
  •  Low vibration, low noises strong afford capacity
  •  Multiple protecting apparatus, reliable running
  •  Reliable gearbox system
  •  Corrosion-resistant and resistant key parts
  •  Flexible drive and speed adjust mode
  •  Famous and reliable electrical components



Separation principle

In the gravity force field or centrifugal force field, the liquid phase and the solid phase with different densities and mutually insoluble in the mixed liquid, respectively gain different sedimentation speeds, and thus separate and stratify. In the gravity force field it is called gravity separation, while in the centrifugal force field, it is called centrifugal separation.

The machine could deal with material whose range of concentration is large, small size, and widely distributed. Solid particles are less than 0.5mm as rigid particles and less than 10mm as non-rigid particles, the machine can be effectively treated. The decanter centrifuge is applicable to the separating of suspension containing

solid-phase granules with a diameter greater than 0.005 mm and with a concentration being 2~40%.

  Automatic Vegetable Oil / Food Centrifuge 2 Phase Separation Solid Bowl Decanter Centrifuge 1

1. Feeding pipe   2. Discharge screw   3. Drum   4. Casing   5. Differential mechanism



Applications:

Animal protein

Fish oil and fishmeal by-product processing

Surimi processing

Soybean protein, peanut protein, corn protein, beer yeast.bone protein, bone blue, blood power dewatering, etc.

Vegetable protein

Extraction from soybeans, oil seeds, and some crops

Edible oil/soybean oil/rapeseed oil/sunflower oil separation

Clarification of palm oil, olive oil, and pressed bean and seed oil

Juice

Extraction from fruit, citric acid, and coconut milk

Starch processing

Starch washing, dewatering, and clarification based on wheat, maize, tapioca, cassava, and potatoes



Specifications:

Model

Drum

G-force

Capacity

(m3/h)

Max solid

discharge

(m3/h)

Power

(kw)

Weight

(kg)

Overall size

(L×W×H)

(mm)

Diameter

(mm)

Speed

(rpm)

Length

(mm)

Length-to-diameter

 rate

PDC-10-W

250

5400

1000

4

4080

0.5~5

0.4

11/4

1000

2410 × 800 × 1080

PDC-12-4-W

300

4200

1200

4

3500

1~5

0.6

11/4

1200

2610 × 800 × 1080

PDC-12-4.5-W

300

4200

1350

4.5

3000

1~10

0.8

11/4

1400

2760 × 800 × 1080

PDC-14-W

355

4000

1600

4.5

3180

1~20

1.2

18.5/7.5

1800

3495 × 840 × 1180

PDC-16-W

400

3650

1800

4.5

3000

2~25

2

22/7.5

2500

3890 × 1020 × 1205

PDC-18-4.4-W

450

3200

2000

4.4

2600

3~35

2.8

30/11

3000

4297 × 1080 × 1385

PDC-18-4.8-W

450

3200

2150

4.8

2600

4~40

3

37/11

3200

4447 × 1080 × 1385

PDC-20-4-W

500

3000

2000

4

2500

5~45

3.2

37/11

3800

4330 × 1140 × 1470

PDC-20-4.5-W

500

3000

2250

4.5

2500

8~50

3.5

45/15

4000

4580 × 1140 × 1470

PDC-21-W

530

2900

2280

4.3

2500

15~65

5

55/15

5000

4924 × 1170 × 1540

PDC-23-W

580

2780

2500

4.3

2500

20~80

6.5

75/18.5

6500

5205 × 1270 × 1540

PDC-26-W

650

2500

2800

4.3

2270

25~110

8

75/18.5

7000

4300 × 1900 × 1350





Reference Drawing:


Automatic Vegetable Oil / Food Centrifuge 2 Phase Separation Solid Bowl Decanter Centrifuge 2

Automatic Vegetable Oil / Food Centrifuge 2 Phase Separation Solid Bowl Decanter Centrifuge 3





Guarantee:

Peony Centrifuge has been dedicated to producing machinery and types of equipment and carrying out facility construction, pursuing the best quality and producing the best product at the same time.
We are committed to rewarding you with better quality in return for our interest in and faith.
We will do our utmost for one more stepping forward, based on our infinite services and trust to customers.

Automatic Vegetable Oil / Food Centrifuge 2 Phase Separation Solid Bowl Decanter Centrifuge 4
