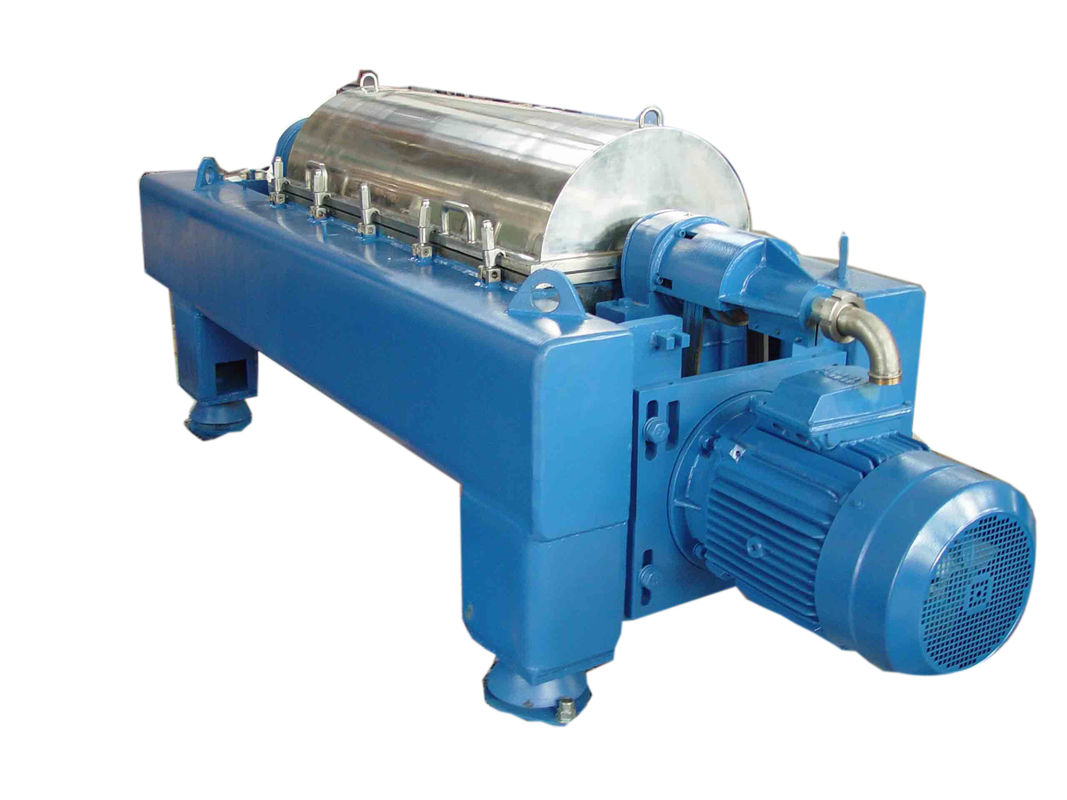

Horizontal Structure Full Automatic Drilling Mud Centrifuge from China

Horizontal Structure Full Automatic Drilling Mud Centrifuge from China

Products - Drilling Mud Centrifuge
  • High Light

    centrifuge wastewater treatment

    ,

    drilling mud decanter centrifuge

  • Application
    Drilling Mud, Oil Field
  • Operation
    Automatic Continuous
  • Conveyor
    Tiled
  • MOC
    SS
  • Bearing
    SKF, NSK As Optional
  • Motor
    Double
  • Control Box
    With
  • PLC
    Optional
  • Solid Discharge
    360 Degree
  • Place of Origin
    China
  • Brand Name
    Peony
  • Certification
    ISO
  • Model Number
    PDC, PNX
  • Minimum Order Quantity
    1 set
  • Price
    USD28000-128000/SET FOB SHANGHAI
  • Packaging Details
    Standard export package, polywood, fumigated wood, filmed
  • Delivery Time
    75-90 days after deposit
  • Payment Terms
    TT,.LC, Western Union
  • Supply Ability
    60 sets per month

Horizontal Structure Full Automatic Drilling Mud Centrifuge from China

  • Horizontal Structure Full Automatic Drilling Mud Centrifuge from China
  • Horizontal Structure Full Automatic Drilling Mud Centrifuge from China
  • Horizontal Structure Full Automatic Drilling Mud Centrifuge from China
Get Price Contact Now

Horizontal Structure Full Automatic Drilling Mud Centrifuge from China





Competitive Advantages

  • Automatic continuous operation
  • Water level adjustable
  • High efficiency and low power consumption
  • 360 degree solid discharge
  • PLC control
  • Screw conveyor: tiled.


Specifications



Model

Diameter

(mm)

Speed (rpm)

Length

(mm)

G-force

Capacity

(m3/h)

Main motor Power

(kw)

Assistant motor power

(kw)

Weight

(kg)

Overall Size

(L × W × H)

(mm)

PNX-414

355

4000

860

3175

1~10

18.5

7.5

2035

2765 × 920 × 1060

PDC-14

355

4000

1160

3175

1~15

22

7.5

2122

3065 × 920 × 1060

PNX-418

355

4000

1460

3175

1~25

22

7.5

2222

3365 × 920 × 1060

PDC-17-3

420

3600

1290

3042

1~20

22

7.5

2100

2931 × 990 × 1066

PDC-17-4

420

3600

1680

3042

2~35

22

7.5

2230

3331 × 990 × 1066

PDC-18-3.8

450

3500

1720

3080

4~40

37

11

3560

4100 × 1120 × 1239

PDC-18-4.4

450

3300

2000

2739

4~50

45

Hydraulic

3655

4000 × 1120 × 1239

PDC-20

500

3200

2000

2860

5~45

55

11

4213

4489 × 1160 × 1350

PDC-21

540

2800

2000

2366

5~50

55

15

5290

4587 × 1285 × 1368





















































Applications



Drilling mud is an integral part of most drilling operations,it is also called drilling fluid, there are some solids suspended in the fluid.



Peony Decanter Centrifuge can provide solid-liquid separation technology to your drilling mud application, enabling reuse of the material and more efficient and cost-effective disposal.We have our special design and collocation decanter centrifuge for oilfield and industrial solids control, drilling fluid / mud cleaning and process water treatment.



Horizontal Structure Full Automatic Drilling Mud Centrifuge from China 0





Reference Picture



Horizontal Structure Full Automatic Drilling Mud Centrifuge from China 1

Horizontal Structure Full Automatic Drilling Mud Centrifuge from China 2





Guarantee



Peony Centrifuge has been dedicated to producing machinery and equipments and carrying out facility construction, pursuing the best quality and producing the best product at the same time.
We are committed to reward you with a better quality in return for our interest in and faith toward.
We will do our utmost for one more stepping forward, based on our infinite services and trust to customers.
