Popular Calcium Chloride ( CaCl2 ) Dewatering Industrial Centrifuges Sulzer Echer Wyss
Popular Calcium Chloride ( CaCl2 ) Dewatering Industrial Centrifuges Sulzer EcherWyss
Description

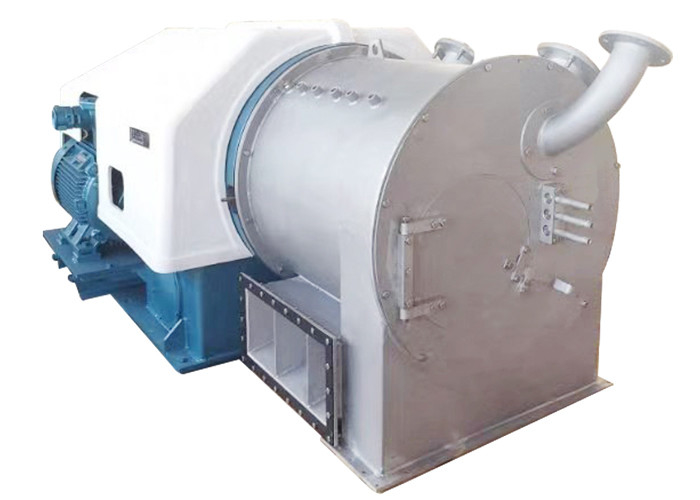

PP series centrifuge is a fully automatic and continuous filtering centrifuge used for solid-liquid separation in the kinds of industries. It has a unique design that minimizes moisture, impurity, and crystal breakage in the discharged cake can perform feeding, filtration, washing, and discharging in sequence at their full-speed running.
Features
Continuous operation with large capacity
Ideal washing effect
The low moisture content of cake
Less solid content loss and crystal broken
Suitable for abrasion filtering cake
Standards
1. Technology is higher than TB/T447-92, and adopt international standard, Germany standard, and Swiss Sulzer EcherWyss standard. The design, manufacture, material, test, and inspection are in accordance with the standard JB/T4063, JB/T447, and the effective latest version of national standard, industry standard and enterprise's standard.
2. The quality of all the provided equipment and material should be in accordance with the adopted rules and standards.
3. The whole set of equipment is tested and inspected as per the following standards:
- Choosing Rules for Welding Quality Grade N659
- Quality Grade After Welding N658
- Measuring and Calculating of Vibration Strength ISO3954
- Mechanical Balancing of Rotor ISO5406
- Balance Status Evaluating of Rotating Steel DVI2060
Technical parameters
| Model |
PP-25 |
PP-40 |
PP-50 |
PP-60 |
PP-85 |
PP-100 |
| Basket diameter (mm) |
200/251 |
290/360 |
438/500 |
560/630 |
738/820 |
920/1000 |
|
Stroke of the pusher mechanism
(times/min)
|
35-52 |
40-80 |
40-80 |
70-80 |
30-108 |
30-80 |
| Machine speed (rpm) |
3000 |
2500 |
2000 |
1360 |
1500 |
1300 |
| Operative oil pressure (Mpa) |
2.5 |
2.5 |
2 |
8 |
8 |
12 |
| The motor of the oil pump (kW) |
4 |
5.5-7.5 |
22 |
13-30 |
22-45 |
30-90 |
| Main motor (kW) |
7.5 |
11-15 |
37-45 |
55 |
45-100 |
55-132 |
| Output (t/h) |
~1.5 |
5-7 |
12 |
20 |
25-65 |
30-75 |
| Sieve slot |
To be decided |
| Operation temp. (°C) |
Below 105 |
Below 105 |
Below 105 |
Below 105 |
Below 105 |
Below 105 |
| Overall dimension (mm) |
2155*1320*950 |
2346*1090*1006 |
3660*1420*2078 |
3127*1700*1955 |
3990*2000*1530 |
4200*2400*2200 |
| Weight (kg) |
1275 |
2600 |
4400 |
4860 |
6250 |
8900 |
