Pharmaceutical Titanium Decanter Centrifuge for Calcium Hypochlorite Separation

Product Details

Place of Origin: China

Brand Name: Peony

Certification: ISO9001& ISO14001

Model Number: PDC

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD

Packaging Details: Standard wooden case

Delivery Time: 60days

Payment Terms: TT,LC, Western Union, MoneyGram, D/P, D/A

Supply Ability: 60sets per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    drilling mud decanter centrifuge, solid liquid centrifuge


Structure:	NX	MOC:	Titanium
Speed:	Inverter Control	Bearing:	SKF
Discharging Type:	Partial Discharge, Self-cleaning	Technical Service:	All Life Free Charge
Standard:	GB	Operation:	Continuous
Separation Phase:	2 Phase	Motor:	2

Structure:	NX
MOC:	Titanium
Speed:	Inverter Control
Bearing:	SKF
Discharging Type:	Partial Discharge, Self-cleaning
Technical Service:	All Life Free Charge
Standard:	GB
Operation:	Continuous
Separation Phase:	2 Phase
Motor:	2

Description

Pharmaceutical Titanium Decanter Centrifuge for Calcium Hypochlorite Separation

Pharmaceutical Titanium Decanter Centrifuge for Calcium Hypochlorite Separation

Application
Chemical: Calcium Hypochlorite
Food: Fruit and Vegetable juices, Starch, Protein, Molasses, Stillage
Oils and Fats: Fish oil, Gelatine
Environmental protection/Recycling: Drilling mud, Industrial wastewater, Municipal wastewater
Minerals: Graphite, Kaolin, Bentonite

Specifications

Model	Diameter (mm)	Bowl speed (rpm)	Length (mm)	G-force	Capacity (m3/h)
PNX409	250	5500	850	3493	0.2-2
PNX-414	355	4000	860	3175	1~10
PNX-416	355	4000	1160	3175	1~15
PNX-418	355	4000	1460	3175	1~25
PDC-1655	420	3000	1450	2113	10~30
PDC-17-4	420	3600	1680	3042	3~15
PDC-18-4.4	450	3300	2000	2739	10~20
PDC-20	500	3200	2000	2860	5~45
PDC-21	540	2800	2000	2366	15~50
PDC-24	620	3200	2480	3555	15~60
PDC-28HH	720	2200	2400	1975	15-80

Pictures

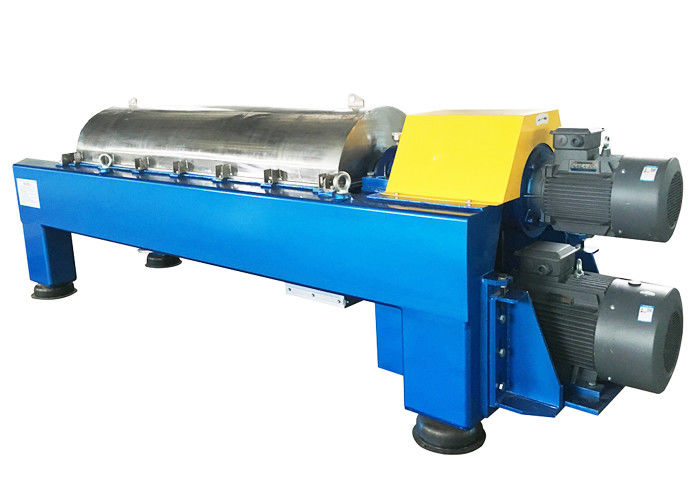

Pharmaceutical Titanium Decanter Centrifuge for Calcium Hypochlorite Separation 0

Decanter design
Type: 2- phase separation, 3- phase separation
Materials: use high-quality stainless steel for all product wetted areas.
Bearings: SKF brand. A special selection and arrangement of bearings provides for long life and exceptional reliability.
Wear protection: welded hard facing or spray coating, ceramic technology.

Gravity Separation
On account of difference in density, the mixed liquid in the container, after a period of time, is gradually divided into 2 layers. The heavy phase particle of the mixed liquid deposits to the bottom of the container, while the light phase one suspends to the upper surface. A rather distinctive dividing plane forms between the light and heavy phases. The separation speed is affected by the difference in density between the light and heavy phases that make up the mixed liquid. The larger the difference in density is, the faster the separation speed will be.

Competitive Advantages

Automatic continuous operation
Water level adjustable
Highest efficiency and lowest power consumption
PLC control
Screw conveyor full tiled.
Moc of Titanium
