High Performance Disc Stack Centrifugal Craft Beer Separation System
centrifuge filtration systems
,bag lifting centrifuge

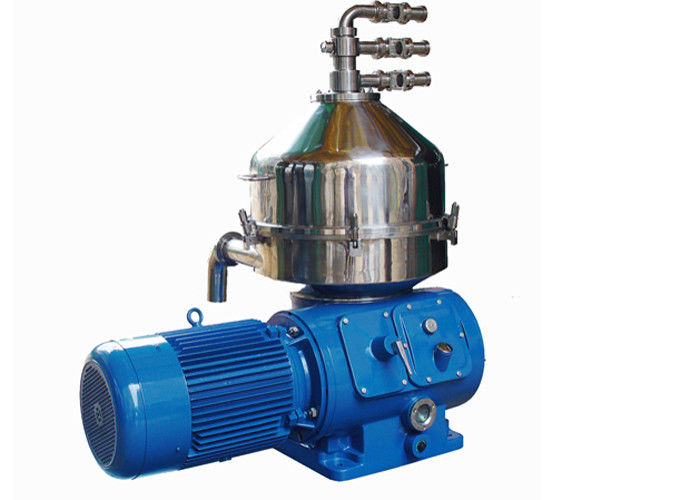

High performance disc stack centrifugal craft beer separation system
Introduction
Model PDSM-5000CN separator is mainly used in brewery for separation of yeast and clarification of beer. The liquid seal technology may functionally prevent from loss of carbon dioxide and avoid mixing of air during separating beer. The model is also used to separate similar material (e.g. Juice, beverage etc.)
The machine adopts small piston structure for gaining variable discharging capacity, and PLC control both partly and fully discharging in order to get rid of the sediment.
The clear liquid is pumped out by centripetal pump, the sludge is discharged automatically and partly.
The machine is one kind of rotary machine with high speed, After accurate dynamic balancing, it can run for long time with low vibration, safety and security.
The design, product and acceptance are conformed to the standard of JB/T8103.2 ‘ ’Disc Separator Part 2: Beer disc centrifuge’ ’.
Drawing of Pressure Keeping system
Technical parameter
| Discharge type | / | Variable capacity discharge |
| Rated capacity | Lit/hr | 1000-3000 |
| Outlet pressuer of clear liquid | Mpa | ≥0.1 |
| Motor power | Kw | 7.5 |
| Net weight | Kg | 614 |
| Overall dimension(L x W x H) | mm | 1120*850*1082 |
Intallation notice
1. For maintenance and repair, please leave enough space around the separator when install it.
2. The installation base should be firm and level.
3. All the pipes connecting with the separator should be flexible pipe.
4. The operation water of the separator must be soft water, the pressure of which is between 0.025 and 0.03Mpa.
Service
Peony Centrifuge has been dedicated to producing machinery and equipments and carrying out facility construction, pursuing the best quality and producing the best product at the same time. We are committed to reward you with a better quality in return for our interest in and faith toward. We will do our utmost for one more stepping forward, based on our infinite services and trust to customers.
