Product Details
Place of Origin: China
Brand Name: Peony
Certification: ISO
Model Number: PDSC-204SD
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD32000
Packaging Details: virgin coconut oil extraction machine + Film + Standard Export Wooden Case
Delivery Time: 20-60working days
Name: |
Virgin Coconut Oil Extraction Equipment |
RPM: |
11200 |
Capacity: |
<1000L/Hr |
Discharge: |
Self-cleaning (PLC Control) |
Starting Mode: |
Frequency Start-up |
Driving Mode: |
Belt Drive |
Bearing: |
SKF |
Noise: |
≤85dB（A） |
Name: |
Virgin Coconut Oil Extraction Equipment |
RPM: |
11200 |
Capacity: |
<1000L/Hr |
Discharge: |
Self-cleaning (PLC Control) |
Starting Mode: |
Frequency Start-up |
Driving Mode: |
Belt Drive |
Bearing: |
SKF |
Noise: |
≤85dB（A） |

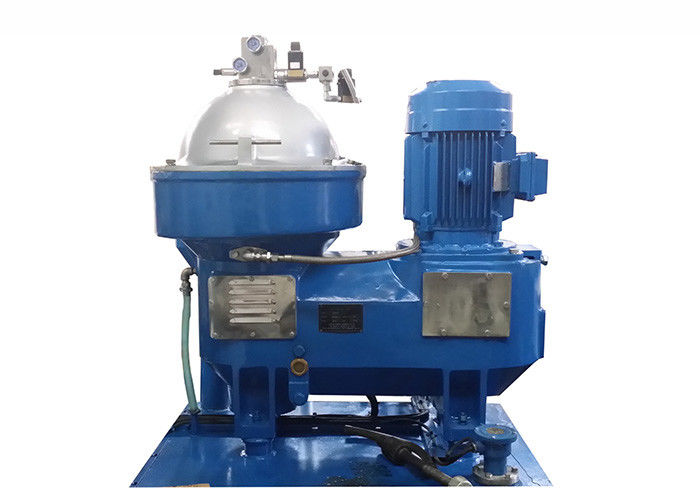

Food Machine Separator - Centrifuge Virgin Coconut Oil Extracting Equipment
Product overview:
1.This material of drum body, drum cover and valve is high strength stainless steel, the Moc of other
parts are all high quality stainless steel, the disc stack and separator shell employ SS304.
2.Drive structure support use SKF bearing, by employing optimal design to reduce the height of the
drum’s center of gravity. It can effectively lower the vibrational level of the whole separator, improve the
reliability of the equipment and increase the stability of the separator.
3. In the dismounting and maintenance, the parts of drum can be hoisted integrally, thus make the
dismounting of main lock ring more convenient, saving both time and labor, easy to install the drum.
4. The separator has a less vibration and more stability through price dynamic balance of the drum.
5.The separator adopts separation factor technology. It can separate product that is hard to separate,
meanwhile, the machine has light volume and use the small volume to get big capacity and high
separation efficiency.
6.The separator adopts advance belt drive, improving the reliability and maintainability of the separator,
and decreasing cost of spare parts.
Technical specification:
|
Capacity |
< 1000L/h |
|
|
Working diameter of bowl |
Φ230mm |
|
|
RPM |
11200rpm |
|
|
Discharge type |
Self-cleaning (PLC control) |
|
|
Vibration |
≤2.8mm/s |
|
|
Noise |
≤85dB(A) |
|
|
Starting Mode |
Frequency Startup |
|
|
Driving Mode |
Belt Drive |
|
|
N.W. |
371kg |
|
|
Dimension (L*W*H) |
930×750×1050mm |
|
|
Motor |
Power |
7.5kW |
Pictures:
Our company:
We have been dedicated to producing machinery and equipments and carrying out facility construction, pursuing the best quality and producing the best product at the same time.We are committed to reward you with a better quality in return for our interest in and faith toward.We will do our utmost for one more stepping forward, based on our infinite services and trust to customers.
