Product Details
Highlight:
Sugar Processing Top suspended centrifuge
,Top Suspended Centrifuge
,High Speed Suspended Centrifuge
Application:
Integrate Separating, Drying
Operation:
Automatic Continuous
Capacity:
1500L/h-11000L/h
Discharge Type:
Self-cleaning
Motor Power:
7.5 Kw-20kw
MOC:
SS304,SS316
Bearing:
SKF
Item:
High Potency Compounds, Pharmaceutical Output Stages, Highly Toxic Products
Product Name:
Multi Functions Horizontal Scraper Centrifuge Perforated Basket Solid Liquid Centrifuge For Sugar
Name:
China Centrifugal Separator Supplier For Energy-saving Steam Compressors In Chemical Industry
Keyword:
Industrial Centrifuge Machine
keyword1:
Horizontal Scraper Centrifuge
Product Description
Product Description

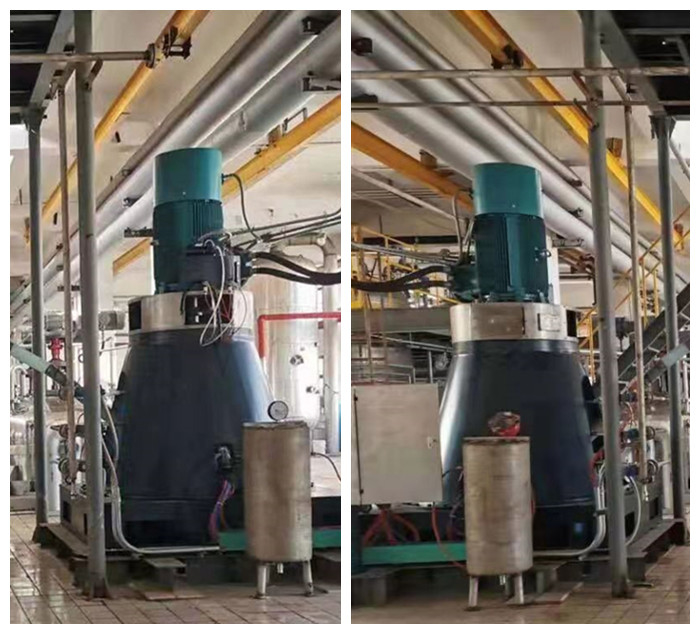

The top-suspended Motor Centrifuge is composed of drum, driving system, bearing seat, upper housing, out housing, lower shaft, scraper group and etc. Its structure adopts top located transmission system, vertical motor provide the driving of drum through the coupling directly and the drum is fixed on the lower end of the shaft.
Main Specification and parameters
If the solid grain is relatively fine with relatively dense texture. The drum can adopt cylindrical bucket structure. The products can be scraped off the drum wall through radial and axial movements of the scraper and discharged. It is "XJZ" model. If the solid grain is relatively rough with relatively sparse texture. The rotary drum adopts conical structure. From the low speed to zero speed, the products can be loosened by inertia and discharged by gravity. It is “XZ” model.
Working Principle
The motor drives drum to turn. When drum reaches feeding speed, the suspension products to be separated will enter into the drum on a high speed from the feeding pipe. Feeding will stop when the preset volume is reached. Then the speed of the drum will be raised for separating. Under the centrifugal force, the products will be filtered by filter cloth(filter screen). The liquid phase will be thrown through the rotary drum hole to the empty chamber and discharged through the liquid discharging pipe. The solid phase will be retained on the drum and form cylindrical filter cakes which can be washed. After the requirements for separating is met, the speed will be lowered for discharging. Housing of the drum moves downwards along the axial direction. The scraper device acts to scrape the filter cakes off the internal wall of the drum and discharge them from the discharging port on the bottom of the centrifuge.
Feature
Main Characteristic
1. The centrifuge adopts frequency motor driving and full-automatic repetitive operation. During the automatic repetitive operations, the optimized operation is realized through frequency stepless speed control so that the requirements of low speed discharging are met.
2. The centrifuge adopts dynamic or regenerative breaking to achieve obvious efficiency effects.
3. The electric control is realized by PLC. Time setting can be carried out for all working procedures and the real-time working status of each procedure can be displayed on the operation screen.
4. Product contact parts of centrifuge are made of austenitic stainless steel(according to users' requirements) to ensure cleanliness and sanitation during the production process.
5. The structure of centrifuge adopts compact structure and stable running.
6. Higher production capacity, automation and speed, better separation efficiency, lower noise and labor intensity.
Application
Application
The top-suspended centrifuge has a wide application range, like starch of fine granules and sugar of middle roughness granules. It is widely used for edible sugar, glucose, A-massecuite, dicalcium phosphate, monosodium glutamate, boric acid, borax, calcium carbonate, starch, potassium chlorate, gypsum and other materials in chemical industry, light industry, pharmacy, etc.
Certifications
Packing&Shipping
Guarantee:
Peony Centrifuge has been dedicated to producing machinery and types of equipment and carrying out facility construction, pursuing the best quality and producing the best product at the same time.
We are committed to rewarding you with better quality in return for our interest in and faith.
We will do our utmost for one more stepping forward, based on our infinite services and trust in customers.
Our service
1. 12 months guarantee period from machine arriving date.
2. Abundant spare parts in stock are available to provide.
3. Our technicians could be dispatched for overseas service.
4. 7*24 hours technical consultation.
5. Your workers could get trained both in our factory and yours.
6. Routine tracing till the machine work properly will be done timely.
7. We will remind you to do the normal maintenance.
8. Your suggestions or any comments & reflection would be treated as a priority.
9. Marketing team will visit you during our visit to your country if you require.
