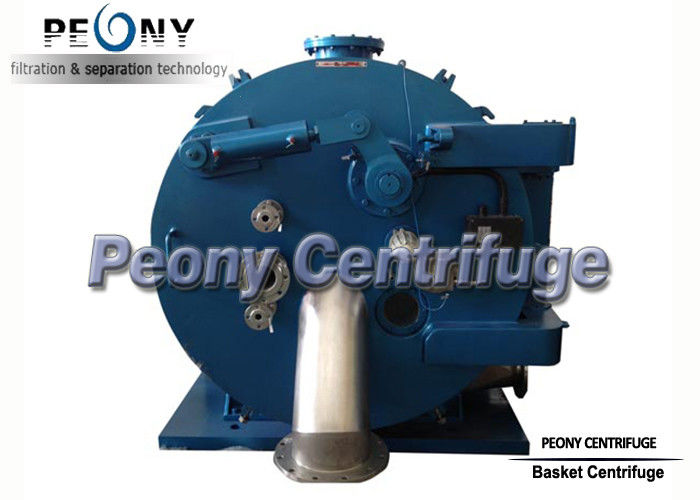

GK Large Capacity Automatic Siphon Peeler Scraper Centrifuge

Brand Name:	Peony
Model Number:	PDC
MOQ:	1 set
Price:	please contact me
Packaging Details:	Standard wooden case
Payment Terms:	L/C, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO,CE, ISO

Type:

Peeler Centrifuge

Application:

Solid-liquid Separation

Sanitary Degree:

GMP

Motor:

Two Motors

Discharge Type:

Automatic Horizontal Scraper Cnetrifuge

Function:

Pusher Centrifuge For Starch

Electrical Control Cabinet:

Inverter Start-up

Keywords:

Scraper Bottom Dsicharge Centrifuge

Material:

SS304

Keywords2:

Horizontal Scraper Centrifuge

Supply Ability:

100sets per month

Highlight:

Automatic Siphon Peeler Scraper Centrifuge

GK Siphon Peeler Scraper Centrifuge

Large Capacity Peeler Scraper Centrifuge

Product Description

Automatic Horizontal Scraper Centrifuge Product Description

GKH Series Horizontal Siphon Scraper Discharge Centrifuge is a kind of filtering centrifuge with automatic control, continuous operation and intermittent discharging, which can complete the processes of backwash, feeding, desludging, washing, dumping and discharging at full speed or variable speed, and it is suitable for separating the crystalline or short-fibre materials with the particle size (diameter) of 5μm~5mm and the concentration of suspending liquid (solid-phase volumetric ratio) of 1%~40%, and it is especially suitable for the occasions of large-load production and the need of full washing. It is especially suitable for large-load production and occasions requiring sufficient washing.
The machine is solid-liquid separation equipment which adopts continuous operation and intermittent discharging. It is controlled by PLC.It regulates speed by frequency convertor, braking system adopts dynamic braking and regenerative braking. Through such procedures as product level detection, speed, inspection, shaft temperature and vibration monitoring, the whole separation process is automatic circulative work(including feeding, dehydration, washing, discharging and etc.) Also manual operation mode is available which can be changed over from full-automation mode by customer's will.

WORKING PRINCIPLE

▷When predetermined target is met and drum speed is suitable for feeding, feeding valve will be open automatically and product level detection begins to work.
▷When layer thickness is thick enough to reach the product detection slab, feeding valve closes to stop feeding.
▷Under the effect of centrifugal force, most of the liquid in suspension is thrown out through filter cloth and then flows into mother liquid tank through horizontal liquid outlet.
▷With product dehydration going on, centrifuge will automatically slow down to washing speed according to technical requirement for washing.

▷Washing valve opens automatically. With washing liquid rising to a certain height, washing valve closes and centrifuge speeds up automatically for further dehydration(secondary filter).

▷After operation, product will be fully dried. Then discharging valve opens and discharging cylinder begins to work when

centrifuge automatically slows down to predetermined speed.

▷With scraper rising spirally and automatically,solid product is scraped down into the hopper equipped with spiral discharger: With constant motion of spiral discharger, product is pushed out and discharged through valve.▷Scraper rises closer to filter cloth with a certain distance till the bar on scraper device approaches proximity switch to stop scraper rising then retreats quickly after a short stay(about 15s)then enters next cycle.

MAIN CHARACTERISTICS♦ It is fully conformed to GMP CGMP and meet the requirements of asepsis raw medicine production.
♦ With absolute isolation between power area and process area.It is suitable for occasion when customer requires high quality cleaning to avoid the contamination to product.
♦ The out shell bucket can be opened, so the whole internal parts can be observed and easy for touch wiping and cleaning.

♦ Perfect CIP system can be carried out to wash the internal parts of centrifuge to avoid cross contamination which are not easy to clean.

♦ Unique pneumatic counter-pulse device is equipped, which can remove remnant filter cake as much as possible.

♦ Totally-enclosed structure equipped with inert gas protection is adopted to be used in ex-proof 1 section. ♦ The automatic residual cakes removing device is optional (have owned the national patent).

TECHNICA PARAMETERS

Model	Capacity (Kg)	Speed (r/min)	G-force	Power (Kw)
PPC-135	135	1600	1150	30
PPCS-135	135	1600	1150	37
PPC-135-GMP	135	1600	1150	37
PPC-312	312	1350	1020	45
PPCS-312	312	1350	1020	55
PPC-288	288	1200	968	45
PPC-375	375	1200	1008	45
PPCS-555	555	1200	1008	75
PPC-960	960	850	650	75
PPCS-960	960	850	650	90

Detailed Images

professional enterprise engaged in the treatment of industrial waste water and gas,as well as evaporating crystallization,drying, filtration, and heat transfer in the field of multi-process production,together with the research and development and manufacturing of technical equipment,covering an area of 532800 square meters. Currently,there are 1580 employees, including 568 engineering technical personnel and professional technicians. We have fixed assets of 2 billion yuan and annual sales of 2.8 billion yuan.
The main products of the group include MVR evaporators, multi effect evaporators, centrifuges, reaction kettles, crystallizers, heat exchangers, PILLOW PLATES, Roots compressors, with various supporting fluid equipment.The enterprise has got ISO9001/2015 system certification, CE certification, ISO14001:2004 environmental management system certification, possesses A1 and A2 pressure vessel manufacturing qualifications, A2 pressure vessel design qualifications, and owns over 100 invention patents and utility model patent technologies. Also,we possess the right to self operate import and export trade.
The company's product quality, advanced technology, and comprehensive after-sales service have been widely recognized around the world, with a high market share. Various series of centrifuges account for 60% of the Chinese market and are exported to more than 50 countries and regions, including Germany, the United Kingdom, Italy, Denmark, Switzerland, the United States, Canada,Australia, Mexico, Brazil, Argentina, Chile, Colombia, Russia, Ukraine, Romania, India, Indonesia, Vietnam, Thailand, South Africa, Egypt, Cameroon, etc.
With the goal of "innovating products through technology, pursuing excellence in quality, serving customers with integrity and perfection", the company manufactures high-tech, highly automated, safe, and energy-saving equipvaporation and fluid equipment in China. GK Large Capacity Automatic Siphon Peeler Scraper Centrifuge 5

Our Certification

1. 12 months guarantee period from machine arriving date.
2. Abundant spare parts in stock are available to provide.
3. Our technicians could be dispatched for overseas service.
4. 7*24 hours technical consultation.
5. Your workers could get trained both in our factory and yours.
6. Routine tracing till the machine work properly will be done timely.
7. We will remind you to do the normal maintenance.
8. Your suggestions or any comments & reflection would be treated in priority.
9. Marketing team will visit you during our visit in your country if you require.
