Product Details
Place of Origin: China
Brand Name: Peony
Certification: ISO
Model Number: PDCS
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: USD25000-145000/SET FOB SHANGHAI
Packaging Details: Standard export package, polywood, fumigated wood, filmed
Delivery Time: 75-90 days after advanced payment
Payment Terms: TT,.LC, Western Union
Supply Ability: 60 sets per month
Application: |
Liquid-liquid-solid 3 Phase Separation |
Operation: |
Automatic Continuous |
MOC: |
Dual Phase Steel |
Bearing: |
SKF, NSK As Optional |
Control Box: |
With |
PLC: |
Optional |
Conveyor: |
Tungsten Carbide |
Product Name: |
Dual Phase Steel 3-Phase Tricanter Work For Palm Oil Refinery Machine With Beach Angle 20 Degree |
Keyword: |
Palm Oil Refinery Machine |
Keyword1: |
Tricanter Work For Crude Palm Oil |
Keyword2: |
Three Phase Industrial Centrifuge |
Application: |
Liquid-liquid-solid 3 Phase Separation |
Operation: |
Automatic Continuous |
MOC: |
Dual Phase Steel |
Bearing: |
SKF, NSK As Optional |
Control Box: |
With |
PLC: |
Optional |
Conveyor: |
Tungsten Carbide |
Product Name: |
Dual Phase Steel 3-Phase Tricanter Work For Palm Oil Refinery Machine With Beach Angle 20 Degree |
Keyword: |
Palm Oil Refinery Machine |
Keyword1: |
Tricanter Work For Crude Palm Oil |
Keyword2: |
Three Phase Industrial Centrifuge |

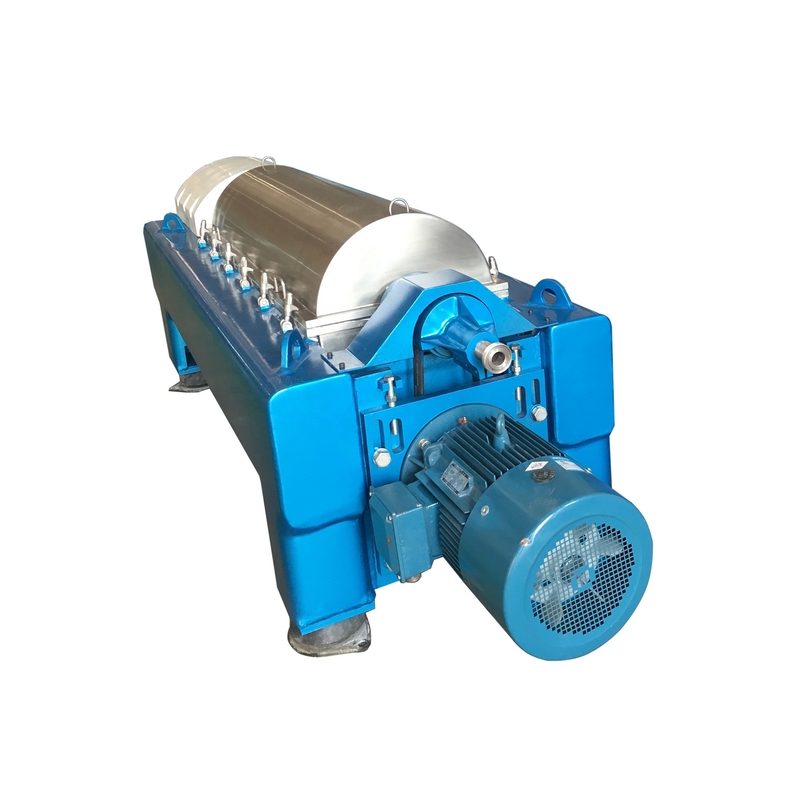

Dual Phase Steel 3-Phase Tricanter Work For Palm Oil Refinery Machine With Beach Angle 20 degree
Brief Introduction
Dual Phase Steel 3-Phase Tricanter Work For Palm Oil Refinery Machine With Beach Angle 20 degree.
Main Characteristics
1.Continuous working,spiral discharging,high capacity.
2.Controlled by two motors,rovolving drum can be adjustable two stage separately.
3.Wide applicability for chemical,oil,foodstuff,pharmacy industries and green industry in which solid-liquid separation is required.
4.Suitable for various products,capable for separating wide ranging solid phase grains(0.002-2mm),especially when separating solid phase has different size grains
For continuous separation of solids from liquids such as thickening and dewatering sludge, suspensions with granular solids, clarification of liquids, separating starch, etc. We provide a broad range of DECANTER sizes.
With disc separator,nozzler separator
Our model is Disc separator PDSP15000-N,similar with PAS 710
REFERENCE MODEL | PAS 710 | |
Max Speed (Bowl) | 5469 | RPM |
Speed motorshaft | 1800 | RPM |
Frequency | 60 | Hz |
Recommended Power | 45 | kW |
Max Density of Feed | 1200 | kg/m3 |
Max Density of Sediment | 1700 | kg/m3 |
Process Temperature | 0/100 | °C |
Recovered Discharge Type | Centripetal Pump | |
Effluent Discharge Tyoe | Open | |
Number of Nozzles | 9 | |
Motor Power | 45 | kW |
Motor Current | 77.4 | amp |
Motor Frequency | 1776 | RPM |
Material Choice
According to users' requirement,the product contact parts can be made of austenite stainless steel(321,316L...904L,C2205),Haynes alloy titanic alloy or other anti-erosion materials
Special Allocation
Following allocation can be possible to meet customer's demand
1.Frequency conversion plus PLC controlling system
2.Protection system for vibration and temperature rising
3.Feeding speed control
4.Gas-liquid separation device on liquid outlet
5.Three kinds of structure selection of cycloid gear,planetary gear and hydraulic differential. They are used to be transfered the different solid phase by pushing the torque.
More pictures
Certification
Guarantee
Peony Centrifuge has been dedicated to producing machinery and types of equipment and carrying out facility construction, pursuing the best quality and producing the best product at the same time.
We are committed to rewarding you with better quality in return for our interest in and faith.
We will do our utmost for one more stepping forward, based on our infinite services and trust in customers.
Our services
1. 12 months guarantee period from machine arriving date.
2. Abundant spare parts in stock are available to provide.
3. Our technicians could be dispatched for overseas service.
4. 7*24 hours technical consultation.
5. Your workers could get trained both in our factory and yours.
6. Routine tracing till the machine work properly will be done timely.
7. We will remind you to do the normal maintenance.
8. Your suggestions or any comments & reflection would be treated as a priority.
9. Marketing team will visit you during our visit to your country if you require.
