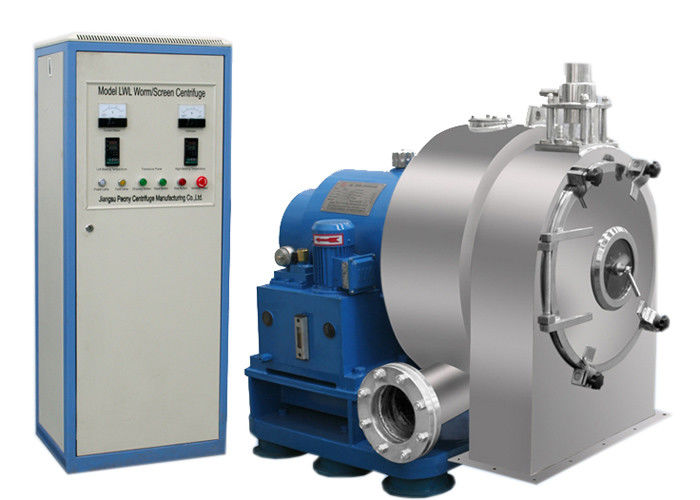

PWC Pusher Worm Centrifuge Horizontal Discharging Filtrating Pharmaceutical Machine

PWC Pusher Worm Centrifuge Horizontal Discharging Filtrating Pharmaceutical Machine

  • High Light

    PWC Pusher Worm Centrifuge

    ,

    Pharmaceutical Centrifuge Machine

    ,

    Horizontal Discharging Filtrating Centrifuge

  • Name
    Worm Centrifuge
  • Working Principle
    Same As Siebtechnick
  • Feeding&Discharging
    Automatic
  • MOC
    SS316L
  • Control System
    PLC Control
  • Application
    Chemical, Salt Making, Alkali Making, Environmental Protection, Etc.
  • Place of Origin
    China
  • Brand Name
    Peony
  • Certification
    ISO9001&ISO14001,CE
  • Model Number
    PWC
  • Minimum Order Quantity
    1
  • Packaging Details
    Standard export packings
  • Delivery Time
    45 days
  • Payment Terms
    T/T, D/A, D/P, L/C, Western Union, MoneyGram
  • Supply Ability
    30 sets/month

PWC Pusher Worm Centrifuge Horizontal Discharging Filtrating Pharmaceutical Machine

Horizontal PWC Pusher Worm Centrifuge Discharging Filtrating Pharmaceutical Machine




Description
Horizontal PWC Pusher Worm Centrifuge Discharging Filtrating Pharmaceutical Machine

Model PWC pusher centrifuge is a type of horizontal, spiral discharging filtrating equipment with continuous operation. With the drum and the helix rotating in the same direction at high speed difference, the material is continuously led, via the feeding pipe, into the inner cylinder of the spiral feeder and, after acceleration, enters the drum. Under the action of the centrifugal force field, the liquid phase passes through the filtrating medium and is discharging out of the machine, while the solid-phase material is retained inside the drum and forms the filter residue. Under the combined action of the conic surface component force of the centrifugal force and the spiral feeder, the filter residue continuously moves towards the big end of the drum and is discharged out of the machine through the discharging trough. This machine is capable of continuous feeding, separating, washing and discharging during the full-speed running. It has such features as compact structure, small space occupancy, continuous operation, smooth running, strong adaptation, large handing capacity, low moisture content in the filter cake, etc.

PWC Pusher Worm Centrifuge Horizontal Discharging Filtrating Pharmaceutical Machine 0

Specifications



Model

Drum

Motor

power

(kw)

Weight

(kg)

Dimension

(L×W×H)

(mm)

Max dia

(mm)

Height

(mm)

Filter

area

(m²)

Testing

water

(m³/h)

Max speed

(r/min)

Max separating

 factor

PWC-12

300

265

0.215

7.5

3000

1764

7.5

1250

910 × 1050 × 800

PWC-14

350

315

0.28

10

3000

1764

11

1400

1135 × 1590 × 1160

PWC-18

450

360

0.44

15

2400

1452

22

2200

1340 × 1820 × 1320

PWC-22

560

345

0.55

20

2000

1255

30

3380

1535 × 1820 × 1455

PWC-25

630

400

0.71

25

1800

1143

37

3800

1690 × 2000 × 1470



PWC Pusher Worm Centrifuge Horizontal Discharging Filtrating Pharmaceutical Machine 1

Applications

It is applicable to the separating of suspension liquid containing the solid-phase material with the granule size greater than 0.1 mm and concentration being 25-75% or the separating of short fibers. It has found wide applications in such industries as chemical, salt making, alkali making, environmental protection, etc.

PWC Pusher Worm Centrifuge Horizontal Discharging Filtrating Pharmaceutical Machine 2

Guarantee


Peony Centrifuge has been dedicated to producing machinery and equipment and carrying out facility construction, pursuing the best quality, and producing the best product at the same time.
We are committed to rewarding you with better quality in return for our interest in and faith. We will do our utmost for one more stepping forward, based on our infinite services and trust in customers.



PWC Pusher Worm Centrifuge Horizontal Discharging Filtrating Pharmaceutical Machine 3
