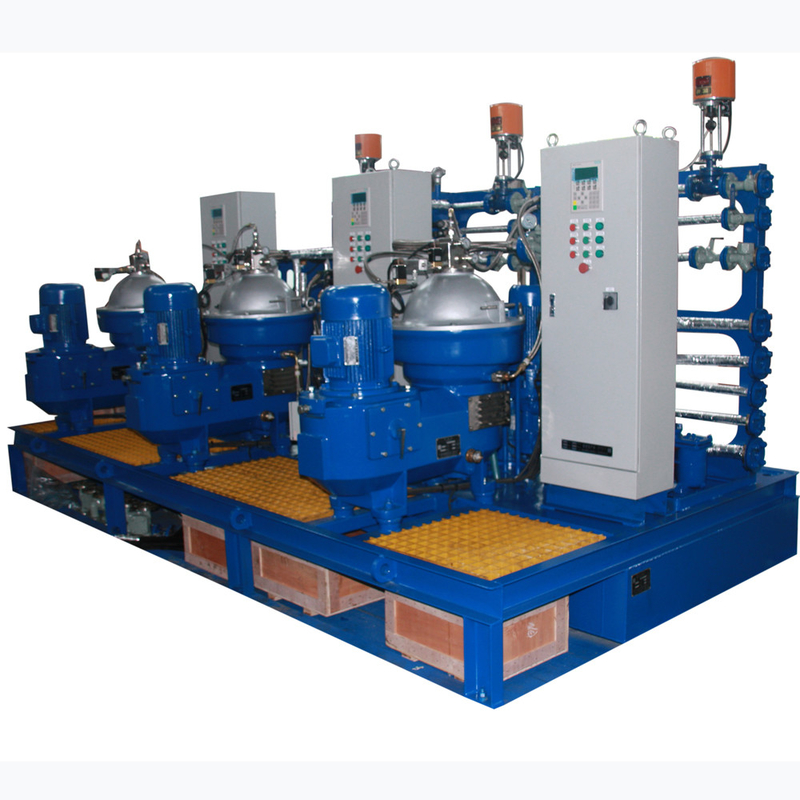

PDSD14000 Self Cleaning Separator Power Plants Based On HFO Diesel Fuel

PDSD14000 Self Cleaning Separator Power Plants Based On HFO Diesel Fuel

  • High Light

    PDSD14000 Self Cleaning Separator

    ,

    HFO Diesel fuel Separator

    ,

    Power Plants Based Self Cleaning Separator

  • Description
    Land Power Station
  • Fuel Type
    HFO,FO,Crude Oil
  • Engine Brand
    Hyundai,Man,wartsila Etc
  • Engine Power
    From 1MW To 40MW
  • Power Station Type
    Peak Shaving,standalone Power Station
  • Collaction
    1VS1,1VS2,1VS3,1VS4
  • Application
    Generating Station, Power Plant, Powerhouse, Or Generating Plant
  • Item
    Self Cleaning PDSD14000 Separator Power Plants Based On HFO Diesel Fuel
  • Place of Origin
    China
  • Brand Name
    Peony
  • Certification
    ISO
  • Model Number
    PDSD14000
  • Minimum Order Quantity
    1set
  • Price
    USD
  • Packaging Details
    Wooden case + Packing
  • Delivery Time
    3months
  • Payment Terms
    D/A, L/C, D/P, T/T, Western Union, MoneyGram

PDSD14000 Self Cleaning Separator Power Plants Based On HFO Diesel Fuel

Self Cleaning PDSD14000 Separator Power Plants Based On HFO Diesel fuel



Production overview

The machine is one kind of rotary machine with high speed. After accurate dynamic balancing, it can run for long time with low vibration, safety and security.The design, product and acceptance are conformed to the standard of GB/T5745 “Marine Disc Separator”.



A power station, also referred to as a generating station, power plant, powerhouse, or generating plant, is an industrial facility for the generation of electric power. Most power stations contain one or more generators, a rotating machine that converts mechanical power into electrical power. The relative motion between a magnetic field and a conductor creates an electrical current. The energy source harnessed to turn the generator varies widely. Most power stations in the world burn fossil fuels such as coal, oil, and natural gas to generate electricity. Others use nuclear power, but there is an increasing use of cleaner renewable sources such as solar, wind,wave and hydroelectric.



We supply complete power plants based on HFO and/or Diesel fuel worldwide,using either low or middle speed (less than 1000rpm)  gensets,These power plants are for baseload,peak shaving or standalone application,ranging from few megawatts to hundreds power plants.we supply HFO or dual oil (Fo and crude oil) as fuel to generate the electric power station.



Model PDSD14000 separator is mainly used to remove water and mechanical impurities from diesel oil,lubricating oil and other mineral oil in marine diesel engine unit and land-used diesel generator unit of power station so as to reduce wear of the diesel engine and other machine, and prolong engine life. The model is also used to separate two unsolvable liquids with different specific gravity or remove small
amount of solid particle from liquid.


The machine adopts automatic control, and has the advantages of high efficiency, low oil consumption, convenient operation and economic maintenance cost.The clear oil and dirty water are pumped out by centripetal pump, the sludge is discharged automatically and fully.
PDSD14000 Self Cleaning Separator Power Plants Based On HFO Diesel Fuel 0PDSD14000 Self Cleaning Separator Power Plants Based On HFO Diesel Fuel 1

Technical Parameter

Model PDSD14000
Rated capacity L/h 14000 (0# diesel)
Bowl rotating speed rpm 7800
Output pressure of clear oil Mpa ≤0.2
Output pressure of sewage Mpa ≤0.3
Motor power kW 11-15
Weight(special tools included) kg 730
Full volume of the slag cavity L 2
Discharge Type Variable discharge
Type of output Centripetal pump
Dimension of single machine L × W × H (mm) 1200*810*1225



Separation unit



PDSD14000 Self Cleaning Separator Power Plants Based On HFO Diesel Fuel 2



Supply scope



*Complete engineering package

*Produrement and project management

*Powerhouse including civil works,genset's foundation,steel structure,relevant ba;amce pf palnt equipment(air intakes,pumps and piping,exhaust stacks lo separation/filtration etc)

*Control room and electrical room according to the site design

*Control system,HMI and communication systems

*Cooling system for engines

*Optional heat recovery system

*Etc



Graphic model

PDSD14000 Self Cleaning Separator Power Plants Based On HFO Diesel Fuel 3PDSD14000 Self Cleaning Separator Power Plants Based On HFO Diesel Fuel 4



PDSD14000 Self Cleaning Separator Power Plants Based On HFO Diesel Fuel 5






Reference list

PDSD14000 Self Cleaning Separator Power Plants Based On HFO Diesel Fuel 6



Guarantee


Peony Centrifuge has been dedicated to producing machinery and equipment and carrying out facility construction, pursuing the best quality, and producing the best product at the same time.
We are committed to rewarding you with better quality in return for our interest in and faith. We will do our utmost for one more stepping forward, based on our infinite services and trust in customers.



PDSD14000 Self Cleaning Separator Power Plants Based On HFO Diesel Fuel 7
