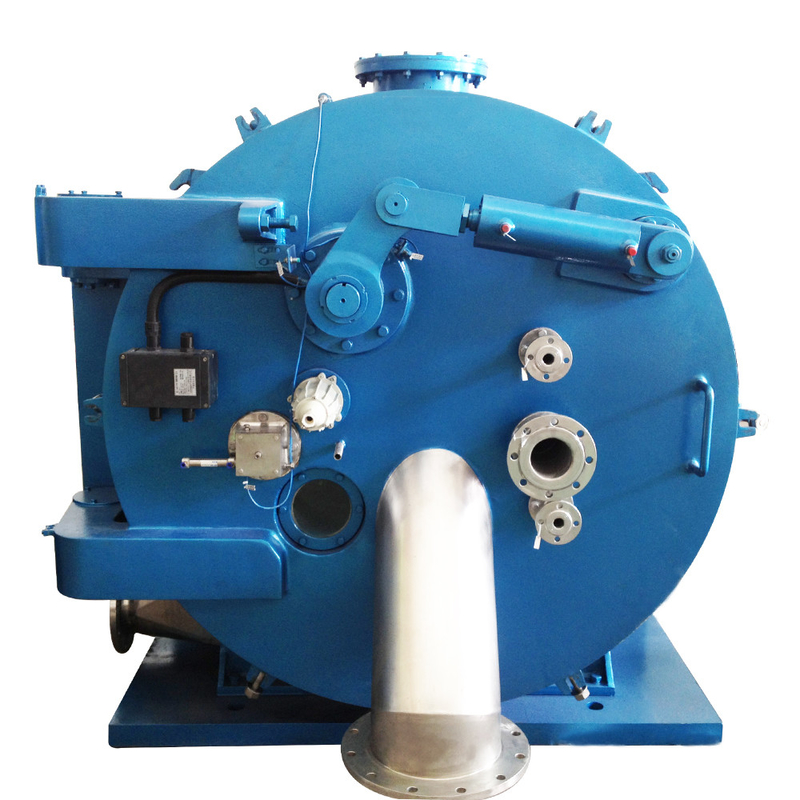

Horizontal Scraper Bottom Discharge Centrifuge Automatic For Starch Concentration

Horizontal Scraper Bottom Discharge Centrifuge Automatic For Starch Concentration

  • High Light

    Horizontal Scraper Bottom Discharge Centrifuge

    ,

    Automatic Scraper Bottom Discharge Centrifuge

    ,

    Discharge Centrifuge For Starch Concentration

  • Type
    Horizontal Automatic Centrifuge
  • Core Components
    PLC, Engine, Bearing, Gearbox, Motor
  • Voltage
    220,380,440,460V, 220,380,440,460V,etc
  • Working Type
    Continuous
  • Control System
    PLC Control System
  • Warranty
    12 Months
  • Material
    Stainless Steel,316L,carbon Steel,SS304
  • Operation
    Easy Operation,Continuous,PLC System
  • Machine Type
    Separation Equipment
  • After-sales Service Provided
    Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Video Technical Support,Field Maintenance And Repair Service
  • Item
    Automatic Horizontal Scraper Bottom Discharge Centrifuge For Starch Concentration
  • Keyword
    Bag Pullling Centrifuge
  • Keyword1
    Starch Concentration And Dewatering
  • Place of Origin
    Jiangsu
  • Brand Name
    Peony
  • Certification
    ISO,CE
  • Model Number
    GKH
  • Minimum Order Quantity
    1
  • Price
    FOB + USD
  • Packaging Details
    Wooden Packing
  • Delivery Time
    40 working days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    50 sets per month

Horizontal Scraper Bottom Discharge Centrifuge Automatic For Starch Concentration

Automatic horizontal scraper bottom discharge centrifuge For Starch Concentration


Brief Introduction
Automatic horizontal scraper bottom discharge centrifuge For Starch Concentration,This machine is controlled by PLC and regulates speed by frequency convertor, braking system applies dynamic braking and regenerative braking, the whole separation process is automatic circulative process and manual operation mode is applicable to be changed over from automatic operation mode.

Main Characteristics
1.Comparing with common horizontal centrifuges with the same specification,the production capacity can be raised by 40% to 60% and the moisture content of filter cake is lower.
2.Different filter speed can be realized during different process as feeding separation filtering,washing and dehydration.
3.The centrifuge will be always under best working condition and the equipment operates stably and the vibration and noise are rather low.
4.When the scraper is finished,the regenerate liquid will be fed from the siphon feeding pipe to regenerate and resuspension the filter cake,bake flush and remove the left filter cake.
5.The automatic residual cakes removing device is optional (have owned the national patent).
Technical Parameters

Model Drum volume (L) Loading capacity (Kg) Motor power (Kw) Size (mm)
GKH-450 21 26 15 1800*1375*1902
GKH-800 110 140 37 2439*1900*2150
GKH-1000 200 250 45 3050*2400*2192
GKH-1050 210 260 45 3050*2400*2192
GKH-1250 335 500 75/90 3875*2500*2612
GKH-1600 879 1100 132 5620*3200*3930
GKH-1800 1390 1800 160 5862*3600*3910
GKH-2000 1923 2400 200 7577*3700*4053


Application
GKH Series automatic siphon centrifuge is a solid-liquid separation equipment which adopts continuous operation and intermittent discharging.Its production capacity and separation effect is better than GK(F) centrifuge.
 Horizontal Scraper Bottom Discharge Centrifuge Automatic For Starch Concentration 0,
Automatic horizontal scraper bottom discharge centrifuge For Starch Concentration,GK Peeler Centrifuge Series automatic siphon centrifuge is more suitable for separating such product as small solid phase granularity and which is hard to be separated.It is widely used in pharmaceutical, Chemical and foodstuff industry (e.g. starch, calcium phosphate, Sodum bicarbonate)

Structure Sketch Map
Horizontal Scraper Bottom Discharge Centrifuge Automatic For Starch Concentration 1
Horizontal Scraper Bottom Discharge Centrifuge Automatic For Starch Concentration 2
Working Principle
1.Except centrifuge force like the other common centrifuge siphon centrifuge also has a kind of siphon draught force similar to vacuum pipe.
2.When the centrifuge is of no load,the counter-pulse pipe feeds the liquid to siphon chamber and the liquid is forced to the clearance through the via hole on the drum of siphon chamber.Then air of siphon pipe is eliminated and a layer of liquid forms on the filtering media,so as to make the feeding more even.
3.Then feeding starts,the siphon pip rotates to a certain position and it turns to a lower position required after a certain period.When the feeding is finished,the siphon pipe turns to the lowest position(Max diameter place of siphon chamber).
4.After the suspension liquid comes into the drum,solid products are left on the filter cloth while the liquid is forced to go through the filter cloth and internal drum and collected in the clearance between internal and external drum,then it flows into the siphon chamber through drum and via hole.
5.Next the liquid will be draught by siphon pipe and the deposited solid will be dewatered and scraped by scraper which is driven by oil cylinder. And then the solid falls out through hopper.
6.When discharging is finished,centrifuge begins to clean the mesh.The siphon centrifuge not only washes the filter cloth in the drum,but also feeds the washing water to siphon chamber.By controlling the upper and lower rotation of siphon pipe,liquid can counter-pulse wash the filter mesh from the internal drum.
7.When the washing is finished,carry out the next circulative processing cycle.
Horizontal Scraper Bottom Discharge Centrifuge Automatic For Starch Concentration 3

Horizontal Scraper Bottom Discharge Centrifuge Automatic For Starch Concentration 4
Horizontal Scraper Bottom Discharge Centrifuge Automatic For Starch Concentration 5

Related machine:

Horizontal Scraper Bottom Discharge Centrifuge Automatic For Starch Concentration 6
Our Factory
Our company's covering an area of 300 acres,involved are in the industry of new material, new energy, medicine, chemical, environmental protection, food, and beverage, etc.
The company has various kinds of general (special) machinery devices including 480 sets and are the most developed working devices in the world such as: Toshiba CNC boring and milling machine imported from Japan, German Schiess CNC turning processing center, etc.
The company's main projects include but are not limited to: MVR evaporation system, powder washing salt and vacuum salt production project, oil tank sludge cleaning project, landfill leachate treatment project, plant/animal oil processing production line, various wastewater treatment projects, and CBD oil extraction production line. Technical support and transfer of API product technology package. The main products are centrifuge series, multi-effect and MVR evaporation and crystallization equipment,laser welding heat transfer board, lithium battery material mixing equipment, pressure vessel and titanium, zirconium, nickel, and other non-standard special equipment.
Horizontal Scraper Bottom Discharge Centrifuge Automatic For Starch Concentration 7
The company's sales network throughout the whole world, with a domestic sales market share of 50%, and exported to the United States, Canada, Germany, Spain, France, Switzerland, Sweden, Denmark, Australia, Brazil, Argentina, Chile, Colombia, Russia, Ukraine, Poland, Uzbekistan, Indonesia, Vietnam, Singapore, Malaysia, India, Japan, South Korea, Iran, South Africa, Nigeria, and Rwanda.
The company is an internationally competitive engineering company that integrates technical consulting, design, procurement, construction, installation and driving into one, providing engineering EPC general contract, project management, engineering supervision and other comprehensive, full-process services. The company is Committed to be the first and world-renowned technology and technology engineering company in Asia, providing cutting-edge technology and one-stop solutions for the world's industries.
Horizontal Scraper Bottom Discharge Centrifuge Automatic For Starch Concentration 8Horizontal Scraper Bottom Discharge Centrifuge Automatic For Starch Concentration 9
Horizontal Scraper Bottom Discharge Centrifuge Automatic For Starch Concentration 10

Automatic horizontal scraper bottom discharge centrifuge For Starch Concentration
