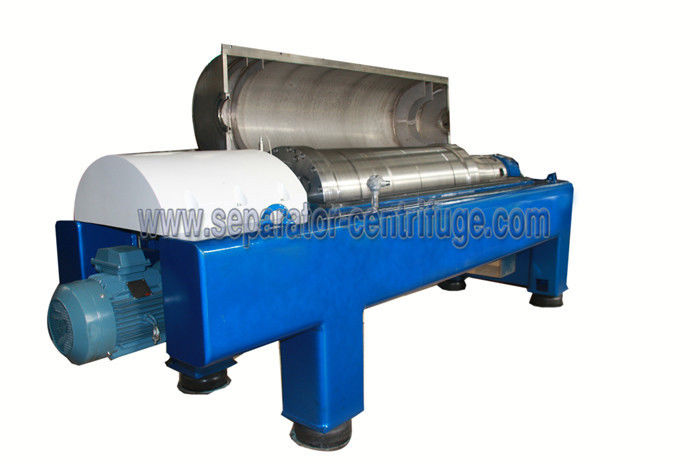

Calium Hypochlorate Decanter Centrifuge Horizontal 3 Phase Tricanter

Calium Hypochlorate Decanter Centrifuge Horizontal 3 Phase Tricanter

  • High Light

    Calium Hypochlorate Decanter Centrifuge machine

    ,

    Horizontal Decanter Centrifuge

    ,

    3 Phase Tricanter Centrifuge

  • Application
    Calium Hypochlorate Decanter Centrifuge
  • G-force
    3000,2550,2500 Etc
  • MOC
    Stainless Steel
  • Control Box
    With
  • Bearing
    SKF, NSK
  • Product Name
    Liquid - Liquid - Solid Separation Horizontal 3 Phase Centrifuge / Tricanter
  • Place of Origin
    China
  • Brand Name
    Peony
  • Certification
    ISO
  • Model Number
    PDC
  • Minimum Order Quantity
    1 set
  • Price
    USD20000-138000/SET FOB Shanghai
  • Packaging Details
    Standard export package, polywood, fumigated wood, filmed
  • Delivery Time
    75-90 days after down payment
  • Payment Terms
    TT,.LC, Western Union
  • Supply Ability
    60 sets per month

Calium Hypochlorate Decanter Centrifuge Horizontal 3 Phase Tricanter

Tiles for Protecting Flights of Decanter Centrifuge Used in Different Industries

Working principle



The centrifuge starts and speeds up automatically, when the proper working condition are met and the revolving drum reaches the feeding speed, the feeding valve opens and allows suspension which will be separated to enter into the product compartment of the spiral feeder through the feeding pipe. After the preliminary speed-up, the susupension passes the outlet of compartment and intro the drum. Because of centrifugal force, the suspension in the drum is quickly devided into tw ophases, the heavier solid phase deposites to the inner wall of the drum, and driven by the differential gear with results in the non-cynchronous movement betwen the spiral feeder and the drum. the solid phase will be transferred into the small end for future dehydration and finally discharged through solid phase outlet. The separated liquid flows out though the big end or will be driven out by centrifugal pump.





Competitive Advantages

  • 3 phase liquid-liquid-solid separation
  • For different purposes
  • Outstanding separation effect
  • Wide usage in the fish oil and fishmeal field
  • Corrosion-resistant an resistant key parts
  • Flexible length-to-diameter ratio
  • Famous and reliable electrical components



Overview

Calium Hypochlorate Decanter Centrifuge Horizontal 3 Phase Tricanter 0



Specifications



Model

Drum

G-force

Capacity

(m3/h)

Max solid discharge (m3/h)

Power

(kw)

Weight

(kg)

Overall size

(L×W×H)

(mm)

Diameter

(mm)

Speed

(rpm)

Length

(mm)

Length-to-diameter rate

PDCS-16-3

400

3650

1200

3

3000

1~5

1.5

18.5/7.5

2350

2990 ×960 × 1205

PDCS-16-4.5

400

3650

1800

4.5

3000

2~25

2

22/7.5

2500

3890 × 1020 × 1205

PDCS-17

420

3300

1680

4

2550

2~25

2.5

30/11

3610

4050×1270×1100

PDCS-18

450

3450

2000

4.8

3000

3~35

3

37/22

3000

4297 × 1080 × 1385

PDCS-20

500

3000

2000

4

2500

5~45

3.2

37/22

3800

4330 × 1140 × 1470

PDCS-21

530

2900

2280

4.3

2500

15~65

5

55/30

5000

4924 × 1170 × 1540

Calium Hypochlorate Decanter Centrifuge Horizontal 3 Phase Tricanter 1



Guarantee



Peony Centrifuge has been dedicated to producing machinery and equipments and carrying out facility construction, pursuing the best quality and producing the best product at the same time.We are committed to reward you with a better quality in return for our interest in and faith toward.We will do our utmost for one more stepping forward, based on our infinite services and trust to customers.





Our services



1. 12 months guarantee period from machine arriving date.

2. Abundant spare parts in stock are available to provide.

3. Our technicians could be dispatched for overseas service.

4. 7*24 hours technical consultation.

5. Your workers could get trained both in our factory and yours.

6. Routine tracing till the machine work properly will be done timely.

7. We will remind you to do the normal maintenance.

8. Your suggestions or any comments & reflection would be treated in priority.

9. Marketing team will visit you during our visit in your country if you require.
