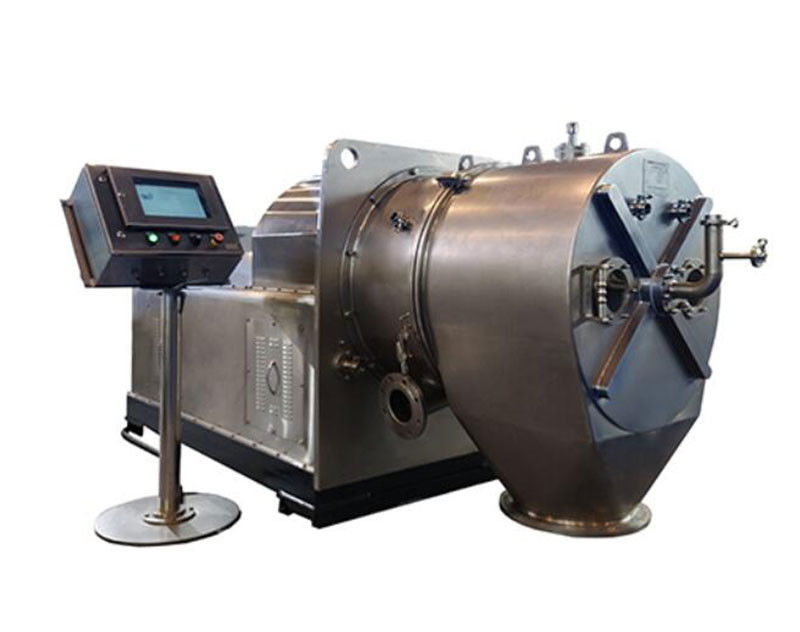

Horizontal Bag Turning Starch Separator Basket Starch Centrifuge Peeler Bottom Discharge

Horizontal Bag Turning Starch Separator Basket Starch Centrifuge Peeler Bottom Discharge

  • High Light

    Basket Starch Centrifuge

    ,

    Peeler bottom discharge Starch Centrifuge

    ,

    Bag Turning Starch Separator

  • Application
    Food, Chemistry, Pharmacy, Light Industry, Etc
  • Operation
    Batch
  • MOC
    SS
  • Bearing
    SKF, NSK As Optional
  • Discharge Type
    Peeler Bottom Discharge
  • Product Name
    Horizontal Bag Turning Starch Separator Basket Starch Centrifuge
  • Keyword
    Starch Separator Manufacturer
  • Keyword1
    Starch Centrifuge
  • Place of Origin
    China
  • Brand Name
    Peony
  • Certification
    ISO
  • Model Number
    FW
  • Minimum Order Quantity
    1 set
  • Price
    USD20000-85000/set FOB Shanghai
  • Packaging Details
    Standard export packings
  • Delivery Time
    60-75 days after deposit
  • Payment Terms
    T/T, L/C, Western Union
  • Supply Ability
    100 sets/month

Horizontal Bag Turning Starch Separator Basket Starch Centrifuge Peeler Bottom Discharge

Horizontal Bag Turning Starch Separator Basket Starch Centrifuge Peeler Bottom Discharge 0Horizontal Bag Turning Starch Separator Basket Starch Centrifuge

Intruduction

Horizontal Bag Turning Starch Separator Basket Starch Centrifuge ,FW series are filter centrifuges with intermittent feeding and intermittent discharging. Feeding, separation, washing, dehydration and other operating procedures are completed under full speed, discharging is completed under the condition of deceleration.



Technical Parameter

Model FW-630 FW-800 FW-1000 FW-1300
Drum diameter(mm) 630 800 1000 1300
Drum volume(L) 70 120 200 350
Filter area(m2) 0.56 0.85 1.26 2
High speed(r/min) 1940 1600 1270 1000
Maximum separation factor 1325 1144 901 726
Weight(kg) 3600 4200 5500 6500
Overall dimensions(mm) 2970*1040*1650 3980*1450*1890 4990*1650*2560 5900*2050*3250



Main Characteristics

1.Fully sealed structure design, reliable sealing, no pollution to materials.

2.The shell can be completely turned over for easy cleaning and inspection.

3.Discharge without scraper mechanical parts, no damage to gain crystal;

4.There is no material residue in the filter cloth, which facilitates the separation of materials in the next batch.

5.Damping shock absorber, no foundation installation;

6.Unmanned operation, automatic detection and operation;



Working Principle

This type of machine is mainly composed of a rotating mechanism, a discharging mechanism, a machine base, a bearing combination, a rotating drum, a pusher, a screen, a casing, and an electric control part.

Under high-speed operation, the suspension enters the drum through the feeding tube. Under the action of centrifugal force, the suspension is evenly distributed in the filter cloth inside the drum. The liquid phase passes through the pores of the filter cloth and the gap of the screen. And the drum filter hole is drained from the mother liquor nozzle, and the solid phase is trapped on the filter screen to form an annular filter residue layer. When unloading, the main engine first slows down to the unloading speed, starts the unloading motor, and pushes the pusher from the drum. Because both ends of the filter cloth are fixed on the pusher and the drum, the filter cloth is turned inside and outside. The trapped material is turned over to the outside of the filter cloth. Also under the action of the centrifugal force field, the material is removed from the filter cloth and discharged from the discharge port.



Working Process Diagram

1. The suspension enters the drum through the feed pipe. The amount of feed can be controlled according to time or flow, or can be controlled by a load cell.

2. The cleaning liquid enters the rotating drum through the feeding tube, so that the cleaning liquid penetrates the filtering cake layer to achieve the washing effect. The amount of the cleaning liquid can be controlled according to time or flow, or can be controlled by a weighing sensor.

3. The conversion is rotated according to the preset value, and the preset speed is set according to the process requirements. The filtrate flows through the discharger and the solids are trapped in the filter cloth to form an annular filter cake.

4. The filter cloth is turned over by the rotation of the shaft, and the separated solid is discharged, and the pusher tray will keep the rotation at a low speed, so that the material is completely discharged outside the machine.

5. In the closed environment, the CIP in-place cleaning system can effectively clean the inside of the machine.

6. In order to achieve the best cleaning effect, the discharge port and the mother liquid port can be closed with a valve, the machine is immersed and cleaned, and the liquid level is detected by the liquid level switch to reach a preset level.



Workflow Diagram

Horizontal Bag Turning Starch Separator Basket Starch Centrifuge Peeler Bottom Discharge 1
Appearance Structure Drawing

Horizontal Bag Turning Starch Separator Basket Starch Centrifuge Peeler Bottom Discharge 2
