Product Details
Place of Origin: China
Brand Name: Peony
Certification: ISO
Model Number: PP
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: USD24000-80000/SET FOB Shanghai
Packaging Details: Standard export packings
Delivery Time: 60-90 days after receive the deposit
Payment Terms: T/T,L/C, West Union
Supply Ability: 50 sets/month
Application: |
Large Capacity, Sea Salt And Mineral Salt Dewatering |
Operation: |
Automatic Continuous |
Technique: |
Sulzer Echer Wyss |
MOC: |
SS316L, DSS |
Bearing: |
SKF |
Capacity: |
3-20t/h Output |
Voltage: |
110v,220v,380v,440v,460v |
Product Name: |
Sulzer Metal Screen Basket Centrifuge Table Salt Processing Machine |
Application: |
Large Capacity, Sea Salt And Mineral Salt Dewatering |
Operation: |
Automatic Continuous |
Technique: |
Sulzer Echer Wyss |
MOC: |
SS316L, DSS |
Bearing: |
SKF |
Capacity: |
3-20t/h Output |
Voltage: |
110v,220v,380v,440v,460v |
Product Name: |
Sulzer Metal Screen Basket Centrifuge Table Salt Processing Machine |

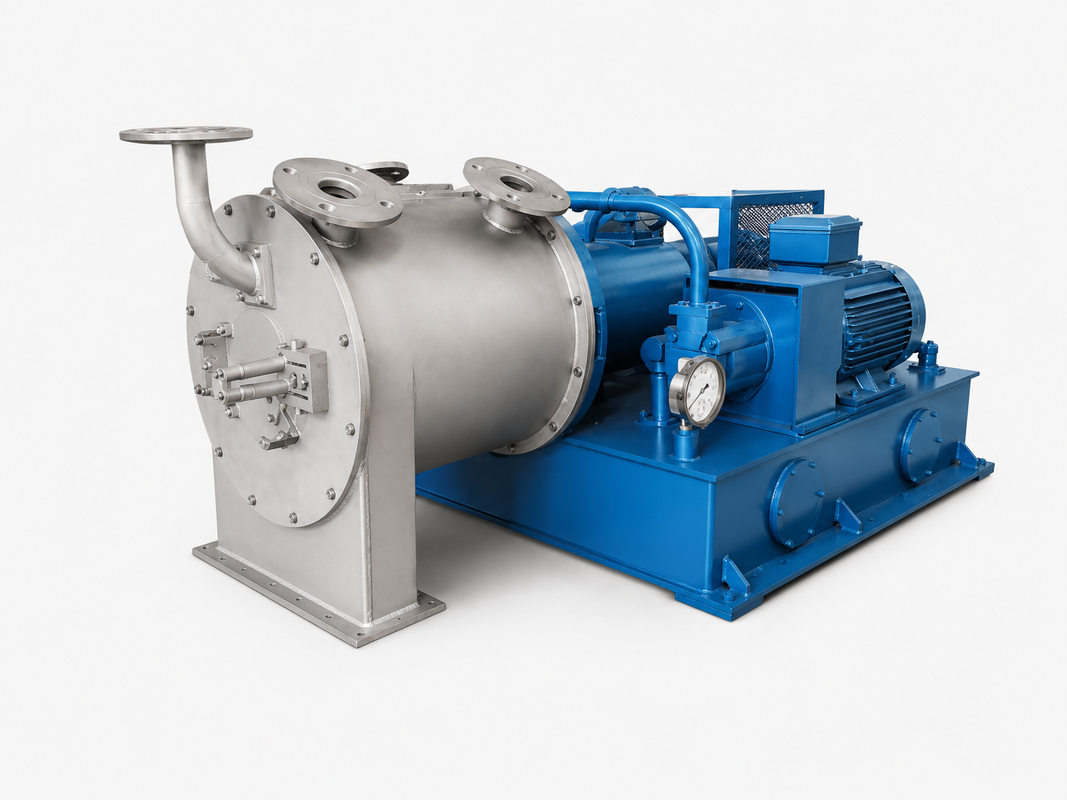

Sulzer Metal Screen Basket Centrifuge Table Salt Processing Machine
Quick skimming
Application: Salt Dewatering Centrifuge
Bearing: SKF
MOC: SS304, SS316, DUPLEX SS
Motor defends degree: IP54/F1
Electrical elements: Famous brand
Advanced technology: Sulzer
Separation affection: Moisture in the cake less than 4%
Description
The PP Sulzer Double Stage Salt Centrifuge is a type of perforated basket centrifuge that is both continuous and effective. To begin the process, the mixture to be separated is fed through the feeding pipe and the distributor, which then distributes the mixture evenly into the first stage basket. The centrifugal force causes most of the mother liquor in the feed to depart through the sieves and into the liquor-collecting casing, where it is discharged out of the machine. The first stage basket rotates and reciprocates, pushing the formed product cake into the second stage basket. The cake is slowed down by the centrifuge and acted on by more centrifugal force, which guarantees the desired humidity of the cake. The cake is continuously discharged from the basket. For high purity of the solid product, the centrifuge can perform an effective washing. If necessary, the washing agent and the mother liquor can be discharged separately.
Technical Parameters of PP-40
|
Equipment |
2-stage pusher centrifuge |
|||||
|
Spec. |
PP-40 |
Qty |
set |
|||
|
Technical parameters |
||||||
|
1 |
Basket diameter |
290/360 mm |
||||
|
2 |
Basket Rotate Speed (Max) |
2500r/min |
||||
|
3 |
Stroke of Pusher Mechanism |
40-80times/min |
||||
|
4 |
First, second stage mesh aperture (as per the material) |
mm, mm |
||||
|
5 |
Separation Factor |
586-728 |
||||
|
6 |
Main motor |
Spec/Power |
11-15KW |
|||
|
|
|
Installation type |
Horizontal |
|||
|
|
|
Protection class |
IP54/F1 |
|||
|
|
|
Electrical power |
3 phase 380V/50Hz AC |
|||
|
7 |
Oil pump motor |
Spec/Power |
5.5-7.5KW |
|||
|
|
|
Installation type |
Horizontal |
|||
|
|
|
Protection class |
IP54/F1 |
|||
|
|
|
Electrical power |
3 phase 380V/50Hz AC |
|||
|
8 |
Oil pump |
Spec. |
NB4C100F |
|||
|
|
|
outflow |
100ml/turn |
|||
|
|
|
Maximum pressure |
2.5Mpa |
|||
|
9 |
Overall size |
2346mm×1090mm×1006mm |
||||
|
10 |
Weight |
2600kg |
||||
|
11 |
Shell type |
open |
||||
|
12 |
Output |
3T-5T/h(sea salt) |
||||
|
13 |
Moisture content after separation: |
3-4%(sea salt) |
||||
|
14 |
Object processed |
Mineral salt/Sea salt |
||||
Technical Parameters of PP-50
|
Equipment |
2-stage pusher centrifuge |
|||||
|
Spec. |
PP-50 |
Qty |
set |
|||
|
Technical parameters |
||||||
|
1 |
Basket diameter |
438/500 mm |
||||
|
2 |
Basket Rotate Speed (Max) |
2000rpm |
||||
|
3 |
Stroke of Pusher Mechanism |
40-80times/min(can be adjusted) |
||||
|
4 |
First, second stage mesh aperture (as per the material) |
mm, mm |
||||
|
5 |
Separation Factor |
1119 |
||||
|
6 |
Main motor
|
Spec/Power |
45KW |
|||
|
Installation type |
Horizontal |
|||||
|
Protection class |
IP54/F1 |
|||||
|
Electrical power |
3 phase 380V/50Hz AC |
|||||
|
7 |
Oil pump motor
|
Spec/Power |
22KW |
|||
|
Installation type |
Horizontal |
|||||
|
Protection class |
IP54/F1 |
|||||
|
Electrical power |
3 phase 380V/50Hz AC |
|||||
|
8 |
Oil pump |
Spec. |
SNE/A280 |
|||
|
outflow |
480ml/turn |
|||||
|
Maximum pressure |
2Mpa |
|||||
|
9 |
Overall size |
3660mm×1420mm×2078mm |
||||
|
10 |
Weight |
4400kg |
||||
|
11 |
Shell type |
open/seal(can be select) |
||||
|
12 |
Output |
≥12T/h(sea salt) |
||||
|
13 |
Moisture content after separation: |
4%(sea salt) |
||||
Technical Parameters of PP-60
|
Equipment |
2-stage pusher centrifuge |
|||||
|
Spec. |
PP-60 |
Qty |
set |
|||
|
Technical parameters |
||||||
|
1 |
Basket diameter |
560/630 mm |
||||
|
2 |
Basket Rotate Speed (Max) |
1360 r/min |
||||
|
3 |
Stroke of Pusher Mechanism |
70-80 times/min |
||||
|
4 |
First, second stage mesh aperture (as per the material) |
mm, mm |
||||
|
5 |
G-force |
570-642 |
||||
|
6 |
Main motor
|
Spec/Power |
55KW |
|||
|
Installation type |
Horizontal |
|||||
|
Protection class |
IP54/F1 |
|||||
|
Electrical power |
3 phase 380V/50Hz AC |
|||||
|
7 |
Oil pump motor
|
Spec/Power |
30KW |
|||
|
Installation type |
Horizontal |
|||||
|
Protection class |
IP54/F1 |
|||||
|
Electrical power |
3 phase 380V/50Hz AC |
|||||
|
8 |
Oil pump |
Spec. |
NB5D140F |
|||
|
outflow |
140ml/turn |
|||||
|
Maximum pressure |
8Mpa |
|||||
|
9 |
Overall size |
3127mm × 1700mm × 1955mm |
||||
|
10 |
Weight |
4860kg |
||||
|
11 |
Shell type |
open |
||||
|
12 |
Output |
≥15T/h (Mineral salt) |
||||
|
13 |
Moisture content after separation: |
≤3% |
||||
