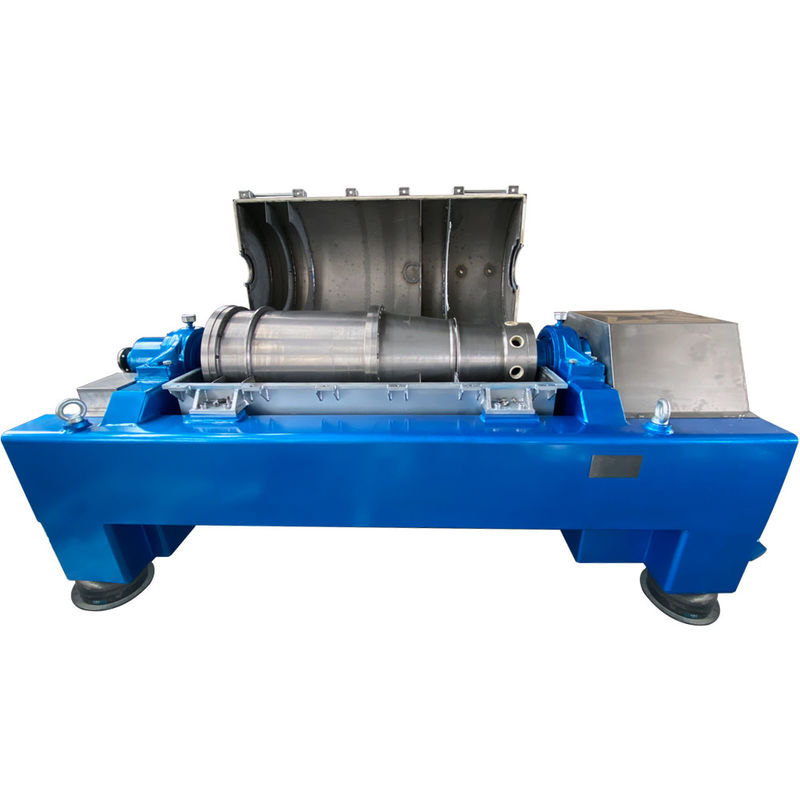

Sedimentation Centrifuge Palm Oil Decanter Centrifuges Used in Palm Oil Factory
Working principle
Taking advantage of the principle that the light liquid, heavy liquid and solid phase, with different density and mutually insoluble in the mixed liquid, gain different sedimentation speed in the centrifugal force field or gravity force field, separating stratification or causing the solid particles in the liquid to deposit can be achieved.
In the gravity force field or centrifugal force field, the light liquid phase, the heavy liquid phase and the solid phase with different density and mutually insoluble in the mixed liquid, respectively gain different sedimentation speed, and thus separate and stratify. In the gravity force field it is called gravity separation, while in the centrifugal force field it is called centrifugal separation.
Gravity separation
On account of difference in density, the mixed liquid in the container, after a period of time, is gradually divided into 2 layers. The heavy phase particle of the mixed liquid deposits to the bottom of the container, while the light phase one suspends to the upper surface. A rather distinctive dividing plane forms
between the light and heavy phases. The separation speed
is affected by the difference in density between the light and heavy phases that make up the mixed liquid.The larger the difference in density is, the faster the separation speed will be.
Technical drawing
| Model |
Diameter (mm) |
Speed (rpm) | G-force |
Capacity (m3/h) |
Main motor Power (kw) |
Assistant motor power (kw) |
Weight (kg) |
Overall Size (L × W × H) (mm) |
| PDC-17-4 | 420 | 3600 | 3042 | 3~15 | 30 | 7.5 | 2230 | 3331 × 990 × 1066 |
| PDC-18-4.4 | 450 | 3300 | 2739 | 10~20 | 37 | 11 | 2739 | 4000 × 1120 × 1239 |
| PDC-20 | 500 | 3200 | 2860 | 5~45 | 55 | 11 | 4400 | 4489 × 1160 × 1350 |
| PDC-21 | 540 | 2800 | 2366 | 15~50 | 45 | 15 | 5290 | 4587 × 1285 × 1368 |
| PDC-24 | 620 | 3200 | 3555 | 15-60 | Hydraulic | 90 | 8000 | 4650 x 2010 x 1200 |
| PDC-28HH | 720 | 2200 | 1975 | 15-80 | 110 | 37 | 9393 | 4800 X 1350 X 1500 |
Structure drawing
Our factory
Zhangjiagang Peony Machinery Co.,ltd was established in 1958, covering an area of 650000 m2, there are 2300 staff and employee in our company, 281 of them are technicians and engineers.It has obtained the approvals and certifications of both ISO9001:2008 quality control system and the military product quality certificate,BV and CE certificates,some of our machines gained the new technology invent patent.
We are one of the world’s leading manufacturers of decanter centrifuge, disc separator and other separation equipment. We focus on food production, environmental protection,energy recycling, chemistry and marine. Now, there are over 150 series of decanter centrifuges and disc separators used home and abroad, Including U.S.A,Canada, Australia, Malaysia and so on totally 50 countries.
We own various kinds of inspection and testing facilities with value over USD 10 million, now 16 testing tables, 6920 gear testing center, X ray detecting machine, high speed dynamic balancing machine, ultrasonic flaw detection machines, etc. We are equipped with complete testing, inspection, analysis control system, advanced testing machines and stimulative working condition test table and automatic control testing system, which guarantees our new product research, processing validation and quality.
We are strongly equipped the robust and precise processing machines from Germany, Italian, England and our domestic famous brand.
Peony are working with the famous company in the world to growing up rapidly and stably. Some as:
With efforts and hardworking of Peony people, we harvested great achievement these years, and turnover reaches to 380 million RMB in the year of 2013, and we expect to carry out 500 million RMB Last year.
Welcome all who are engaged in separation and filtration to work with us, and we are also looking for the qualified world wide agents to provide better service and deep marketing.
