Perforated Basket Salt Centrifuge

Name: Perforated Basket Salt Centrifuge
Brand: ZHANGJIAGANG CITY PEONY MACHINERY CO.,LTD
SKU: PP-40
Price: 115,005.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Peony

Certification: ISO

Model Number: PP-40

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: Standard export packings

Delivery Time: 90 days

Payment Terms: T/T

Supply Ability: 20 sets/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    disk stack centrifuge, sludge dewatering centrifuge


Product Name:	Pusher Centrifuge	Equipment:	2 Stage Pusher Centrifuge
Basket Diameter:	290/360 Mm	Basket Rotate Speed (Max):	2500r/min
Stroke Of Pusher Mechanism:	40-80times/min	Separation Factor:	586-728

Product Name:	Pusher Centrifuge
Equipment:	2 Stage Pusher Centrifuge
Basket Diameter:	290/360 Mm
Basket Rotate Speed (Max):	2500r/min
Stroke Of Pusher Mechanism:	40-80times/min
Separation Factor:	586-728

Description

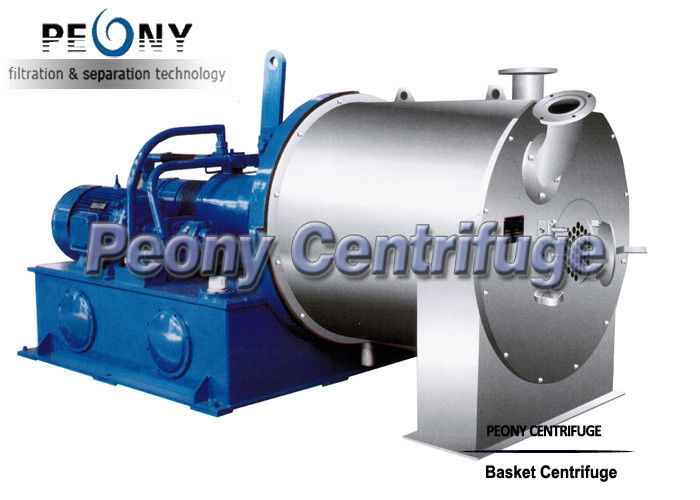

Perforated Basket Salt Centrifuge

2 Stage Pusher Mineral &Sea Salt Centrifuge / Perforated Basket Centrifuge For Cakes

Description:

Model PP-40 Two-stage Pusher Centrifuge is a kind of perforated basket centrifuge, both continuous and effective. The mixture to be separated is fed through the feeding pipe and the distributor continuously and evenly into the first stage basket. Most of the mother-liquor in the feed, acted on by centrifugal force, departs through the sieves into the liquor-collecting casing where it will be discharged out of the machine. The first stage basket rotates and reciprocate, pushing the formed product cake into the second stage basket .The cake can have sufficient retardation in the centrifuge with being acted on by more centrifugal force, and therefore, the desired humidity of the cake can be guaranteed. Afterwards, the cake is continuously discharged out of the basket. In case of high purity for the solid product, the effective washing can be carried out in the centrifuge. If necessary, the washing agent and the mother-liquor can be discharged separately.

Specification:

Equipment		2 stage Pusher Centrifuge
Spec.		PP-40		Qty		set
Technical Parameters
1	Basket diameter				290/360 mm
2	Basket Rotate Speed (Max)				2500rpm
3	Stroke of Pusher Mechanism				40-80 times/min
4	First, second stage mesh aperture (as per the material)				mm, mm
5	Separation Factor				586-728
6	Main motor		Spec/Power		11-15 KW
			Installation type		Horizontal
			Protection class		IP54/F1
			Power supply		3 phase AC 380V/50Hz
7	Oil pump motor		Spec/Power		5.5-7.5 KW
			Installation type		Horizontal
			Protection class		IP54/F1
			Power supply		3 phase AC 380V/50Hz
8	Oil pump		Spec		NB4C100F
			Outflow		100ml/turn
			Max pressure		2.5 Mpa
9	Dimension				2346mm × 1090mm × 1006mm
10	Weight				2600kg
11	Shell type				Open
12	Output				3 T/h
13	Moisture content after separation				≤2.5-3% / 4%
14	Object processed				Mineral salt / Sea salt

More pictures

Perforated Basket Salt Centrifuge 0

Guarantee:
Peony Centrifuge has been dedicated to producing machinery and equipments and carrying out facility

construction, pursuing the best quality and producing the best product at the same time.
We are committed to reward you with a better quality in return for our interest in and faith toward.
We will do our utmost for one more stepping forward, based on our infinite services and trust to customers.

Perforated Basket Salt Centrifuge 8
