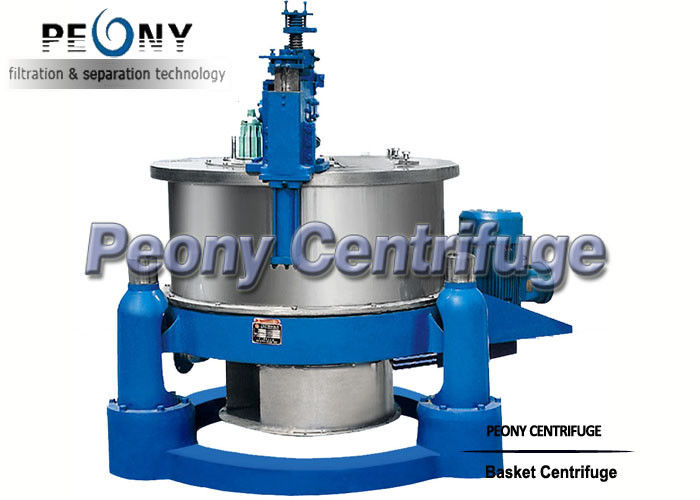

High Automation Chemical Centrifuge , Pharmaceutical Filtering Machine
Features:
1) PSBD series centrifugal machine is a kind of filtering equipment adopting scraper bottom unloading
and interval operation
2) The material enters the rotary drum from the upper
3) Under the function of centrifugal force, the liquid passes through the filtering medium and discharges out of the machine and the solid is left in the rotary drum
4) When the rotary speed reduces, the scraper scrapes the solid material and the material is discharged from the bottom of the machine
5) Advantages: steady operation, convenient operation
6) Can set operation program according to demands, auto finishes feeding material, separating, dewatering, unloading and other processes
7) Can carry out long-distance operation
8) High automation level, large handing capacity and good separation result
9) No base installation
Applications:
1) Suitable for separating suspensions with solid grains larger than 0.01mm
2) Widely used in chemical, pharmaceutical, food, light industry and other trades
3) Most commonly used for gypsum, ferric sulfate, nickel sulphate, copper sulphate, potassium chloride, acetate, borax, soda, rubber additives, dye, plastic raw material, soap, grease, resin, salt, gourmet powder, food additives, vitamins, herbicides, insecticides and dewatering of copper, zinc, aluminum and other mineral powders
Specification:
|
Model |
Basket |
Motor (kw) |
Weight (kg) |
Overall size (L × W × H) (mm) |
||||
|
Diameter (mm) |
Volume (L) |
Capacity (kg) |
Max speed (rpm) |
G-Force |
||||
|
PSBD-140 |
800 |
100 |
140 |
1200 |
645 |
11 |
2500 |
2000 × 1400 × 1700 |
|
PSBD-200 |
1000 |
150 |
200 |
1000 |
560 |
15 |
3500 |
2250 × 1700 × 2000 |
|
PSBD-400 |
1250 |
280 |
400 |
900 |
567 |
18.5 |
4700 |
2600 × 2000 × 2700 |
|
PSBD-540 |
1250 |
400 |
540 |
1000 |
700 |
22 |
5500 |
2600 × 2000 × 3000 |
