PDC Three Phase Decanter Centrifuges Olive Oil Extraction Separator

Product Details

Place of Origin: Jiangsu, China (Mainland)

Brand Name: Peony

Certification: ISO

Model Number: PDC

Payment & Shipping Terms

Minimum Order Quantity: 1set

Packaging Details: Standard wooden case

Delivery Time: 60-75days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 60sets per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    Three Phase Decanter Centrifuges, Olive Oil Decanter Centrifuge Machine, PDC Sludge Decanter Centrifuge


Application:	Olive Oil Extraction	Type:	3phase
Product Type:	Decanter Centrifuge	Model:	PDC Series
Power(W):	Depends On The Models	Voltage:	110,220,380,440,460v
MOC:	SS304, SS316, DSS	Gearbox Torque:	3.5KNm, 5KNm
PLC:	Optional	Warranty:	12 Months

Application:	Olive Oil Extraction
Type:	3phase
Product Type:	Decanter Centrifuge
Model:	PDC Series
Power(W):	Depends On The Models
Voltage:	110,220,380,440,460v
MOC:	SS304, SS316, DSS
Gearbox Torque:	3.5KNm, 5KNm
PLC:	Optional
Warranty:	12 Months

Description

PDC Three Phase Decanter Centrifuges Olive Oil Extraction Separator

Three Phase Decanter Centrifuges Olive Oil Extraction Separator with Good price

Product Description
Decanter centrifuge is a horizontal, continuously working and continuously spiral discharging sedimentation centrifuge.Decanters with slow rotation speeds are normally based on horizontal separation technology. Decanter eusure optimum separation efficiency in the case of suspensions with a very high proportion of solid. They are also used for the extraction constituents from liquids and for concentrating, dewatering and classfying solids.

Our Service
★ 12 months guarantee period from machine arriving date.

☆ Abundant spare parts in stock are available to provide.
★ Our technicians could be dispatched for overseas service.
☆ 7*24 hours technical consultation.
★ Your workers could get trained both in our factory and yours.
☆ Routine tracing till the machine work properly will be done timely.
★ We will remind you to do the normal maintenance.
☆ Your suggestions or any comments & reflection would be treated in priority.
★ Marketing team will visit you during our visit in your country if you require.

Application

Polyoxyethylene resin	Sulphate	Diatomite	Starch
Soy Protein	Peanut protein	Fruit juice	Ammonium acid
Barium carbonate	Barium sulfate	Lit powder	Titanium dioxide
Ore	China clay	Vegetable oil	Citric acid
Waste oil purification	Washing water purification	Distiller's grains	Animal fat
Blood meal	Power plant sludge	Printing and dyeing sludge	Paper sludge
Weather desulfurization sludge	Cryolite flotation liquid	Activated sludge	Ammonia sludge
Car wash sludge	Sludge drilling mud	Coal flotation waste	Etc.

Decanter Design
Type: 2-phase separation
Material: high quality stainless steel for all wet parts
Bearing: SKF brand. A special selection and arrangement of bearings provides for long life and exceptional reliability
Wear protection: welded hard facing or spray coating, ceramic technology.

PDC Three Phase Decanter Centrifuges Olive Oil Extraction Separator 0

Parameters

Model	Diameter (mm)	Speed (rpm)	G-force	Capacity (m3/h)	Main motor Power (kw)	Assistant motor power (kw)	Weight (kg)	Overall Size (L × W × H) (mm)
PNX-409	250	5500	3493	0.2-2	15	4	1020	2500 x 650 x 760
PNX-414	355	4000	3175	1~10	18.5	7.5	2035	2765 × 920 × 1060
PNX-416	355	4000	3175	1~15	18.5	7.5	2122	3065 × 920 × 1060
PNX-418	355	4000	3175	1~25	22	7.5	2222	3365 × 920 × 1060
PDC-17-4	420	3600	3042	3~15	30	7.5	2230	3331 × 990 × 1066
PDC-18-4.4	450	3300	2739	10~20	37	11	2739	4000 × 1120 × 1239
PDC-20	500	3200	2860	5~45	55	11	4400	4489 × 1160 × 1350
PDC-21	540	2800	2366	15~50	45	15	5290	4587 × 1285 × 1368
PDC-24	620	3200	3555	15-60	Hydraulic	90	8000	4650 x 2010 x 1200
PDC-28HH	720	2200	1975	15-80	110	37	9393	4800 X 1350 X 1500

Pictures

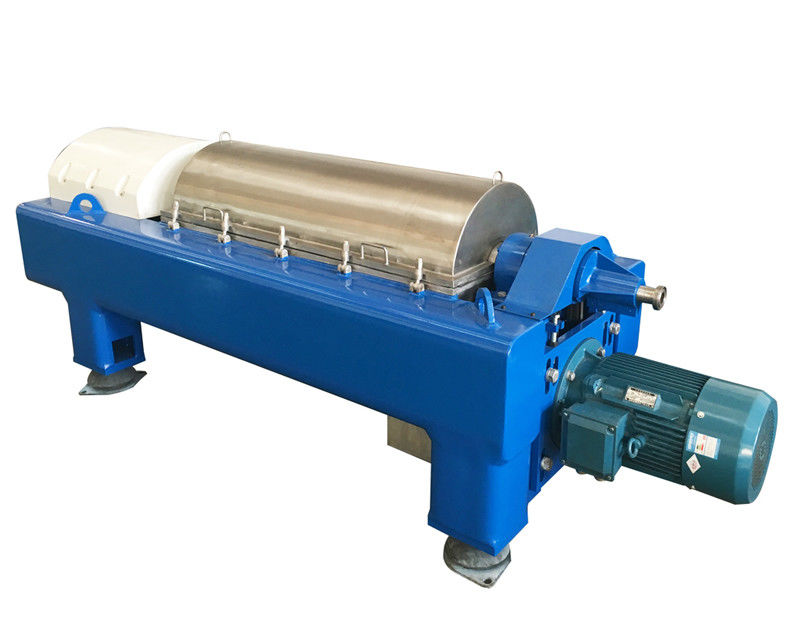

PDC Three Phase Decanter Centrifuges Olive Oil Extraction Separator 1
