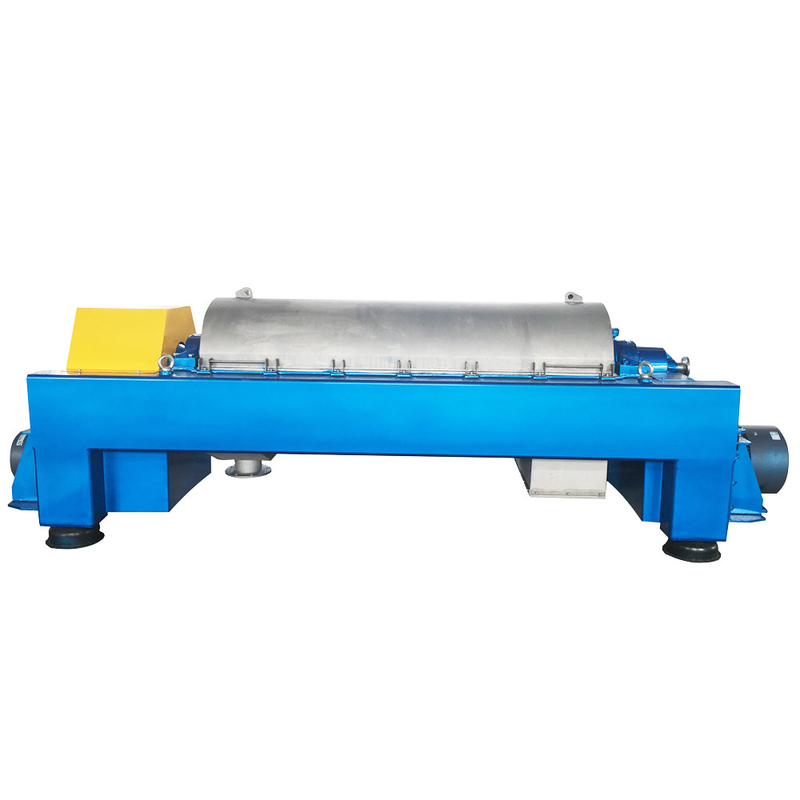

4000RPM Oil Extraction Sedimantation Centrifuge With Disc Separator

4000RPM Oil Extraction Sedimantation Centrifuge With Disc Separator

4000RPM Oil Extraction Sedimantation Centrifuge With Disc Separator
4000RPM Oil Extraction Sedimantation Centrifuge With Disc Separator
4000RPM Oil Extraction Sedimantation Centrifuge With Disc Separator
Product Details:
Place of Origin: China
Brand Name: Peony
Certification: ISO
Model Number: PDCS
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD25000-145000/SET FOB SHANGHAI
Packaging Details: Standard export package, polywood, fumigated wood, filmed
Delivery Time: 75-90 days after advanced payment
Payment Terms: TT,.LC, Western Union
Supply Ability: 60 sets per month
Contact Now
Detailed Product Description
Application: Liquid-liquid-solid 2 Phase Separation Operation: Automatic Continuous
MOC: Stainless Steel,titanium Bearing: SKF, NSK As Optional
Control Box: With PLC: Optional
Conveyor: Tungsten Carbide Product Name: Sedimantation Centrifuge As Three Phase Decanter Centrifuge With Disc Separator For Oil Extraction
Keyword: Three Phase Decanter Centrifuge For Fish Oil Keyword1: Sedimantation Centrifuge
Keyword2: Three Phase Decanter Centrifuge For Fish Oil Keyword3: Industry Centrifuge Machine
High Light:

Oil Extraction Sedimentation Centrifuge

,

Tungsten carbide Sedimentation Centrifuge

,

4000RPM Disc Separator Centrifuge

Sedimantation Centrifuge As Three Phase Decanter Centrifuge With Disc Separator For Oil Extraction



Brief Introduction

Sedimantation Centrifuge As Three Phase Decanter Centrifuge With Disc Separator For Oil Extraction,the machine starts and speeds up automatically.When the proper working condition are met and the revolving drum reaches the feeding speed,the feeding valve opens and allows suspension which will be separated to enter into the product compartment of the spiral feeder through the feeding pipe.

After the preliminary speed-up,the suspension passes the outlet of compartment and into the drum.Because of centrifugal force, the suspension in the drum is quickly divided into two phases;the heavier solid phase deposits to the inner wall of the drum and driven by the differential gear which results in the non-cynchronous movement between the spiral feeder and the drum,the solid phase will be transferred into the small end for further dehydration and finally discharged through solid phase outlet.The separated liquid flows out though the big end or will be driven out by centrifugal pump.



Main Technical Parameters

Model Drum Dia.(mm) Speed(rpm) Length(mm) G-force Power(kw) Weight(kg) Overall size(L×W×H)(mm)
PDCS-14 355 4000 1600 3180 18.5/7.5 1800 3495 × 840 × 1180
PDCS-16 400 3650 1800 3000 22/15 2500 3890 × 1020 × 1205
PDCS-18 450 3200 2000 2600 37/22 3000 4297 × 1080 × 1385
PDCS-20-4 500 3000 2000 2500 37/30 3800 4330 × 1140 × 1470
PDCS-20-4.4 500 3300 2200 3000
PDCS-20-4.5 500 3000 2250 2500 45/37 4000 4580 × 1140 × 1470
PDCS-21 530 2900 2280 2500 55/45 5000 4924 × 1170 × 1540
PDCS-23 580 3100 2500 3000



Material Choice

According to users' requirement,the product contact parts can be made of austenite stainless steel(321,316L...904L,C2205),Haynes alloy titanic alloy or other anti-erosion materials



Structure Choice

1. Methods of lubrication:

A.Grease lubrication

B.Circular forced lubrication

2. Number of helical blade head is selectable within single head helix,double head helix or multiple head helix

3. Helix surface is coated with high hardness alloy



Centrifuge for continuous separation of solids from liquids such as thickening and dewatering sludge, suspensions with granular solids, clarification of liquids, separating starch, etc. We provide a broad range of DECANTER sizes.

Main Characteristics

1.Continuous working,spiral discharging,high capacity.

2.Controlled by two motors,rovolving drum can be adjustable two stage separately.

3.Wide applicability for chemical,oil,foodstuff,pharmacy industries and green industry in which solid-liquid separation is required.

4.Suitable for various products,capable for separating wide ranging solid phase grains(0.002-2mm),especially when separating solid phase has different size grains

4000RPM Oil Extraction Sedimantation Centrifuge With Disc Separator 0



Structure Drawing

4000RPM Oil Extraction Sedimantation Centrifuge With Disc Separator 1



Special Allocation

Following allocation can be possible to meet customer's demand

1.Frequency conversion plus PLC controlling system

2.Protection system for vibration and temperature rising

3.Feeding speed control

4.Gas-liquid separation device on liquid outlet

5.Three kinds of structure selection of cycloid gear,planetary gear and hydraulic differential. They are used to be transfered the different solid phase by pushing the torque.



Applications

1.Dewatering and thickening of sludge form municipal and industrial waste water, such as : municipal sludge, paper mill sludge, starch sludge, steel mill sludge, printing and dyeing mill sludge, water works sludge, pharmaceutical sludge, PVC sludge, sewage desulfurization sludge, grain stillage, power plant ash sludge, dairy sludge, beer sludge, drilling mud, electroplating liquid, fermented liquid manure, oil refining sludge, soap sludge, leather sludge, and other types of sludge.

2. Chemical or pharmaceutical products such as: butane dicarboxylic acid, alum, aluminum hydroxide, ammonium hydrogen carbonate, ammonium nitrate, ammonium sulphate, anthracene, antibiotics, barium chloride, barium carbonate, barium sulphate, benzene, blood products, blue vitriol, borax, boric acid, calcium carbonate, calcium citrate, calcium hydroxide, calcium nitrate, calcium oxalate, casein, cellulose, chrome yellow, clay, methyl cellulose, corundum, corn plum mule, cooking oil, processed fish, mirabilite, glutamate, hops, pesticide diatomaceous earth, herbicides, tartaric acid, sodium sulphate, sodium phosphate, sodium nitrate, carbon black and others materials.

3. Mineral oil, waste oil, bilge sludge, lubricating oil.

4. Recovering of animal and vegetal basic products (oil/fat, starch, proteins)

5. Beverages (wine, beer, fruit)



Test Equipment

4000RPM Oil Extraction Sedimantation Centrifuge With Disc Separator 2



More pictures

4000RPM Oil Extraction Sedimantation Centrifuge With Disc Separator 3



Certification

4000RPM Oil Extraction Sedimantation Centrifuge With Disc Separator 4

4000RPM Oil Extraction Sedimantation Centrifuge With Disc Separator 5

4000RPM Oil Extraction Sedimantation Centrifuge With Disc Separator 6



Guarantee

Peony Centrifuge has been dedicated to producing machinery and types of equipment and carrying out facility construction, pursuing the best quality and producing the best product at the same time.

We are committed to rewarding you with better quality in return for our interest in and faith.

We will do our utmost for one more stepping forward, based on our infinite services and trust in customers.



Our services

1. 12 months guarantee period from machine arriving date.

2. Abundant spare parts in stock are available to provide.

3. Our technicians could be dispatched for overseas service.

4. 7*24 hours technical consultation.

5. Your workers could get trained both in our factory and yours.

6. Routine tracing till the machine work properly will be done timely.

7. We will remind you to do the normal maintenance.

8. Your suggestions or any comments & reflection would be treated as a priority.

9. Marketing team will visit you during our visit to your country if you require.
