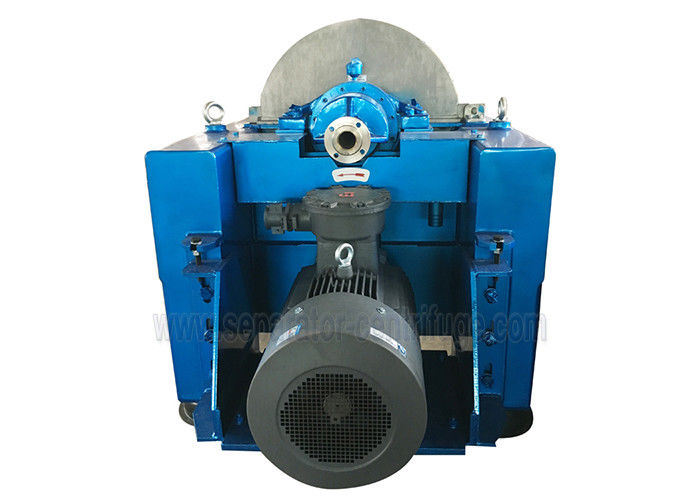

Horizontal Large Volume Solid Bowl Sedimantation Centrifuge Decanter Centrifuge
Introduction
Model PDC centrifuge industry poultry wastewater treatment is the equipment used for continuously separating the materials in the suspension with density difference, by the principle of centrifugal settling. It has such features such as compact structure, continuous operation, smooth running, strong adaptability to the separation material, large landling capacity, convenient maintenance, etc. It is capable to separate the suspension with diameter of the granule of solid phase material greater than 0.005mm and with the concentration ranging from 2% to 60%.
Main technical parameters
| Model |
Diameter (mm) |
Bowl Speed (rpm) |
G-force |
Capacity (m3/h) |
Main Power (kw) |
Weight (kg) |
Overall Size
(L × W × H) (mm) |
| PDC-10 | 250 | 5400 | 4080 | 0.5~5 | 7.5/3 | 1000 | 2410*800*1080 |
| PDC-12 | 300 | 4200 | 3000 | 1~10 | 11/4 | 1400 | 2760*800*1080 |
| PDC-14 | 355 | 4000 | 3180 | 1~20 | 18.5/7.5 | 1800 | 3495*840*1180 |
| PDC-16 | 400 | 3650 | 3000 | 2~25 | 22/7.5 | 2500 | 3890*1020*1205 |
| PDC-18 | 450 | 3450 | 2000 | 3~40 | 37/22 | 3000 | 4297*1080*1385 |
| PDC-20-4 | 500 | 3000 | 2500 | 5~45 | 37/30 | 3800 | 4330*1140*1470 |
| PDC-20-4.5 | 500 | 3000 | 2500 | 8~50 | 45/37 | 4000 | 4580*1140*1470 |
| PDC-21 | 530 | 2900 | 2500 | 15~65 | 45/18.5 | 5000 | 4924*1170*1540 |
| PDC-23 | 580 | 2780 | 2500 | 20~50 | 75/55 | 6500 | 5205*1270*1540 |
| PDC-26 | 650 | 2500 | 2270 | 20~110 | 90/75 | 7000 | 5830*1290*1670 |
Main advantages
1. Continuous feeding, separating and discharging
2. Low energy consumptionApplication
3. Simple operation and easy maintenance
4. CE, ISO, TUV
Allocations
| Property | Description |
| Drive type | Dual drive.Two motors,belt connection |
| Frequency inverters | Dual frequency inverters, ABB, SAMCO or equivalent brand |
| Bearing | SKF or NSK imported |
| Bowl material | SS304/SS316L/DSS2205 with centrifugal casting/forging |
| Scroll material | SS304/SS316L |
| Screw conveyor | SS304/SS316L |
| Screw distribution | SS304/SS316L |
| Flights material | SS304/SS316L |
| Feeding nozzle | SS304/SS316L |
| Big and small end | SS304/SS316L/DSS2205 with forging |
| Top lid material | SS304/SS316L |
| Frame material | CS with painting |
| Paint system | Epoxy paint 25-35um,2nd coating |
| Gear box | Planetary /cycloidal |
| Screw | TC sprayed /flight tiled |
| Pond depth adjustment | Weir plates |
| Differential speed | adjustable |
| Control panel | CS with painting |
| Bowl discharge outlets | Ceramic plates/harden plates ,replaceable |
| Protection class | IP54/IP55 |
| O ring and Gasket | Viton/Buna N |
| Lubrication-bearing | Manual grease lubrication |
| Lubrication-gearbox | Manual lubricant (grease) |
| Certificates supply | Material certificates |
| Bowl/conveyor detecting report | |
| Welding report | |
| Heat treatment report | |
| Balancing report | |
| Commissioning report with empty and water load |
More pictures
Processing equipment
Guarantee
Peony Machinery has been dedicated to producing machinery and equipments and carrying out facility construction, pursuing the best quality and producing the best product at the same time.
We are committed to reward you with a better quality in return for our interest in and faith toward.We will do our utmost for one more stepping forward, based on our infinite services and trust to customers.
