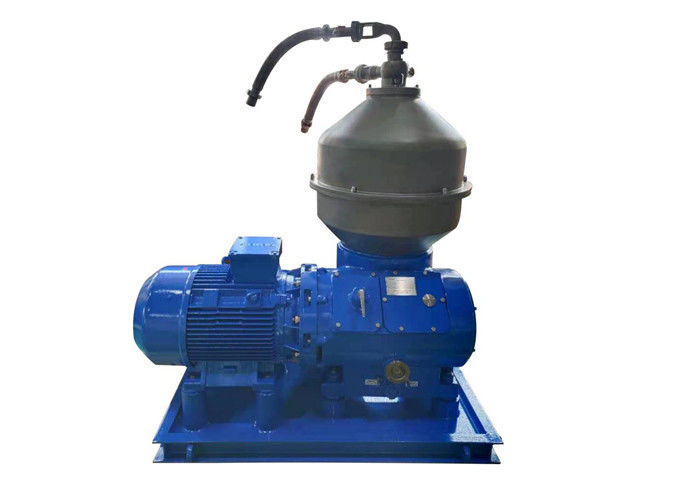

11000L/H Refinery Crude Palm Oil Separator Self Cleaning

11000L/H Refinery Crude Palm Oil Separator Self Cleaning

11000L/H Refinery Crude Palm Oil Separator Self Cleaning
11000L/H Refinery Crude Palm Oil Separator Self Cleaning
11000L/H Refinery Crude Palm Oil Separator Self Cleaning
Product Details:
Place of Origin: China
Brand Name: Peony
Certification: ISO
Model Number: PDSZ
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD20500-92000
Packaging Details: Standard wooden case
Delivery Time: 60-75 days after down payment
Payment Terms: TT,.LC, Western Union
Supply Ability: 80 sets per month
Contact Now
Detailed Product Description
Application: Disc Centrifuge Is Special Equipment For Oil And Fat Refining Operation: Automatic Continuous
Capacity: 1500L/h-11000L/h Discharge Type: Self-cleaning
Motor Power: 7.5 Kw-20kw Bearing: SKF
Item: PAS 710 Crude Oil Refinery Machine Palm Oil 3 Phase Oil Separator Keyword: Crude Oil Refinery Machine
Keyword1: Palm Oil Extraction Separator Keyword2: Crude Oil Extracting Centrifuge
High Light:

11000L/h Palm Oil Separator

,

Self cleaning Crude Oil Separator

,

Self cleaning Palm Oil Separator

PAS 710 Crude Oil Refinery Machine Palm Oil 3 Phase Oil Separator

Process Overview

PAS 710 Crude Oil Refinery Machine Palm Oil 3 Phase Oil Separator, which Designed and manufactured by our factory according to customer's requirements.It is used for clarifying and purifying at same time also used to clarify and purify the similar materials.

This is a new type of partial discharge and high speed centrifugal separator, it has advantages such as it is not necessary to stop feeding and less fresh water and oil consumption.

This separator running smoothly, less vibration and lower noise by dynamic balance. Performance of the separator is good and easy operation. Both manual and auto operation can be done.

11000L/H Refinery Crude Palm Oil Separator Self Cleaning 0

The machine separate oil and fat refining, it has the traits as high rotating speed, operating stability, completely sealed up of the inlet and outlet system, lower noise and fine separating affection. Centripetal pump system designed by our professional designer has the trails as stability outlet pressure, large regulating sphere and operating easily, Also this series separator has professional automatic domination case with safety protection device, advanced automatic vibrating testing instrument can view vibrating number at any time,We can make separating and discharging to the best affection from regulate separating parameter directly at the screen.



Technical Parameter

MODEL:

REFERENCE MODEL PAS 710
Max Speed (Bowl) 5469 RPM
Speed motorshaft 1800 RPM
Frequency 60 Hz
Recommended Power 45 kW
Max Density of Feed 1200 kg/m3
Max Density of Sediment 1700 kg/m3
Process Temperature 0/100 °C
Recovered Discharge Type Centripetal Pump
Effluent Discharge Tyoe Open
Number of Nozzles 9
Motor Power 45 kW
Motor Current 77.4 amp
Motor Frequency 1776 RPM



PEONY SIMILAR MODEL:

Capacity 15000L/h
Input pressure 0.05-01.Mpa
Light liquid discharge port pressure ≤ 0.2Mpa
Start type Frequency conversion start
Discharge type Nozzle discharge
N.W. 1160kg
Overall dimension (L × W × H) 1438mm × 1219mm × 1629mm
Motor Power 30kw/50HZ/380V
Load vibration intensity ≤ 2.8mm/s
Noise ≤ 85dB(A)



Range of Application

Widely used in health products manufacturing, medicine, functional beverage production, dairy beverage, tea, fruit, juice, steel, mechanical processing, biotechnology, wine manufacturing and other industries.



Product Features

1. Flavonoids, glycosides,polyphenol and other bioactive substances were extracted from animal and plant raw materials

2. Separate oxidized particles,mechanical impurities and moisture from oil products,keep the cleanliness and qualified standards of lubricating oil,and prolong the service life of equipment

3. Separation,concentration, clarification and purification of extracts from Chinese herbal medicines and natural plants

4. Separation of suspended solids in wine can shorter clarification time of raw wine and purification of ripe wine



Customer Site

11000L/H Refinery Crude Palm Oil Separator Self Cleaning 1



11000L/H Refinery Crude Palm Oil Separator Self Cleaning 2





Certification

11000L/H Refinery Crude Palm Oil Separator Self Cleaning 3



Guarantee

Peony Centrifuge has been dedicated to producing machinery and types of equipment and carrying out facility construction, pursuing the best quality and producing the best product at the same time.
We are committed to rewarding you with better quality in return for our interest in and faith.
We will do our utmost for one more stepping forward, based on our infinite services and trust in customers.



Our service

1. 12 months guarantee period from machine arriving date.

2. Abundant spare parts in stock are available to provide.

3. Our technicians could be dispatched for overseas service.

4. 7*24 hours technical consultation.

5. Your workers could get trained both in our factory and yours.

6. Routine tracing till the machine work properly will be done timely.

7. We will remind you to do the normal maintenance.

8. Your suggestions or any comments & reflection would be treated as a priority.

9. Marketing team will visit you during our visit to your country if you require.
