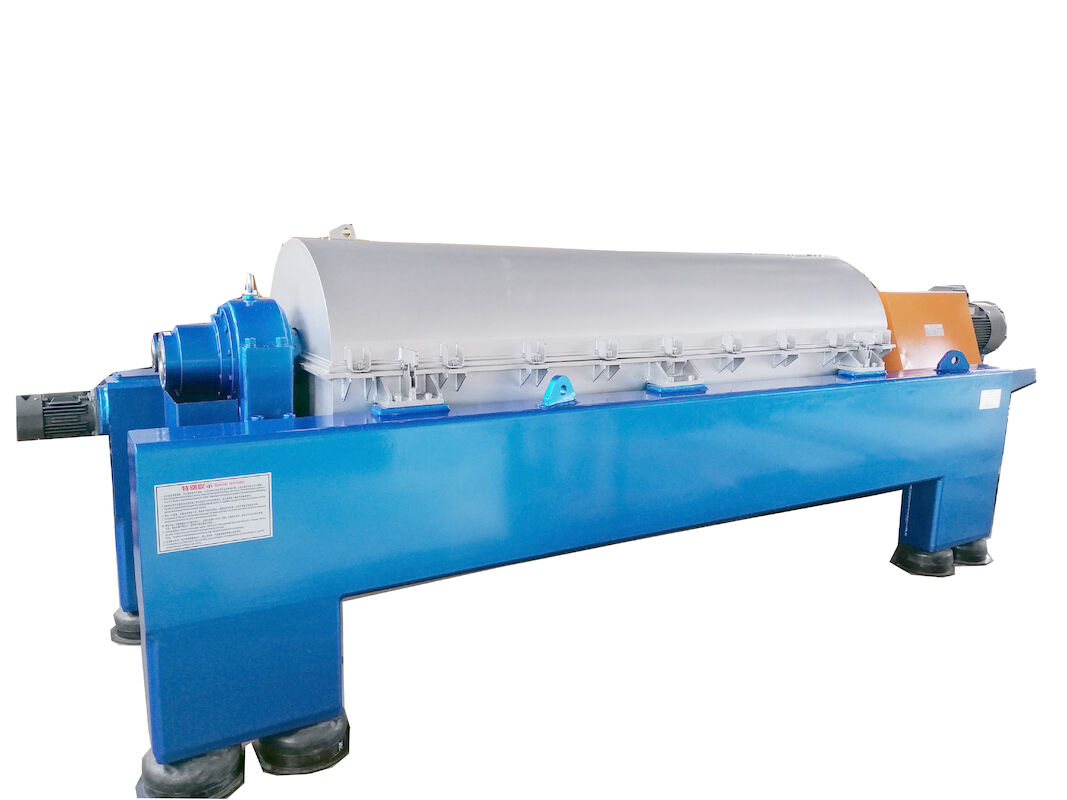

Dual Phase Steel PANX750CS Palm Oil Separation Sedimantation Centrifuge
Brief Introduction
Dual Phase Steel Palm Oil Separation Sedimantation Centrifuge for continuous separation of solids from liquids such as thickening and dewatering sludge, suspensions with granular solids, clarification of liquids, separating starch, etc. We provide a broad range of DECANTER sizes.
Which is similar with PANX750CS,ours is PDCS-21-W
| REFERENCE MODEL | PANX750CS | |
| Mill Line Capacity | 60 | mt FFB/h |
| Sludge Generation Factor | 0.8 | m3/FFB |
| Machine Capacity | 48 | m3/h |
| Phase 1 Output (Light) | High Purity Oil, approx 99% dilution | |
| Phase 2 Output (heavy) | Water with low % of oil | |
| Phase 3 Output | Solids | |
| Goal Minimum Oil Loss | 0.35% | Oil / mt of FFB |
Beach angle:20°
Main Characteristics
1.Continuous working,spiral discharging,high capacity.
2.Controlled by two motors,rovolving drum can be adjustable two stage separately.
3.Wide applicability for chemical,oil,foodstuff,pharmacy industries and green industry in which solid-liquid separation is required.
4.Suitable for various products,capable for separating wide ranging solid phase grains(0.002-2mm),especially when separating solid phase has different size grains
Main Technical Parameters
| Model | Drum | G-force |
Capacity (m3/h) |
Power (kw) |
Weight (kg) |
Overall size (L×W×H) (mm) |
||
|
Diameter (mm) |
Speed (rpm) |
Length (mm) |
||||||
| PDC-10-W | 250 | 5400 | 1000 | 4080 | 0.5~5 | 7.5/3 | 1000 | 2410 × 800 × 1080 |
| PDC-12-4.5-W | 300 | 4200 | 1350 | 3000 | 1~10 | 11/4 | 1400 | 2760 × 800 × 1080 |
| PDC-14-W | 355 | 4000 | 1600 | 3180 | 1~20 | 18.5/7.5 | 1800 | 3495 × 840 × 1180 |
| PDC-16-W | 400 | 3650 | 1800 | 3000 | 2~25 | 22/7.5 | 2500 | 3890 × 1020 × 1205 |
| PDC-18-4.4-W | 450 | 3450 | 2000 | 3000 | 3~35 | 37/22 | 3000 | 4297 × 1080 × 1385 |
| PDC-18-4.8-W | 450 | 3450 | 2150 | 3000 | 4~40 | 37/22 | 3200 | 4447 × 1080 × 1385 |
| PDC-20-4-W | 500 | 3000 | 2000 | 2500 | 5~45 | 37/30 | 3800 | 4330 × 1140 × 1470 |
| PDC-20-4.5-W | 500 | 3000 | 2250 | 2500 | 8~50 | 45/37 | 4000 | 4580 × 1140 × 1470 |
| PDC-21-W | 530 | 2900 | 2280 | 2500 | 15~65 | 45/18.5 | 5000 | 4924 × 1170 × 1540 |
| PDC-23-W | 580 | 2780 | 2500 | 2500 | 20~80 | 75/55 | 6500 | 5205 × 1270 × 1540 |
| PDC-26-W | 650 | 2500 | 2800 | 2270 | 20~110 | 90/75 | 7000 | 5830 × 1290 × 1670 |
With disc separator,nozzler separator
Our model is Disc separator PDSP15000-N,similar with PAS 710
| REFERENCE MODEL | PAS 710 | |
| Max Speed (Bowl) | 5469 | RPM |
| Speed motorshaft | 1800 | RPM |
| Frequency | 60 | Hz |
| Recommended Power | 45 | kW |
| Max Density of Feed | 1200 | kg/m3 |
| Max Density of Sediment | 1700 | kg/m3 |
| Process Temperature | 0/100 | °C |
| Recovered Discharge Type | Centripetal Pump | |
| Effluent Discharge Tyoe | Open | |
| Number of Nozzles | 9 | |
| Motor Power | 45 | kW |
| Motor Current | 77.4 | amp |
| Motor Frequency | 1776 | RPM |
Material Choice
According to users' requirement,the product contact parts can be made of austenite stainless steel(321,316L...904L,C2205),Haynes alloy titanic alloy or other anti-erosion materials
Structure Choice
1. Methods of lubrication:
A.Grease lubrication
B.Circular forced lubrication
2. Number of helical blade head is selectable within single head helix,double head helix or multiple head helix
3. Helix surface is coated with high hardness alloy
Working Principle
1)The machine starts and speeds up automatically.
2)When the proper working condition are met and the revolving drum reaches the feeding speed,the feeding valve opens and allows suspension which will be separated to enter into the product compartment of the spiral feeder through the feeding pipe.
3)After the preliminary speed-up,the suspension passes the outlet of compartment and into the drum.Because of centrifugal force, the suspension in the drum is quickly divided into two phases;the heavier solid phase deposits to the inner wall of the drum and driven by the differential gear which results in the non-cynchronous movement between the spiral feeder and the drum,the solid phase will be transferred into the small end for further dehydration and finally discharged through solid phase outlet.
4)The separated liquid flows out though the big end or will be driven out by centrifugal pump.
Structure Drawing
Special Allocation
Following allocation can be possible to meet customer's demand
1.Frequency conversion plus PLC controlling system
2.Protection system for vibration and temperature rising
3.Feeding speed control
4.Gas-liquid separation device on liquid outlet
5.Three kinds of structure selection of cycloid gear,planetary gear and hydraulic differential. They are used to be transfered the different solid phase by pushing the torque.
Applications
1.Dewatering and thickening of sludge form municipal and industrial waste water, such as : municipal sludge, paper mill sludge, starch sludge, steel mill sludge, printing and dyeing mill sludge, water works sludge, pharmaceutical sludge, PVC sludge, sewage desulfurization sludge, grain stillage, power plant ash sludge, dairy sludge, beer sludge, drilling mud, electroplating liquid, fermented liquid manure, oil refining sludge, soap sludge, leather sludge, and other types of sludge.
2. Chemical or pharmaceutical products such as: butane dicarboxylic acid, alum, aluminum hydroxide, ammonium hydrogen carbonate, ammonium nitrate, ammonium sulphate, anthracene, antibiotics, barium chloride, barium carbonate, barium sulphate, benzene, blood products, blue vitriol, borax, boric acid, calcium carbonate, calcium citrate, calcium hydroxide, calcium nitrate, calcium oxalate, casein, cellulose, chrome yellow, clay, methyl cellulose, corundum, corn plum mule, cooking oil, processed fish, mirabilite, glutamate, hops, pesticide diatomaceous earth, herbicides, tartaric acid, sodium sulphate, sodium phosphate, sodium nitrate, carbon black and others materials.
3. Mineral oil, waste oil, bilge sludge, lubricating oil.
4. Recovering of animal and vegetal basic products (oil/fat, starch, proteins)
5. Beverages (wine, beer, fruit)
Processing Equipment
Test Equipment
More pictures
Certification
Guarantee
Peony Centrifuge has been dedicated to producing machinery and types of equipment and carrying out facility construction, pursuing the best quality and producing the best product at the same time.
We are committed to rewarding you with better quality in return for our interest in and faith.
We will do our utmost for one more stepping forward, based on our infinite services and trust in customers.
Our services
1. 12 months guarantee period from machine arriving date.
2. Abundant spare parts in stock are available to provide.
3. Our technicians could be dispatched for overseas service.
4. 7*24 hours technical consultation.
5. Your workers could get trained both in our factory and yours.
6. Routine tracing till the machine work properly will be done timely.
7. We will remind you to do the normal maintenance.
8. Your suggestions or any comments & reflection would be treated as a priority.
