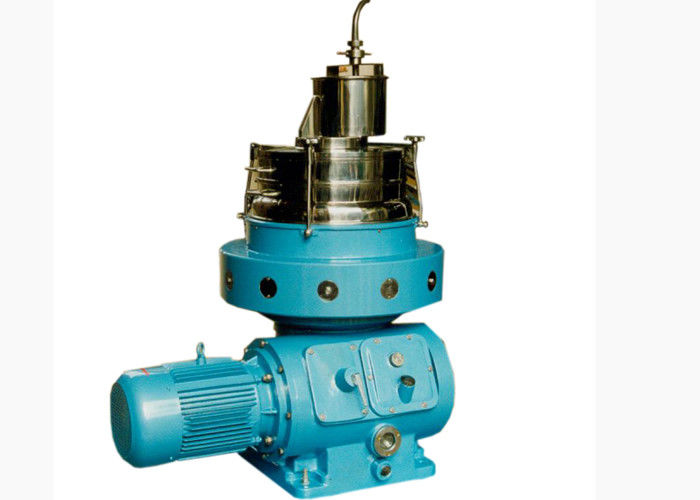

Latex Rubber Continuous Disc Stack Centrifuges Manual Discharge

Latex Rubber Continuous Disc Stack Centrifuges Manual Discharge

Latex Rubber Continuous Disc Stack Centrifuges  Manual Discharge
Latex Rubber Continuous Disc Stack Centrifuges  Manual Discharge
Latex Rubber Continuous Disc Stack Centrifuges  Manual Discharge
Product Details:
Place of Origin: China
Brand Name: Peony
Certification: ISO9001&ISO14001,CE
Model Number: PDSLA-400/600
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Standard export packing
Delivery Time: 30days
Payment Terms: TT,.LC, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 100sets per month
Contact Now
Detailed Product Description
Key Words: Latex Rubber Centrifuge Usage: For Concentrate Natural Latex
Discharge: Manual Discharge Power: 11kw
Type: Disc Separator Colour: Blue Or Green
Standard: G.B. Capacity: 400l~600l
Separation: Solid Liquid Separation
High Light:

Latex Rubber Disc Stack Centrifuges

,

Latex continuous disc stack centrifuge

,

Manual Discharge continuous disk stack centrifuge



Rubber Factory Use Latex Rubber Centrifuge Disc Stack Centrifuges Made in China




 Description



The natural latex is from rubber tree, milk white , solid content is 30%~40%, and the average diameter of solid is 1.06um. The fresh natural latex contain latex 27%~41.3%(m/m) ,water 44%~70% ,protein 0.2%~4.5% ,natural resin 2%~5% ,saccharides 0.36%~4.2% and ash 0.4% . To facilitate transportation and processing, natural rubber latex should be concentrated to the solid content of 60% by adopting the method of centrifugal or evaporation. so it also known as concentrated latex.



Latex Concentration Centrifuge model PDSLA-400/600 is suitable for concentrating and purifying of the natural latex.It can separate the latex into the cream and skim,as well as eliminate the solid impurities at the same time.This model of separator is provided with the following advantages:inverter start-up,el.magnetic brake,short stopping-and long effective separating time,large treatment capacity,good separating efficiency.It is really a excellent equipment for the latex production.



Latex Concentration Centrifuge model PDSLA-400/600 is suitable for concentrating and purifying of the natural latex.It can separate the latex into the cream and skim,as well as eliminate the solid impurities st the same time. It is really a excellent equipment for the latex production.




 Main Technical Specification



Model

PDSLA-400/600

Rated capacity (L/h)

400-600

Motor power (kw)

11.0

Net Weight (kg)

1100

Gross Weight (kg)

1550

Dimension (L×W×H)

1260*930*1700

Dimension of package (L×W×H)

1570*1430*1900





 Advantages



Inverter start-up,

El.magnetic brake,

Short stopping-and long effective separating time,

Large treatment capacity,

Good separating efficiency.





Dimensions

Latex Rubber Continuous Disc Stack Centrifuges  Manual Discharge 0

Installation
Latex Rubber Continuous Disc Stack Centrifuges  Manual Discharge 1



 Process Flow Chart
Latex Rubber Continuous Disc Stack Centrifuges  Manual Discharge 2





 Pictures


Latex Rubber Continuous Disc Stack Centrifuges  Manual Discharge 3
Latex Rubber Continuous Disc Stack Centrifuges  Manual Discharge 4


 Guarantee



Latex Rubber Continuous Disc Stack Centrifuges  Manual Discharge 5







 Guarantee


Peony Centrifuge has been dedicated to producing machinery and equipments and carrying out facility construction, pursuing the best quality and producing the best product at the same time.
We are committed to reward you with a better quality in return for our interest in and faith toward.
We will do our utmost for one more stepping forward, based on our infinite services and trust to customers.





 Processing equipment



Latex Rubber Continuous Disc Stack Centrifuges  Manual Discharge 6





 Our factory



Zhangjiagang Peony Machinery Co.,ltd was established in 1958, covering an area of 650000 m2, there are 2300 staff and employee in our company, 281 of them are technicians and engineers.It has obtained the approvals and certifications of both ISO9001:2008 quality control system and the military product quality certificate,BV and CE certificates,some of our machines gained the new technology invent patent.

We are one of the world’s leading manufacturers of pusher centrifuge,salt production line etc. We focus on food production, environmental protection,energy recycling, chemistry and marine. Now, there are over 150 series of decanter centrifuges and disc separators used home and abroad, Including U.S.A,Canada, Australia, Malaysia and so on totally 50 countries.

We own various kinds of inspection and testing facilities with value over USD 10 million, now 16 testing tables, 6920 gear testing center, X ray detecting machine, high speed dynamic balancing machine, ultrasonic flaw detection machines, etc. We are equipped with complete testing, inspection, analysis control system, advanced testing machines and stimulative working condition test table and automatic control testing system, which guarantees our new product research, processing validation and quality.

We are strongly equipped the robust and precise processing machines from Germany, Italian, England and our domestic famous brand.
