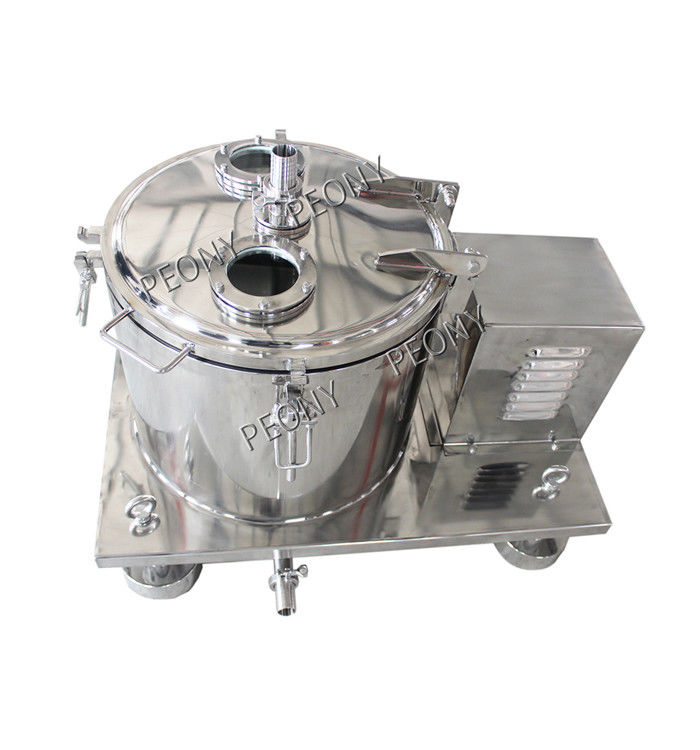

Plate Top Discharge Basket Centrifuge For Used in Food, Chemical Applications
Applications
It is applicable to the filtrating of suspension containing granules and can also be used for the ne granules as well as toxic and flammable materials. It has found wide applications in such trades as chemical, pharmacy, food, light industry, etc. for example: gypsum, thiamine, mirabilite, ferric sulfate, copper sulfate, nickel sulfate, potassium chloride, acetic acid, borax, soda, rubber additive, dye, plastic raw material, soap, grease, all kinds of resins, food salt, sodium glutamate, food additives, starch sugar-making, vitamins, antibiotics, herbicide, insecticide, the dehydration of such mineral fines as copper, zinc, aluminum, etc.
Specifications
| Type | Drum |
Power (kw) |
Weight (kg) |
Overall size (L × W × H) (mm) |
||||
|
Diameter (mm) |
Volume (L) |
Capacity (kg) |
Speed (rpm) |
G-force | ||||
| PPTD-10 | 300 | 5 | 10 | 2500 | 1050 | 1.1 | 180 | 890 × 600 × 500 |
| PPTD-25 | 450 | 20 | 25 | 1900 | 910 | 1.5 | 250 | 980 × 650 × 870 |
| PPTD-50 | 600 | 40 | 50 | 1500 | 756 | 3 | 800 | 1300 × 880 × 900 |
| PPTD-135 | 800 | 100 | 135 | 1200 | 645 | 5.5 | 1300 | 1800 × 1200 × 1140 |
| PPTD-135-NA | 800 | 100 | 135 | 1500 | 1008 | 7.5 | 1300 | 1800 × 1200 × 1140 |
| PPTD-200 | 1000 | 150 | 200 | 1000 | 560 | 7.5 | 2000 | 2050 × 1500 × 1220 |
| PPTD-200-NA | 1000 | 150 | 200 | 1200 | 706 | 11 | 2000 | 2050 × 1500 × 1220 |
| PPTD-300 | 1200 | 250 | 300 | 800 | 431 | 11 | 2500 | 2350 × 1650 × 1370 |
Working steps
1. System loading: A pre-loaded closed filter bag is placed into the basket.
2. Program Menu: The 'Spray Wash' or 'Agitation Wash' program is selected on the HMI where the RPM and cycle times are set to the operator’s specifications.
3. Fill: Alcohol is connected from source tank into the centrifuge.
4. The Wash cycle: The plant material undergoes an agitated wash with a set number of bi-directional agitations
5. System Draining: When the wash cycle is complete, the outlet valve is manually opened and theliquid drained. The alcohol wash is pumped to a properly rated storage reservoir for further processing.
6. Spin Dry Cycle: The 'Spin Dry' menu is selected on the HMI and the drying cycle is started. The wet plant solids are spun dry of the remaining alcohol mixture within.
7. System Unloading: Upon completion of the 'Dry cycle', centrifuge is unloaded by taking the filter bag out from the basket.
8. Repeat Process.
Pictures
Guarantee
Peony Centrifuge has been dedicated to producing machinery and equipments and carrying out facility construction, pursuing the best quality and producing the best product at the same time.
We are committed to reward you with a better quality in return for our interest in and faith toward.
We will do our utmost for one more stepping forward, based on our infinite services and trust to customers.
Service
1. 12 months guarantee period from machine arriving date.
2. Abundant spare parts in stock are available to provide.
3. Our technicians could be dispatched for overseas service.
4. 7*24 hours technical consultation.
5. Your workers could get trained both in our factory and yours.
6. Routine tracing till the machine work properly will be done timely.
7. We will remind you to do the normal maintenance.
8. Your suggestions or any comments & reflection would be treated in priority.
9. Marketing team will visit you during our visit in your country if you require.
