Highlight:
Ammonium Sulfate Dewatering Centrifuge
, filter Continuous Discharge centrifuge
, dewatering Continuous Discharge centrifuge
Application: |
Ammonium Sulfate Dewatering |
Operation: |
Continuous Discharge |
Technique: |
Ferrum |
Output Capacity: |
1T/h~80T/H |
MOC: |
SS304, SS316L, DSS And Optional |
Bearing: |
SKF, NSK As Optional |
Keyword: |
Two Stage Pusher Centrifuge |
Product Name: |
Two Stage Pusher Centrifuge For Ammonium Sulfate Dewatering |
Ammonium Sulfate Dewatering Continuous Discharge Chemical Centrifuge

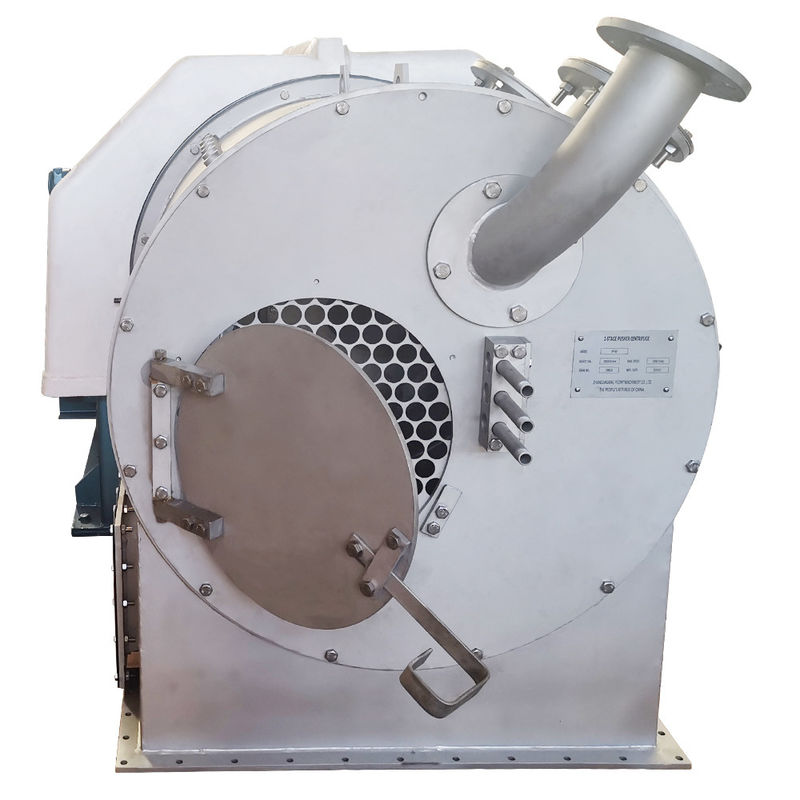

Two-Stage Pusher Centrifuge For Ammonium Sulfate Dewatering
Description
PP series centrifuge is a kind of filter centrifuge that adopts continuously feeding and intermittently pushing out. It can carry all procedures as feeding, separating, washing, discharging and etc. at a full speed.
Features
1. It can be operated continuously and steadily, which capacity is great.
2. Because of its high separating factor, it can be dehydrated fully in the two drums. So the filter cake will contain less moisture.
3. While there is a high demand for the purity of the products, the centrifuge can wash them and drain out the washing liquid and the mother liquid separately.
4. Low and even consumption of the power.
Standards
1. Technology is higher than TB/T447-92, and adopt international standard, Germany standard, and Ferrum standard. The design, manufacture, material, test, and inspection are in accordance with the standard JB/T4063, JB/T447, and the effective latest version of national standard, industry standard, and enterprise standard.
2. The quality of all the provided equipment and material should be in accordance with the adopted rules and standards.
Technical parameters
| Model |
PP-25 |
PP-40 |
PP-50 |
PP-60 |
PP-85 |
PP-100 |
| Basket diameter (mm) |
200/251 |
290/360 |
438/500 |
560/630 |
738/820 |
920/1000 |
|
Stroke of the pusher mechanism
(times/min)
|
35-52 |
40-80 |
40-80 |
70-80 |
30-108 |
30-80 |
| Machine speed (rpm) |
3000 |
2500 |
2000 |
1360 |
1500 |
1300 |
| Operative oil pressure (Mpa) |
2.5 |
2.5 |
2 |
8 |
8 |
12 |
| The motor of the oil pump (kW) |
4 |
5.5-7.5 |
22 |
13-30 |
22-45 |
30-90 |
| Main motor (kW) |
7.5 |
11-15 |
37-45 |
55 |
45-100 |
55-132 |
| Output (t/h) |
~1.5 |
5-7 |
12 |
20 |
25-65 |
30-75 |
| Sieve slot |
To be decided |
| Operation temp. (°C) |
Below 105 |
Below 105 |
Below 105 |
Below 105 |
Below 105 |
Below 105 |
| Overall dimension (mm) |
2155*1320*950 |
2346*1090*1006 |
3660*1420*2078 |
3127*1700*1955 |
3990*2000*1530 |
4200*2400*2200 |
| Weight (kg) |
1275 |
2600 |
4400 |
4860 |
6250 |
8900 |
