Product Details
Place of Origin: Jiangsu
Brand Name: Peony
Certification: CE,ISO
Model Number: PPTDS
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: FOB USD 15000~45000
Packaging Details: Export Wooden packing
Delivery Time: 35 working days
Payment Terms: L/C, T/T
Condition: |
New |
Warranty: |
12 Months |
Voltage: |
220/240/380/400/415/480V |
Power(w): |
3,5.5,11,15 KW |
After-sales Service Provided: |
Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Video Technical Support,Field Maintenance And Repair Service |
Type: |
Separation Of Solid-liquid Centrifuge |
Certification: |
CE,ISO,ISO9001 |
Application: |
Fine Chemical,Food,Pharmacy,etc |
Material: |
Stainless Steel,316L,SS304,Halar,etc |
Operation: |
Easy Operation,PLC System,Manual Operation |
Condition: |
New |
Warranty: |
12 Months |
Voltage: |
220/240/380/400/415/480V |
Power(w): |
3,5.5,11,15 KW |
After-sales Service Provided: |
Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Video Technical Support,Field Maintenance And Repair Service |
Type: |
Separation Of Solid-liquid Centrifuge |
Certification: |
CE,ISO,ISO9001 |
Application: |
Fine Chemical,Food,Pharmacy,etc |
Material: |
Stainless Steel,316L,SS304,Halar,etc |
Operation: |
Easy Operation,PLC System,Manual Operation |
Industrial Top Discharge PPTDS Pharmaceutical Food Basket Centrifuge Machine
Description of Food and Pharmaceutical Centrifuge
PPTDS centrifuge is a kind of flat-plate clearance operation filtration equipment. Materials are fed into the drum the feeding tube on sealed enclosure, under the centrifugal force field, the liquid phase discharged through the filter media machine while solid-phase materials are trapped in the drum, and then opened the lid to discharge from the top after the machine stops. The case, including lid can be manually or electrically turned over 90°degree, thereby exposing the entire drum part. It's easy to unload, clean and replace filter media and do other operations. Stainless steel parts of the machine are all polished, and there is no blind angle therefore it's easy to clean and effectively prevent accumulation of residue. In addition, since centrifuge drum is mounted directly on the motor shaft without clutch, V-belt, mechanical brake components, especially applicable to inflammable, explosive, poisonous occasions.
Technical parameters of Industrial Food Centrifuge
Model | PPTDS-450 | PPTDS-600 | PPTDS-800 | PPTDS-1000 | PPTDS-1200 | PPTDS-1250 |
Maximum capacity(Kg) | 30 | 68 | 135 | 200 | 300 | 400 |
Motor power(Kw) | 3 | 3 | 5.5/7.5 | 11 | 15 | 18.5 |
Application of Food and Pharmaceutical Centrifuge
Widely used in pharmacy, light industry, food and chemical sectors, including the fine-grained solid phase suspension separation and dehydration. Such as food additives, chemical seasonings, sodium glutamate, pesticides, antibiotics, pharmaceutical intermediates, vitamins, Chinese medicine, activated carbon, dyes intermediates, pigments and so on.
Main Characteristics of Pharmaceutical Basket Centrifuge
Main Characteristics
1.The parts contacted with material are all stainless steel,with good erosion-proof quality
2.The surface of the main accessaries of equipments are polished accurately, there is no angel in inner structure,which can clean easily
3.The shell cover can be turned over more than 90 the drum can be exposed wholely, the bottom of drum can be touched,which can make cleaning and exchange filter cloth conveniently
4.Sealed belt lid,motor lid, changing nozzle of setting gas are adopted by the parts of transmission which can avoid powder pollution rising from belts rubbing.

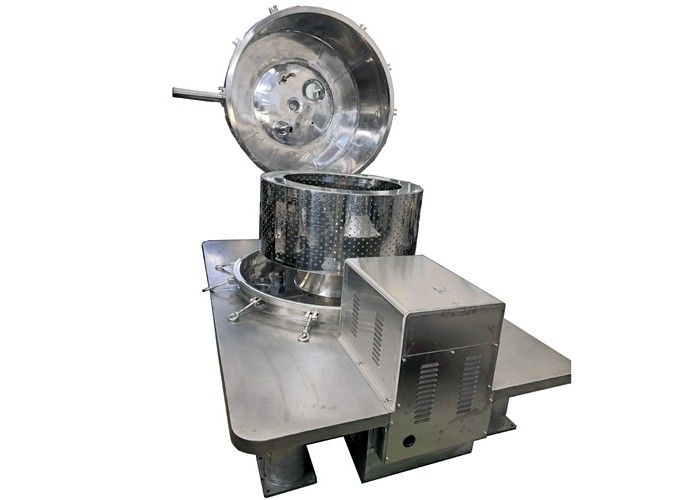

Pictures of Basket Centrifuge
About us
Zhangjiagang City Peony Machinery Co., Ltd., founded as a special producing enterprise of separating equipment in 2008, is the well-known manufacturer and service provider of separation and filtration in China. Peony dedicated to solving the solid-liquid, liquid-liquid separation problems for clients all over the world and providing separating and filtering mechanical products with convenient operation, high efficiency, reliable quality, and excellent service worldwide. Being a group corporation, Peony has 3 producing bases in China - Zhangjiagang, Nanjing, and Hangzhou city.
After sales
*12 months guarantee period from machine arriving date.
*Abundant spare parts in stock are availble to provide.
*Our technicians could be dispatched for overseas service.
*7*24 hours technical consultation.
*Your workers could get trained both in our factory and yours.
*Routine tracing till the machine work properly will be done timely.
*We will remind you to do the normal maintenance.
*Your suggestions or any comments & reflection would be treated in priority.
*Marketing team will visit you during our visit to your country if you require.
