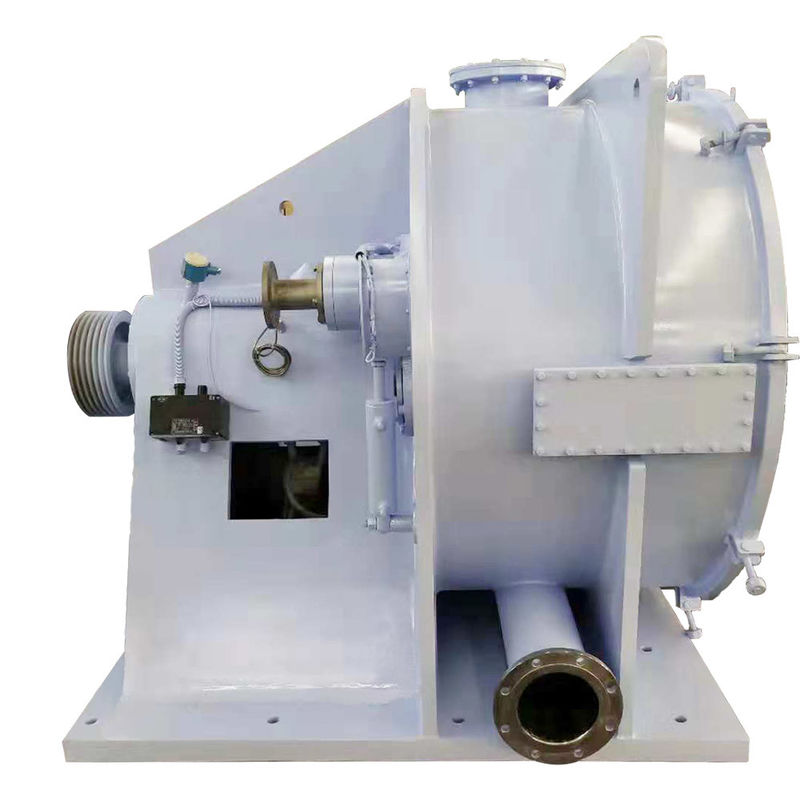

Stainless Steel 304 Chemistry Pharmacy Shaking Bag Lifting  Centrifuge

Stainless Steel 304 Chemistry Pharmacy Shaking Bag Lifting Centrifuge

  • High Light

    chemistry Shaking Bag Centrifuge

    ,

    304 Shaking Bag Centrifuge

    ,

    pharmacy bag lifting centrifuge

  • Application
    Food, Chemistry, Pharmacy, Light Industry, Etc
  • Operation
    Batch
  • MOC
    SS304,SS316
  • Bearing
    SKF, NSK As Optional
  • Discharge Type
    Peeler Bottom Discharge
  • Product Name
    Stainless Steel 304 316L Industrial Basket Shaking Bag Centrifuge Starch Machine
  • Keyword
    Centrifuge Starch Machine
  • Keyword1
    Siphon Peeler Centrifuges
  • Keyword2
    Bag Inverting Centrifuge
  • Keyword3
    Continuous Peeler Centrifuge
  • Place of Origin
    China
  • Brand Name
    Peony
  • Certification
    ISO
  • Model Number
    PPSBD
  • Minimum Order Quantity
    1 set
  • Price
    USD20000-85000/set FOB Shanghai
  • Packaging Details
    Standard export packings
  • Delivery Time
    60-75 days after deposit
  • Payment Terms
    T/T, L/C, Western Union
  • Supply Ability
    100 sets/month

Stainless Steel 304 Chemistry Pharmacy Shaking Bag Lifting Centrifuge

Stainless Steel 304 316L Industrial Basket Shaking Bag Centrifuge Starch Machine

Intruduction

Stainless Steel 304 316L Industrial Basket Shaking Bag Centrifuge Starch Machine,the centrifuge is a filter centrifuge with automatic clearance operation for scraper unloading. In this machine I:, it can automatically or manually carry out periodic cyclic operation of material avoidance, separation, washing, unloading and screen washing. All processes of the machine are carried out at full speed.
The machine adopts electric hydraulic combined control system and has independent electric control system and hydraulic system. During automatic operation, the operation time of each process of the machine is controlled by the electrical control system and can be adjusted within a certain time range.



Technical Parameter

Model PPSBDF-800 PPSBD-F-1000 PPSBD-F-1200 PPSBD-F-1250
Loading capacity(Kg) 135 180 320 400
Max. Speed(r/min) 1500 1080 970 1000
Maximum Separating factor 1007 652 631 698
Motor power(Kw) 7.5 15 18.5 18.5



Main Characteristics

PPSBD centrifuges have a perfect automatic performance and a large processing capacity. In accordance with users’ demand,procedures such as feeding, separating washing, dehydrating and discharging can all be automatically finished followed by remote control. It's suitable for solid-liquid separation of fibroid products as well as suspension which contains fine grains and medium size grains solid. For example: chemical industry products such as :gypsum,ammonium sulphide,bluestone,potassium chloride, borax, dyestuff, resin,pesticide and pharmaceutical products such as:salt, monosodium glutamate, food additive, starch, sugar, flavoring, antibiotic, vitamin and other industries such as mining and environmental protection ect.



1.The centrifuge adoptes whole enclosed structure with dependable seal facility which is filled with nitrogen to meet the explosion proof demand.

2. Adopted with quick open clamshell structure and the optional swash plate distributor, products can be distributed evenly to reduce vibration caused by unbalanced distribution. with additional washing function, it has a better cleaning effect.

3. The motor is set on top of the machine and directly linked to main shaft which will bring higher transmission efficiency and reduce friction powders.

4. Pneumatic assisted scraper is adopted to remove the remnant filter cake and CIP system is optional to secure clarity to be in accordance with GMP Norm.

5. Frequency control system is adopted to assure a stable start-up. PLC is adopted to ensure a complete automatic process including feeding, filtering washing and discharging etc. lt adopts dynamic(regenerative) breaking without fiction powder pollution and friction heat so it is much safer

6. No need of human supervision. Following security systems are adopted: self-monitoring and protecting system, speed inspection, product level detection, over-vibration protection, over-heat ,protection for motor, mechanical and electric double interlock for scraper rotary and movement, interlock for lid's open and machine's running.



Properties and Uses

Automatic Centrifuge adopts platform structure,with out housing welded with chassis.Adopting quick open structure,shell cover is fixed to shell body with flange hydraulic pressure is applied to open the lid,Shell cover is equipped with feeding pipe,washing pipe,sight glass viewing-light,scraper device,and man hole and so on,standard flanges are applied for the joints connected to external pipe.

Stainless Steel 304 Chemistry Pharmacy Shaking Bag Lifting  Centrifuge 0

Features

1) PPSBD series centrifugal machine is a kind of filtering equipment adopting peeler bottom-unloading and interval operation
2) The material enters the rotary drum from the upper
3) Under the function of centrifugal force, the liquid passes through the filtering medium and discharges out of the machine and the solid is left in the rotary drum
4) When the rotary speed reduces, the scraper scrapes the solid material and the material is discharged from the bottom of the machine
5) Advantages: steady operation, convenient operation
6) Can set operation program according to demands, auto finishes feeding material, separating, dewatering, unloading, and other processes
7) Can carry out the long-distance operation
8) High automation level, large handling capacity, and good separation result
9) No base installation

Stainless Steel 304 Chemistry Pharmacy Shaking Bag Lifting  Centrifuge 1



This series of centrifuges has the following advantages:
1.The machine adopts hydraulic control, with high degree of automation and stable and reliable operation.
2.The electrical system adopts advanced programmable controller (PC), with accurate and reliable control action, small volume, convenient adjustment and maintenance, high efficiency and long service life.
3.The rubber damping pad is designed to greatly reduce the harm to the plant and equipment when the machine vibrates.
4.This machine is driven by hydraulic coupling. It is not necessary to replace the friction plate as frequently as the friction centrifugal clutch.
5.The machine is equipped with a material layer controller, and the user can arbitrarily adjust and control the thickness of separated materials in the drum according to the use requirements.


Application

General requirements for the application scope of horizontal scraper discharge centrifuge: separation of solid-liquid two phases with particle size of 10 ~ 500um, solid concentration of 20 ~ 80% (weight concentration) and liquid viscosity less than 10-2Pa. S. In addition, it can also meet the requirements of washing the solid phase. The machine has been widely used in chemical industry, light industry, food, pharmaceutical and other industries. The separated materials include sulfuric acid, sodium sulfate, sodium chloride, boric acid, starch, pesticide, synthetic resin, potassium chloride, light sodium carbonate, polyvinyl alcohol, polyformaldehyde, polyethylene, sodium sulfate, caustic soda, salt, chemical fertilizer, aluminum sail, synthetic rubber, etc.

1) Suitable for separating suspensions with solid grains larger than 0.01mm
2) Widely used in chemical, pharmaceutical, food, light industry, and other trades
3) Most commonly used for gypsum, ferric sulfate, nickel sulfate, copper sulfate, potassium chloride, acetate, borax, soda, rubber additives, dye, plastic raw material, soap, grease, resin, salt, gourmet powder, food additives, vitamins, herbicides, insecticides and dewatering of copper, zinc, aluminum, and other mineral powders


Photos at site

Stainless Steel 304 Chemistry Pharmacy Shaking Bag Lifting  Centrifuge 2



Guarantee
Peony Centrifuge has been dedicated to producing machinery and equipment and carrying out facility construction, pursuing the best quality, and producing the best product at the same time.
We are committed to rewarding you with better quality in return for our interest in and faith. We will do our utmost for one more stepping forward, based on our infinite services and trust in customers.



Ceritification

Stainless Steel 304 Chemistry Pharmacy Shaking Bag Lifting  Centrifuge 3

Stainless Steel 304 Chemistry Pharmacy Shaking Bag Lifting  Centrifuge 4
