Hermetic  Horizontal Liquid Solid Sludge Dewatering Decanter Centrifuge

Hermetic Horizontal Liquid Solid Sludge Dewatering Decanter Centrifuge

  • High Light

    3 phase sludge decanter centrifuge

    ,

    hermetic sludge decanter centrifuge

    ,

    3 phase sludge dewatering centrifuge

  • MOC
    SS304, SS316
  • Solid Removal
    Over 99%
  • Speed
    Inverter Control
  • Bearing
    SKF
  • Discharging Type
    Partial Discharge, Self-cleaning
  • Technical Service
    All Life Free Charge
  • Standard
    GB
  • Operation
    Continuous
  • Separation Phase
    2 Phase Or 3 Phase
  • Type
    Horizontal
  • Place of Origin
    China
  • Brand Name
    Peony
  • Certification
    ISO9001&ISO14001,CE
  • Model Number
    PDC
  • Minimum Order Quantity
    1
  • Price
    FOB,USD
  • Packaging Details
    Standard export packings
  • Delivery Time
    60 days
  • Payment Terms
    TT
  • Supply Ability
    30 sets/month

Hermetic Horizontal Liquid Solid Sludge Dewatering Decanter Centrifuge

Introduction

When you need to separate solid / liquid mixtures with high solids content, you can choose a decanter centrifuge. In contrast to chamber filter presses, these solid vortex centrifuges or decanter centrifuges operate continuously. High centrifugal forces separate finely divided solid particles from the suspension.
Our decanter centrifuges are modular in design and can be used in a wide range of industries. Centrifuges can be optimally adjusted for specific applications. Applications range from sludge dewatering to classification or wet classification to solid classification.


Decanters designs:
Type: 2-phase separation, 3-phase separation
Materials: use high-quality stainless steel for all product wetted areas.
Bearings: SKF brand. A special selection and arrangement of bearings provides for long life and exceptional reliability.
Wear protection: welded hard facing or spray coating,ceramic technology.



Screw conveyor is widely used in city sewage treatment and industries. LSS series are designed as shaftless structure. The U-shaped solid tank is hermetic with a lid (which can be opened when necessary). Thus, such conveyor is suitable for conveying solid that is a pollutant, with abominable smell, dangerous, for bridging



Filter residue and dewatered sludge treatment in sewage treatment plant

Industrial and living garbage treatment in industrial and city habitant area

Solid in strip or strap form found in paper and fiber industry

Industrial solid fuel or waste such as waste residue, ash or straw



Specification of decanter centrifuge

Model Drum G-force

Capacity

(m3/h)

Max solid discharge (m3/h)

Power

(kw)

Weight

(kg)

Overall size

(L×W×H)

(mm)

Diameter

(mm)

Speed

(rpm)

Length

(mm)

Length-to-diameter rate
PDC-10-W 250 5400 1000 4 4080 0.5~5 0.4 11/4 1000 2410 × 800 × 1080
PDC-12-4-W 300 4200 1200 4 3500 1~5 0.6 11/4 1200 2610 × 800 × 1080
PDC-12-4.5-W 300 4200 1350 4.5 3000 1~10 0.8 11/4 1400 2760 × 800 × 1080
PDC-14-W 355 4000 1600 4.5 3180 1~20 1.2 18.5/7.5 1800 3495 × 840 × 1180
PDC-16-W 400 3650 1800 4.5 3000 2~25 2 22/7.5 2500 3890 × 1020 × 1205
PDC-18-4.4-W 450 3200 2000 4.4 2600 3~35 2.8 30/11 3000 4297 × 1080 × 1385
PDC-18-4.8-W 450 3200 2150 4.8 2600 4~40 3 37/11 3200 4447 × 1080 × 1385
PDC-20-4-W 500 3000 2000 4 2500 5~45 3.2 37/11 3800 4330 × 1140 × 1470
PDC-20-4.5-W 500 3000 2250 4.5 2500 8~50 3.5 45/15 4000 4580 × 1140 × 1470
PDC-21-W 530 2900 2280 4.3 2500 15~65 5 55/15 5000 4924 × 1170 × 1540
PDC-23-W 580 2780 2500 4.3 2500 20~80 6.5 75/18.5 6500 5205 × 1270 × 1540
PDC-26-W 650 2500 2800 4.3 2270 25~110 8 75/18.5 7000 4300 × 1900 × 1350

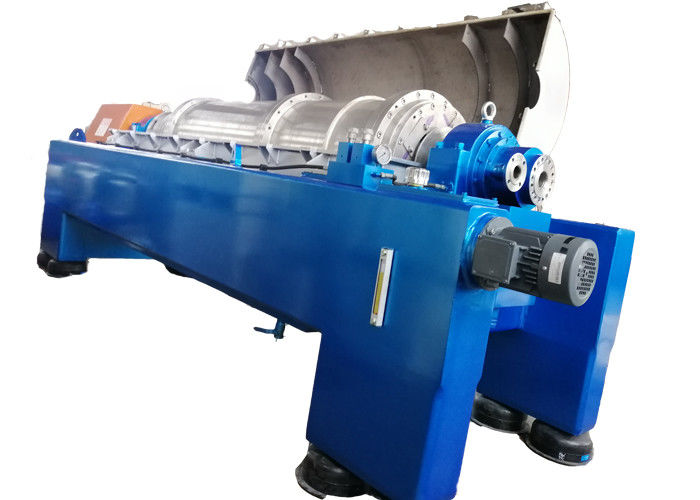

Photos of decanter centrifuge

Hermetic  Horizontal Liquid Solid Sludge Dewatering Decanter Centrifuge 0Hermetic  Horizontal Liquid Solid Sludge Dewatering Decanter Centrifuge 1





About us

Peony Centrifuge has been dedicated to producing machinery and equipments and carrying out facility construction, pursuing the best quality and producing the best product at the same time.
We are committed to reward you with a better quality in return for our interest in and faith toward.
We will do our utmost for one more stepping forward, based on our infinite services and trust to customers.





After sales

*12 months guarantee period from machine arriving date.
*Abundant spare parts in stock are availble to provide.
*Our technicians could be dispatched for overseas service.
*7*24 hours technical consultation.
*Your workers could get trained both in our factory and yours.
*Routine tracing till the machine work properly will be done timely.
*We will remind you to do the normal maintenance.
*Your suggestions or any comments & reflection would be treated in priority.
*Marketing team will visit you during our visit to your country if you require.
