Crude oil refinery machine as oil centrifuge machine for palm oil disc separator
Characteristics:
Crude oil refinery machine as oil centrifuge machine for palm oil disc separator

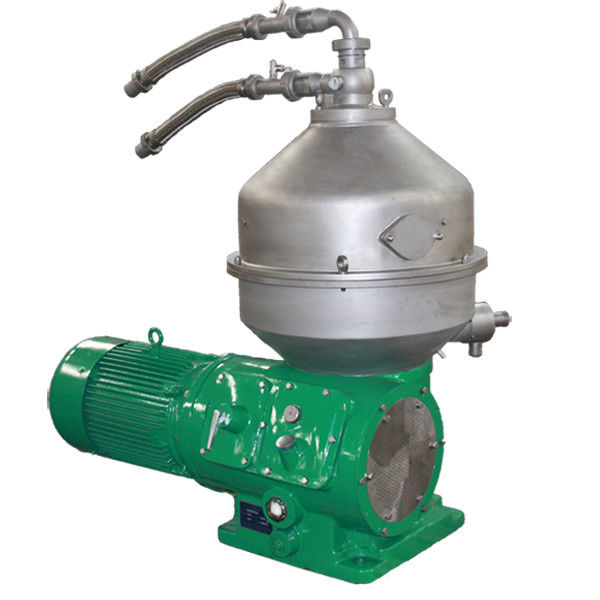

Model PDSP15000-N separator is a new type of palm oil separator which is designed and manufactured by our factory according to customer's requirements.
It is mainly used for palm oil recovery, to remove off the solid impurities and water content. It can also be used for similar materials.
The solid impurity and water content is discharged together from the nozzles, the oil phase is discharged automatically.
The machine is one kind of rotary machine with high speed. After accurate dynamic balancing, it can run for long time with low vibration, safety and security.
Main Technical Specification
| Capacity | 15000L/h | |
| Input pressure | 0.05-01.Mpa | |
| Light liquid discharge port pressure | ≤ 0.2Mpa | |
| Start type | Frequency conversion start | |
| Discharge type | Nozzle discharge | |
| N.W. | 1160kg | |
| Overall dimension (L × W × H) | 1438mm × 1219mm × 1629mm | |
| Motor | Power | 30kw/50HZ/380V |
| Load vibration intensity | ≤ 2.8mm/s | |
| Noise | ≤ 85dB(A) | |
Dimension Drawing:
Installation Notice:
1. For maintenance and repair, please leave enough space around the separator when installing it.
Crude oil refinery machine as oil centrifuge machine for palm oil disc separator,this series automatic discharging separator is special equipment for oil refining. It is the disc type with continuous spraying discharging with high speed through the nozzles in out circle. It works steadily, with high efficiency and convenient operatins, safe and reliable for separation.
The High speed disc bowl separator has the advantages of high efficiency, low material consumption, convenient operation and economic maintenance cost.
Certificate
Guarantee:
Peony Centrifuge has been dedicated to producing machinery and types of equipment and carrying out facility construction, pursuing the best quality and producing the best product at the same time.
We are committed to rewarding you with better quality in return for our interest in and faith.
We will do our utmost for one more stepping forward, based on our infinite services and trust in customers.
Our service
1. 12 months guarantee period from machine arriving date.
2. Abundant spare parts in stock are available to provide.
3. Our technicians could be dispatched for overseas service.
4. 7*24 hours technical consultation.
5. Your workers could get trained both in our factory and yours.
6. Routine tracing till the machine work properly will be done timely.
7. We will remind you to do the normal maintenance.
8. Your suggestions or any comments & reflection would be treated as a priority.
9. Marketing team will visit you during our visit to your country if you require.
Crude oil refinery machine as oil centrifuge machine for palm oil disc separator
Our products are sold all over the world, you can rest assured.
