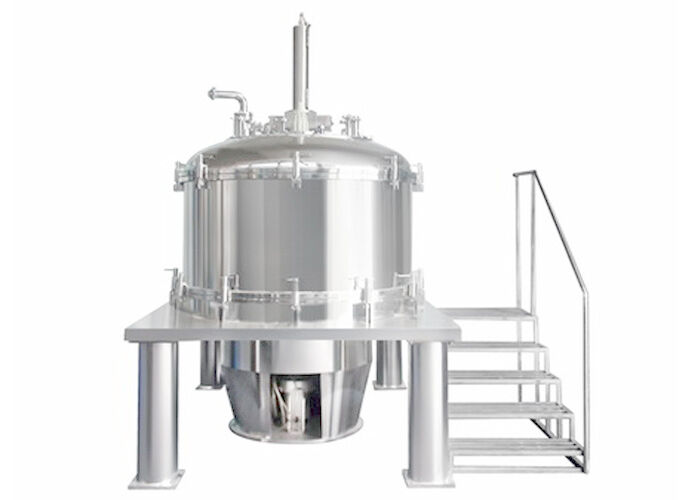

135kg Automatic Platform Bottom Discharge Vertical Peeler Starch  Centrifuge

135kg Automatic Platform Bottom Discharge Vertical Peeler Starch Centrifuge

  • High Light

    Peeler Starch Centrifuge

    ,

    Bottom Discharge Starch Centrifuge

    ,

    135kg vertical peeler centrifuge

  • Application
    Food, Chemistry, Pharmacy, Light Industry, Etc
  • Operation
    Batch
  • MOC
    SS
  • Bearing
    SKF, NSK As Optional
  • Discharge Type
    Peeler Bottom Discharge
  • Product Name
    PPSBDZ800 Verticle Peeler Centrifuge Machine For Sugar Dewatering
  • Keyword
    Peeler Starch Centrifuge
  • Name
    LGZ/PGZ Series Automatic Platform Bottom Discharge Peeler Starch Centrifuge
  • Place of Origin
    China
  • Brand Name
    Peony
  • Certification
    ISO
  • Model Number
    PPSBD
  • Minimum Order Quantity
    1 set
  • Price
    USD20000-85000/set FOB Shanghai
  • Packaging Details
    Standard export packings
  • Delivery Time
    60-75 days after deposit
  • Payment Terms
    T/T, L/C, Western Union
  • Supply Ability
    100 sets/month

135kg Automatic Platform Bottom Discharge Vertical Peeler Starch Centrifuge

LGZ/PGZ Series Automatic Platform Bottom Discharge Peeler Starch Centrifuge

Intruduction

Automatic Centrifuge adopts platform structure,with out housing welded with chassis.Adopting quick open structure,shell cover is fixed to shell body with flange hydraulic pressure is applied to open the lid,Shell cover is equipped with feeding pipe,washing pipe,sight glass viewing-light,scraper device,and man hole and so on,standard flanges are applied for the joints connected to external pipe.



Technical Parameter

Model PPSBDF-800 PPSBD-F-1000 PPSBD-F-1200 PPSBD-F-1250
Loading capacity(Kg) 135 180 320 400
Max. Speed(r/min) 1500 1080 970 1000
Maximum Separating factor 1007 652 631 698
Motor power(Kw) 7.5 15 18.5 18.5



Main Characteristics

1.The centrifuge adoptes whole enclosed structure with dependable seal facility which is filled with nitrogen to meet the explosion proof demand.

2. Adopted with quick open clamshell structure and the optional swash plate distributor, products can be distributed evenly to reduce vibration caused by unbalanced distribution. with additional washing function, it has a better cleaning effect.

3. The motor is set on top of the machine and directly linked to main shaft which will bring higher transmission efficiency and reduce friction powders.

4. Pneumatic assisted scraper is adopted to remove the remnant filter cake and CIP system is optional to secure clarity to be in accordance with GMP Norm.

5. Frequency control system is adopted to assure a stable start-up. PLC is adopted to ensure a complete automatic process including feeding, filtering washing and discharging etc. lt adopts dynamic(regenerative) breaking without fiction powder pollution and friction heat so it is much safer

6. No need of human supervision. Following security systems are adopted: self-monitoring and protecting system, speed inspection, product level detection, over-vibration protection, over-heat ,protection for motor, mechanical and electric double interlock for scraper rotary and movement, interlock for lid's open and machine's running.



Properties and Uses

PPSBD centrifuges have a perfect automatic performance and a large processing capacity. In accordance with users’ demand,procedures such as feeding, separating washing, dehydrating and discharging can all be automatically finished followed by remote control. It's suitable for solid-liquid separation of fibroid products as well as suspension which contains fine grains and medium size grains solid. For example: chemical industry products such as :gypsum,ammonium sulphide,bluestone,potassium chloride, borax, dyestuff, resin,pesticide and pharmaceutical products such as:salt, monosodium glutamate, food additive, starch, sugar, flavoring, antibiotic, vitamin and other industries such as mining and environmental protection ect.

135kg Automatic Platform Bottom Discharge Vertical Peeler Starch  Centrifuge 0

Features

1) PPSBD series centrifugal machine is a kind of filtering equipment adopting peeler bottom-unloading and interval operation
2) The material enters the rotary drum from the upper
3) Under the function of centrifugal force, the liquid passes through the filtering medium and discharges out of the machine and the solid is left in the rotary drum
4) When the rotary speed reduces, the scraper scrapes the solid material and the material is discharged from the bottom of the machine
5) Advantages: steady operation, convenient operation
6) Can set operation program according to demands, auto finishes feeding material, separating, dewatering, unloading, and other processes
7) Can carry out the long-distance operation
8) High automation level, large handling capacity, and good separation result
9) No base installation

135kg Automatic Platform Bottom Discharge Vertical Peeler Starch  Centrifuge 1
Application:

1) Suitable for separating suspensions with solid grains larger than 0.01mm
2) Widely used in chemical, pharmaceutical, food, light industry, and other trades
3) Most commonly used for gypsum, ferric sulfate, nickel sulfate, copper sulfate, potassium chloride, acetate, borax, soda, rubber additives, dye, plastic raw material, soap, grease, resin, salt, gourmet powder, food additives, vitamins, herbicides, insecticides and dewatering of copper, zinc, aluminum, and other mineral powders


Photos at site

135kg Automatic Platform Bottom Discharge Vertical Peeler Starch  Centrifuge 2
