Scraper Discharge Industry Centrifuge Machine  Interval Operation

Scraper Discharge Industry Centrifuge Machine Interval Operation

  • High Light

    Scraper Industry Centrifuge Machine

    ,

    filtering Industry Centrifuge Machine

    ,

    filtering scraper centrifuge

  • Keyword
    Industry Centrifuge Machine
  • Application
    Food, Chemistry, Pharmacy, Light Industry, Etc
  • Operation
    Batch, Automatic
  • Discharge Type
    Scraper Bottom Discharge
  • Structure
    Vertical
  • Voltage
    220,380,440,460V,etc
  • Power
    5.5-55 Kw
  • After-sales Service Provided
    Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Video Technical Support,Field Maintenance And Repair Service
  • Warranty
    12 Months
  • Condition
    New
  • Place of Origin
    China
  • Brand Name
    Peony
  • Certification
    ISO, CE
  • Model Number
    PPSBD
  • Minimum Order Quantity
    1 Set
  • Price
    FOB+USD
  • Packaging Details
    Wooden Packing
  • Delivery Time
    40 working days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    50 sets per month

Scraper Discharge Industry Centrifuge Machine Interval Operation

Scraper Discharge Automatic Industry Centrifuge Machine



Product Description

The PPSBD Industry Centrifuge Machine is a kind of filtering equipment adopting scraper bottom-unloading and interval operation. It is widely used in chemical, pharmaceutical, food, light industry and other trades, most commonly used for gypsum, ferric sulfate, nickel sulphate, copper sulphate, potassium chloride, acetate, borax, soda, rubber additives, dye, plastic raw material, soap, grease, resin, salt, gourmet powder, food additives, vitamins, herbicides, insecticides and dewatering of copper, zinc, aluminum and other mineral powders.



Features of Industry Centrifuge Machine
1) PPSBD series industry centrifugal machine is a kind of filtering equipment adopting scraper bottom-unloading and interval operation.
2) The material enters the rotary basket from the upper.
3) Under the function of centrifugal force, the liquid passes through the filtering medium and discharges out of the machine and the solid is left in the rotary basket.
4) When the rotary speed reduces, the scraper scrapes the solid material and the material is discharged from the bottom of the machine.
5) Advantages: steady operation, convenient operation.
6) It could set operation program according to demands, auto finishes feeding material, separating, dewatering, unloading and other processes.
7) Can carry out long-distance operation.
8) High automation level, large handing capacity and good separation result.
9) No base installation.



Technical Parameters Of Industry Centrifuge Machine

Model Basket Diameter(mm) Basket Volume(L) Loading Capacity(Kg) Motor Power(Kw) Size(including shock absorber)(mm) Machine Weight(KG)
PPSBD60S 600 45 60 5.5 1700*1200*1700 1500
PPSBD135S 800 100 135 7.5 1700*1400*1960 2000
PPSBD180S 1000 140 180 15 1968*1500*2060 3500
PPSBD250S 1000 190 250 15 1968*1200*2400 3800
PPSBD320S 1200 260 320 18.5 2280*1800*2350 4350
PPSBD400/520S 1250 310/400 400/520 18.5 2280*1800*2500 5000/5600
PPSBD650S 1250 505 650 22 2280*1800*2900 6000
PPSBD630S 1320 490 630 30 2420*1900*2900 6500
PPSBD780S 1350 600 780 30 2420*1900*2900 7000
PPSBD700S 1400 540 700 37 2700*2000*3500 8500
PPSBD820S 1500 610 820 30 2600*2140*2800 10800
PPSBD1000S 1600 800 1000 37 3000*2400*3250 12500
PPSBD1200S 1800 1000 1200 55 3260*2300*3100 14450

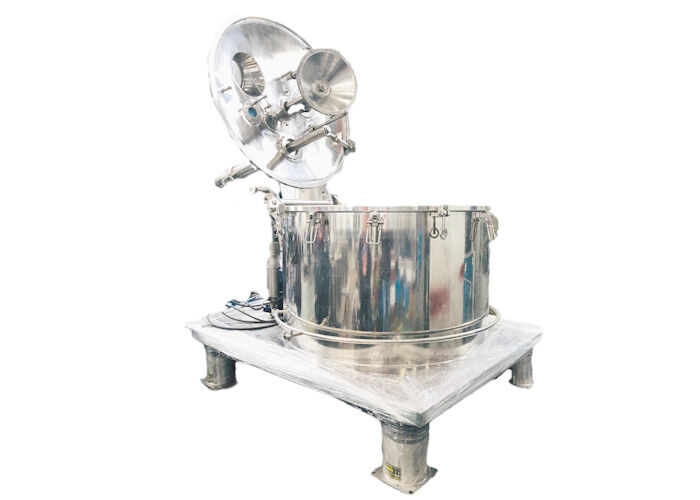

Detailed Images of Industry Centrifuge Machine

Scraper Discharge Industry Centrifuge Machine  Interval Operation 0

Scraper Discharge Industry Centrifuge Machine  Interval Operation 1



Company Guarantee

Our company's production base is located in the Huangqiao Industrial Zone of Taixing, covering an area of 300 acres. The companies involved are in the industry of new material, new energy, medicine, chemical, environmental protection, food, and beverage, etc. The company has various kinds of general (special) machinery devices including 480 sets and are the most developed working devices in the world such as: Toshiba CNC boring and milling machine imported from Japan, German Schiess CNC turning pOrocessing center, etc.

The company's main projects include but are not limited to: MVR evaporation system, powder washing salt and vacuum salt production project, oil tank sludge cleaning project, landfill leachate treatment project, plant/animal oil processing production line, various wastewater treatment projects, and CBD oil extraction production line. Technical support and transfer of API product technology package. The main products are centrifuge series, multi-effect and MVR evaporation and crystallization equipment.



Site Picture of Industry Centrifuge Machine

Scraper Discharge Industry Centrifuge Machine  Interval Operation 2



Certification

Scraper Discharge Industry Centrifuge Machine  Interval Operation 3



After Sales Service

*12 months guarantee period from machine arriving date.
*Abundant spare parts in stock are availble to provide.
*Our technicians could be dispatched for overseas service.
*7*24 hours technical consultation.
*Your workers could get trained both in our factory and yours.
*Routine tracing till the machine work properly will be done timely.
*We will remind you to do the normal maintenance.
*Your suggestions or any comments & reflection would be treated in priority.
*Marketing team will visit you during our visit to your country if you require.
