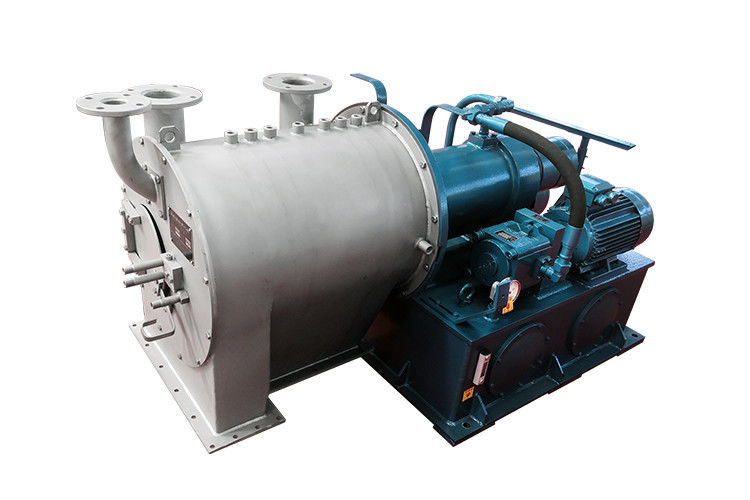

2000rpm Automatic Continuous SS316L  Drying Salt Pusher Centrifuge Machine

2000rpm Automatic Continuous SS316L Drying Salt Pusher Centrifuge Machine

  • High Light

    Drying Salt pusher centrifuge

    ,

    SS316L pusher centrifuge machine

    ,

    2000rpm pusher centrifuge machine

  • Suitable For
    Salt Mixture Separation
  • Operation
    Automatic And Continuous
  • MOC
    SS316L, DSS
  • Control Box
    Matched
  • Capacity
    1-40T/Hr
  • Key Words
    Drying Salt Centrifuge
  • Place of Origin
    China
  • Brand Name
    Peony
  • Certification
    ISO
  • Model Number
    PP
  • Minimum Order Quantity
    1 set
  • Price
    USD36800-83500/SET FOB SHANGHAI
  • Packaging Details
    Standard export packings
  • Delivery Time
    60-90 days after down payment
  • Payment Terms
    T/T, L/C, Western Union
  • Supply Ability
    60 sets/month

2000rpm Automatic Continuous SS316L Drying Salt Pusher Centrifuge Machine

Automatic Continuous SS316L 2 Stage Drying Salt Centrifuge for Salt Dewatering



Description



Automatic Continuous SS316L 2 Stage Drying Salt Centrifuge for Salt Dewatering is a kind of perforated basket centrifuge, both continuous and effective. The feeding material enters into the feeding pipe and distributed continuously and evenly into the first stage basket. Most of the mother-liquor in the feed, act on by centrifugal force, departs through the sieves into the liquor-collecting casing where it will be discharged out of the machine. The first stage basket rotates and reciprocates, pushing the formed product cake into the second stage basket. The cake can have sufficient retardation in the centrifuge with being acted on by more centrifugal force, and therefore, the desired humidity of the cake can be guaranteed. Afterward, the cake is continuously discharged out of the basket. In case of high purity for the solid product, effective washing can be carried out in the centrifuge. If necessary, the washing agent and the mother-liquor can be discharged separately.





Technical Parameters of PP-50



Model
PP-40
PP-50
PP-60
Basket Diameter(mm)
290/360
438/500
560/630
Main motor (kw)
11-15
37-45
55
Output (t/h)
5-7
12
20
Weight (kg)
2600
4400
4860
Overall Dimension(mm)
2346*1090*1006
3660*1420*2078
3127*1700*1955
Operation temp. (°C)
Below 105
Below 105
Below 105




Quick skimming



Application: Sea salt and mineral salt dewatering

Advantages: Full automatic, large capacity

Bearing: Famous brand, such as SKF

MOC: SS316, DSS2205

Advanced technology: Sulzer

Separation effection: Moisture in the cake less than 4%



Picture of key parts

2000rpm Automatic Continuous SS316L  Drying Salt Pusher Centrifuge Machine 0




2000rpm Automatic Continuous SS316L  Drying Salt Pusher Centrifuge Machine 1
