PPSBD Scraper Discharge Automatic Industrial Basket Centrifuge
Product Description
The PPSBD Industrial Basket Centrifuge is a kind of filtering equipment adopting scraper bottom-unloading and interval operation. It is widely used in chemical, pharmaceutical, food, light industry and other trades, most commonly used for gypsum, ferric sulfate, nickel sulphate, copper sulphate, potassium chloride, acetate, borax, soda, rubber additives, dye, plastic raw material, soap, grease, resin, salt, gourmet powder, food additives, vitamins, herbicides, insecticides and dewatering of copper, zinc, aluminum and other mineral powders.
Features of Industrial Basket Centrifuge
1) PPSBD series industrial basket centrifugal is a kind of filtering equipment adopting scraper bottom-unloading and interval operation.
2) The material enters the rotary basket from the upper.
3) Under the function of centrifugal force, the liquid passes through the filtering medium and discharges out of the machine and the solid is left in the rotary basket.
4) When the rotary speed reduces, the scraper scrapes the solid material and the material is discharged from the bottom of the machine.
5) Advantages: steady operation, convenient operation.
6) It could set operation program according to demands, auto finishes feeding material, separating, dewatering, unloading and other processes.
7) Can carry out long-distance operation.
8) High automation level, large handing capacity and good separation result.
9) No base installation.
Technical Parameters Of Industrial Basket Centrifuge
| Model | Basket Diameter(mm) | Basket Volume(L) | Loading Capacity(Kg) | Motor Power(Kw) | Size(including shock absorber)(mm) | Machine Weight(KG) |
| PPSBD60S | 600 | 45 | 60 | 5.5 | 1700*1200*1700 | 1500 |
| PPSBD135S | 800 | 100 | 135 | 7.5 | 1700*1400*1960 | 2000 |
| PPSBD180S | 1000 | 140 | 180 | 15 | 1968*1500*2060 | 3500 |
| PPSBD250S | 1000 | 190 | 250 | 15 | 1968*1200*2400 | 3800 |
| PPSBD320S | 1200 | 260 | 320 | 18.5 | 2280*1800*2350 | 4350 |
| PPSBD400/520S | 1250 | 310/400 | 400/520 | 18.5 | 2280*1800*2500 | 5000/5600 |
| PPSBD650S | 1250 | 505 | 650 | 22 | 2280*1800*2900 | 6000 |
| PPSBD630S | 1320 | 490 | 630 | 30 | 2420*1900*2900 | 6500 |
| PPSBD780S | 1350 | 600 | 780 | 30 | 2420*1900*2900 | 7000 |
| PPSBD700S | 1400 | 540 | 700 | 37 | 2700*2000*3500 | 8500 |
| PPSBD820S | 1500 | 610 | 820 | 30 | 2600*2140*2800 | 10800 |
| PPSBD1000S | 1600 | 800 | 1000 | 37 | 3000*2400*3250 | 12500 |
| PPSBD1200S | 1800 | 1000 | 1200 | 55 | 3260*2300*3100 | 14450 |

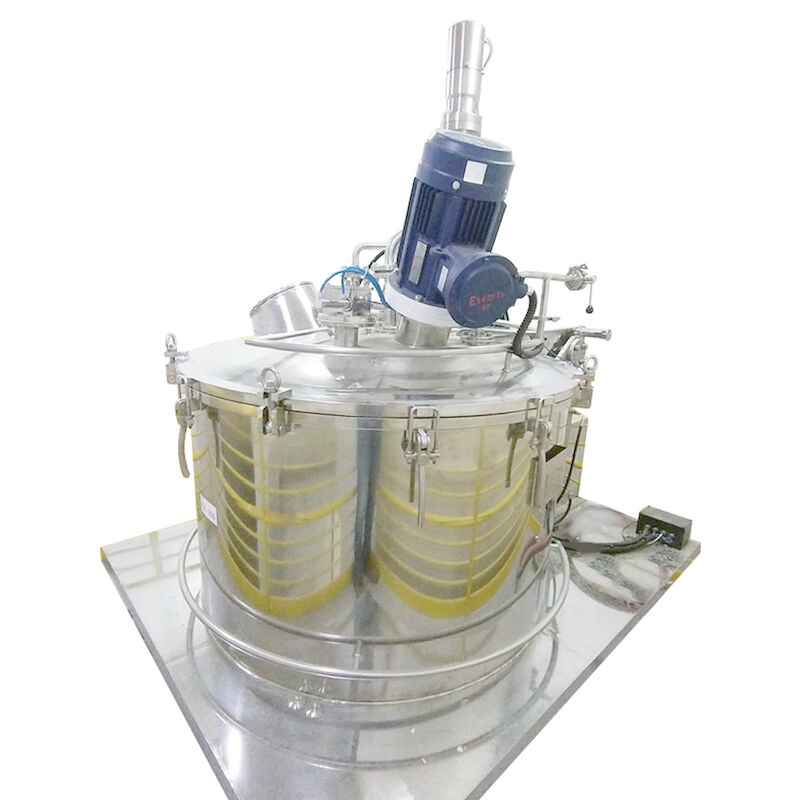

Picture of Industrial Basket Centrifuge
Company Guarantee
Our company's production base is located in the Huangqiao Industrial Zone of Taixing, covering an area of 300 acres. The companies involved are in the industry of new material, new energy, medicine, chemical, environmental protection, food, and beverage, etc. The company has various kinds of general (special) machinery devices including 480 sets and are the most developed working devices in the world such as: Toshiba CNC boring and milling machine imported from Japan, German Schiess CNC turning pOrocessing center, etc.
The company's main projects include but are not limited to: MVR evaporation system, powder washing salt and vacuum salt production project, oil tank sludge cleaning project, landfill leachate treatment project, plant/animal oil processing production line, various wastewater treatment projects, and CBD oil extraction production line. Technical support and transfer of API product technology package. The main products are centrifuge series, multi-effect and MVR evaporation and crystallization equipment.
Site Pictures of Industrial Basket Centrifuge
After Sales Service
*12 months guarantee period from machine arriving date.
*Abundant spare parts in stock are availble to provide.
*Our technicians could be dispatched for overseas service.
*7*24 hours technical consultation.
*Your workers could get trained both in our factory and yours.
*Routine tracing till the machine work properly will be done timely.
*We will remind you to do the normal maintenance.
*Your suggestions or any comments & reflection would be treated in priority.
*Marketing team will visit you during our visit to your country if you require.
