IP55 3 Phase Solid Liquid Centrifuge Separator Machine Pharmaceutical Industry

IP55 3 Phase Solid Liquid Centrifuge Separator Machine Pharmaceutical Industry

  • High Light

    IP55 centrifuge separator machine

    ,

    solid liquid centrifugal separator machine

    ,

    IP55 solid liquid centrifuge separator

  • Type
    Horizontal Automatic Centrifuge
  • Voltage
    Customized
  • Working Type
    Continuous
  • Control System
    PLC Control System
  • Warranty
    12 Months
  • Machine Type
    Separation Equipment
  • After-sales Service Provided
    Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Video Technical Support,Field Maintenance And Repair Service
  • Key Word
    Machine Starch Separator
  • Power
    18.5-132KW
  • Core Components
    PLC, Engine, Bearing, Gearbox, Motor
  • Place of Origin
    China
  • Brand Name
    Peony
  • Certification
    ISO, CE
  • Model Number
    PPCF
  • Minimum Order Quantity
    1 Set
  • Price
    FOB+USD
  • Packaging Details
    Wooden Packing
  • Delivery Time
    40 working days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    50 sets per month

IP55 3 Phase Solid Liquid Centrifuge Separator Machine Pharmaceutical Industry

Description of PPCF Automatic Horizontal Scraper Separator Centrifuge Machine Starch Separator



PPCF Automatic Centrifuge Machine Starch Separator is not only used for medium and fine particle contained suspension's separation, but also used for the solid-liquid separation of noxious, explosive and combustible products. It adopts indeed hopper or screwd conveyor to discharge solid product. It is mainly used in solid-liquid separation of raw materials, intermediates and end products in the fields such as the pharmaceutical industry and chemical indusry.



Separated hydraulic and lubrication system are set for PPCF centrifuge machine starch separator which adopts PLC programmable control, frequency conversion speed adjustment and dynamic braking system. Its control method adopts automatically control(manual operation can be selected), feeding, separating, washing, dehydration and discharging can be operated by the program set by customer.



System Design of PPCF Automatic Centrifuge Machine Starch Separator:
Type: 3- phase separation
Main motor: Horizontal explosion-proof energy saving motor

Transission method: Antistatic V-belt

Protection level: IP55

Insulation level: F


Technical parameters of PPCF Automatic Centrifuge Machine Starch Separator:

Model Main Motor Power (KW) Machine Weight(KG)
PPCF-53 18.5 3000
PPCF-130 30 3200
PPCF-230/280 37/55 6000/6200
PPCF-350 55 7000
PPCF-430 55 7600
PPCF-650 55 8500
PPCF-900 90 14000
PPCF-1000 90 14800
PPCF-1800 132 22700

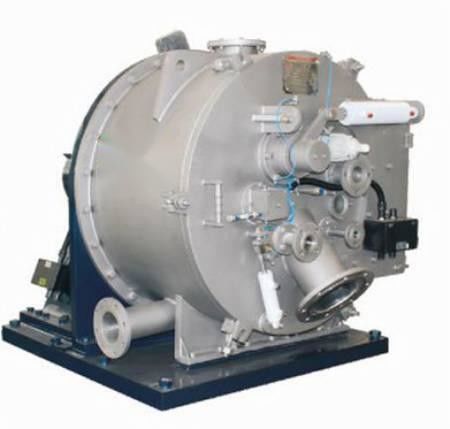

Pictures of PPCF Automatic Centrifuge Machine Starch Separator:

IP55 3 Phase Solid Liquid Centrifuge Separator Machine Pharmaceutical Industry 0
IP55 3 Phase Solid Liquid Centrifuge Separator Machine Pharmaceutical Industry 1



Our Factory

Our company's production base is located in the Huangqiao Industrial Zone of Taixing, covering an area of 300 acres. The companies involved are in the industry of new material, new energy, medicine, chemical, environmental protection, food, and beverage, etc.
The company has various kinds of general (special) machinery devices including 480 sets and are the most developed working devices in the world such as: Toshiba CNC boring and milling machine imported from Japan, German Schiess CNC turning processing center, etc.

The company's main projects include but are not limited to: MVR evaporation system, powder washing salt and vacuum salt production project, oil tank sludge cleaning project, landfill leachate treatment project, plant/animal oil processing production line, various wastewater treatment projects, and CBD oil extraction production line. Technical support and transfer of API product technology package. The main products are centrifuge series, multi-effect and MVR evaporation and crystallization equipment.

IP55 3 Phase Solid Liquid Centrifuge Separator Machine Pharmaceutical Industry 2



After sales

*12 months guarantee period from machine arriving date.
*Abundant spare parts in stock are availble to provide.
*Our technicians could be dispatched for overseas service.
*7*24 hours technical consultation.
*Your workers could get trained both in our factory and yours.
*Routine tracing till the machine work properly will be done timely.
*We will remind you to do the normal maintenance.
*Your suggestions or any comments & reflection would be treated in priority.
*Marketing team will visit you during our visit to your country if you require.
