Programmable  PLC  Horizontal Scraper Spiral  Discharge for food industry

Programmable PLC Horizontal Scraper Spiral Discharge for food industry

  • High Light

    Programmable Horizontal Scraper

    ,

    PLC Horizontal Scraper

    ,

    Programmable centrifuge starch machine

  • Keywords
    Centrifuge Starch Machine
  • Discharge Type
    Spiral Scraper Discharge
  • Shape
    Horizontal
  • MOC
    SS304,SS316
  • Operation
    Continuous
  • Voltage
    Customized
  • Warranty
    1 Year
  • Type
    Separating Plant
  • Application
    Food, Chemical Industry
  • Collocation 1
    Hydralic System
  • Collocation 2
    Screw Conveyor
  • Place of Origin
    China
  • Brand Name
    Peony
  • Certification
    ISO, CE
  • Model Number
    PPCS
  • Minimum Order Quantity
    1 Set
  • Price
    FOB+USD
  • Packaging Details
    Wooden Packing
  • Delivery Time
    40 working days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    50 sets per month

Programmable PLC Horizontal Scraper Spiral Discharge for food industry

PPCS Horizontal Scraper Starch Separator PLC Programmal Centrifuge Starch Machine

Product Description

PPCS automatic centrifuge starch machine is suitable for separating such products as small solid phase granularity and which is hard to be separated. It is widely used in pharmaceutical, chemical and food-stuff industry (e.g. corn starch, wheat starch, tapioca, potato starch). This machine is controlled by PLC and regulates speed by frequency convertor, braking system applies dynamic braking and regenerative braking. The whole separation process is automatic circulative process and manual operation mode is applicable to be changed over from automatic operation mode.



Application of Centrifuge Starch Machine

Automatic centrifuge Starch Machine adopts wall penetration installation.Its power area and processing area can be separated.
It can be used in pharmaceutical industry which has high requirements. The whole housing bucket can be open for inspection and cleaning.

Programmable  PLC  Horizontal Scraper Spiral  Discharge for food industry 0



Technical Parameters of Centrifuge Starch Machine

Model Main Motor Power(Kw) Max. Speed(r/min) Drum Volume(L) Size Including Shock Absorber(mm)
PPCS-26 15 2600 21 1800*1375*1902
PPCS-140 37 1500 110 2439*1900*2150
PPCS-250 45 1400 200 3050*2400*2192
PPCS-260 45 1400 210 3050*2400*2192
PPCS-500 75/90 1200 335 3875*2500*2612
PPCS-1100 132 950 879 5620*3200*3930
PPCS-1800 160 900 1390 5862*3600*3910
PPCS-2400 200 950 1923 7577*3700*4053

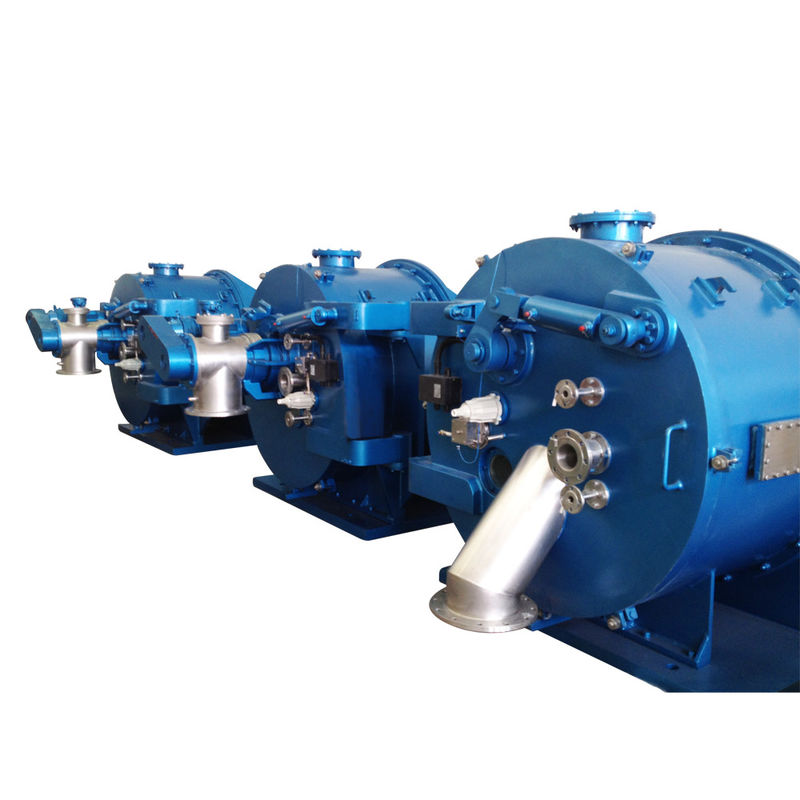

Pictures of Centrifuge Starch Machine

Programmable  PLC  Horizontal Scraper Spiral  Discharge for food industry 1

Programmable  PLC  Horizontal Scraper Spiral  Discharge for food industry 2



Factory Introduction

Our company's production base is located in the Huangqiao Industrial Zone of Taixing, covering an area of 300 acres. The companies involved in the industry of new material, new energy, medicine, chemical, environmental protection, food, and beverage, etc.

The company's main projects include but are not limited to: MVR evaporation system, powder washing salt and vacuum salt production project, oil tank sludge cleaning project, landfill leachate treatment project, plant/animal oil processing production line, various wastewater treatment projects, and CBD oil extraction production line. Technical support and transfer of API product technology package. The main products are centrifuge series, multi-effect and MVR evaporation and crystallization equipment.

Programmable  PLC  Horizontal Scraper Spiral  Discharge for food industry 3



After Sales

*12 months guarantee period from machine arriving date.
*Abundant spare parts in stock are availble to provide.
*Our technicians could be dispatched for overseas service.
*7*24 hours technical consultation.
*Your workers could get trained both in our factory and yours.
*Routine tracing till the machine work properly will be done timely.
*We will remind you to do the normal maintenance.
*Your suggestions or any comments & reflection would be treated in priority.
*Marketing team will visit you during our visit to your country if you require.
