PPC Horizontal PLC Programmable Automatic Solid Liquid Separation Peeler Sieve Centrifuge
Product Description

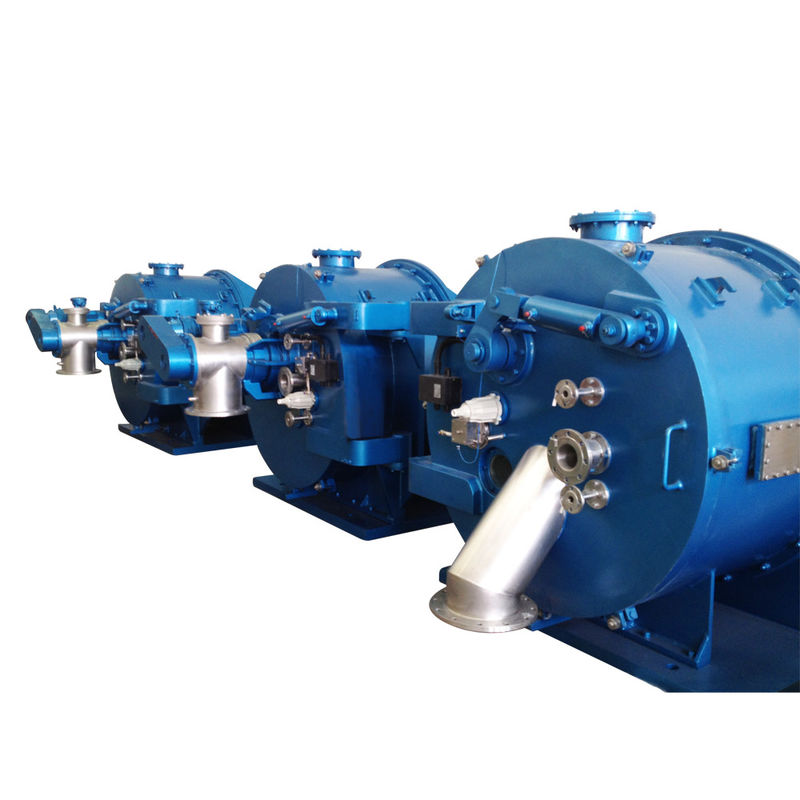

The PPC Horizontal Automatic Peeler Sieve Centrifuge is a solid-liquid separation equipment which adopts continuous operation and intermittent discharging. The machine is controlled by PLC. Its braking system adopts dynamic braking and regenerative braking. Through such procedures as product level detection, speed inspection, shaft temperature and vibration monitoring, the whole separation process is automatic circulation and working (including feeding, dehydration, washing, discharging, etc.) Also manual operation mode is available which can be changed over from full-automatic mode by customer’s will.
PPC series automatic centrifuge is not only used for medium and fine particle contained suspension’s separation, but also used for the solid-liquid separation of noxious, explosive and combustible products. It adopts slant hopper or screwed conveyor to discharge solid product. It is mainly used in solid-liquid separation of raw materials, intermediates and end products in the fields such as pharmaceutical industry and chemical industry.
MaiMain Characteristicsn Characteristics
Technical Parameters Of PPC Sieve Centrifuge
| Model | Basket Diameter(mm) | Basket Volume(L) | Max.Speed(r/min) | Main Motor Power (KW) | Machine Weight(KG) |
| PPC-53 | 600 | 41 | 2400 | 18.5 | 3000 |
| PPC-130 | 800 | 100 | 1500/1600 | 30 | 3200 |
| PPC-230/280 | 1050 | 210/260 | 1400/1700 | 37/55 | 6000/6200 |
| PPC-350 | 1250 | 265 | 1200 | 55 | 7000 |
| PPC-430 | 1250 | 335 | 1200 | 55 | 7600 |
| PPC-650 | 1350 | 500 | 1200 | 55 | 8500 |
| PPC-900 | 1600 | 700 | 950 | 90 | 14000 |
| PPC-1000 | 1600 | 840 | 950 | 90 | 14800 |
| PPC-1800 | 1800 | 1390 | 900 | 132 | 22700 |
Detailed Images of PPC Sieve Centrifuge
Main Characteristics of PPC Sieve Centrifuge
1. PPC automatic centrifuge adopts speed regulation by frequency convertor and PLC control, friendly human-computer interface and electric hydraulic(pneumatic) device. Monitoring can be executed in overall processes such as felling, initial filtering, washing, secondary filtering and discharging etc. Which embodies automatic operation without operator, so human-machine conversation can be realized with convenient use and maintenance.
2. Frequency speed regulation system is adopted to ensure step-less speed regulation, while dynamic braking (or regenerative braking) us adopted to ensure stable operation. There is also perfect protection system, product level detection, speed inspection, vibration protection, interlock protection for machine’s opening, over heating protection for motor and scraper motion protection, all of which make it safer for operation.
3. Adopted whole sealing explosion-proof structure, the centrifuge has automatic air exchange system(according to oxygen content or protective gas pressure) or inert gas protection, so it can meet the demand of GMP Norm of pharmaceutical industry and solid-liquid separation of flammable and explosive products.
4. Welded structure is adopted on the shell to ensure a tight form and high intensity but light weight.
5. Inner surface is polished and no dead angles are left. Connection parts, welding seam, corner and edge adopt round and smooth treatment. Equipped with CIP system(product and machine cleaning) to get a optimized washing effect.
6. The automatic residual cakes removing device is optional(have owned the national patent).
Our Factory
Our company's production base is located in the Huangqiao Industrial Zone of Taixing, covering an area of 300 acres. The companies involved are in the industry of new material, new energy, medicine, chemical, environmental protection, food, and beverage, etc. The company has various kinds of general (special) machinery devices including 480 sets and are the most developed working devices in the world such as: Toshiba CNC boring and milling machine imported from Japan, German Schiess CNC turning processing center, etc.
The company's main projects include but are not limited to: MVR evaporation system, powder washing salt and vacuum salt production project, oil tank sludge cleaning project, landfill leachate treatment project, plant/animal oil processing production line, various wastewater treatment projects, and CBD oil extraction production line. Technical support and transfer of API product technology package. The main products are centrifuge series, multi-effect and MVR evaporation and crystallization equipment.
Packaging of PPC Sieve Centrifuge
After Sales Service
*12 months guarantee period from machine arriving date.
*Abundant spare parts in stock are availble to provide.
*Our technicians could be dispatched for overseas service.
*7*24 hours technical consultation.
*Your workers could get trained both in our factory and yours.
*Routine tracing till the machine work properly will be done timely.
*We will remind you to do the normal maintenance.
*Your suggestions or any comments & reflection would be treated in priority.
*Marketing team will visit you during our visit to your country if you require.
FAQ
1. How can we visit your factory?
* If you come from aborad,air to shanghai or nanjing airport,or if you arrive shanghai,you can take bullet trian
* If you come from domestic city,air or train directly to Nanjing Nan or WUXI east,we will pick you up both from airport or railway station.
2. Can we visit your end user or contact them?
* Yes,we will provide you the name list,and arrange the visit after their approval.
3. How do you protect the quality?
* As state owned enterprise with more than 100years history,we have strict operation policy,advanced processing machines to guarantee the precision ,workers with operation license,related components are from world famous brand,Series of test and inspection are done in the whole producing stage.
4. Will you dispatch technicians for installation and commissioning?
* Yes,we will upon required.
5. What is your advantage compared with your competitors?
* Quality and experience,We are top centrifuge supplier in China,our designs and structures are analogous to world leader brands.
6. Is your price competitive?
* My price is not the lowest in China ,but we promise,for the same quality and collocation,my price is the most favorable,for the same price,my quality is definately superior to other brands
7. Do you have OEM service? do you sppply the parts?
* Yes,we do,as long as you provide us your drawing and detailed requirements
8. Do you supply second hand equipments?
* No,we don't.
9. Do you have agents or service centre abroad?
* We have some partership in several countries as Indonesia,Brail,USA.
10. What payment mode you accept?
* TT and LC at sight
11. Will you help to go to our site for commissioning and training?
* Yes,we can
