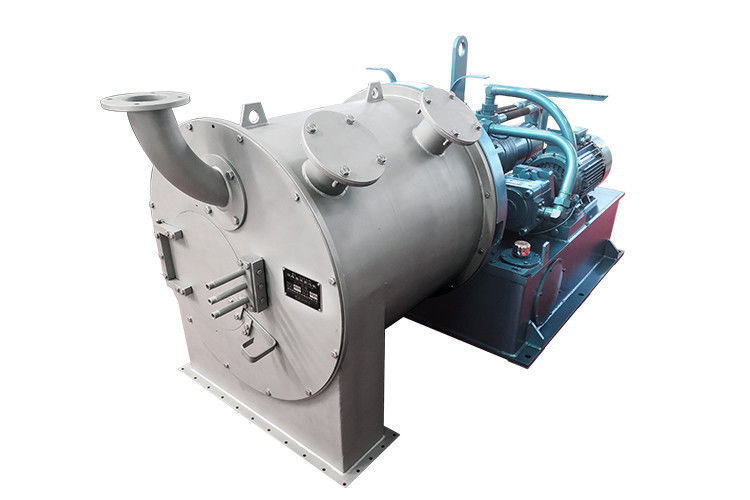

40t/Hr SS316L Automatic Continuous Salt Dewatering Chemical Centrifuge
SS316L chemical centrifuge
,40t/hr chemical centrifuge
,SS316L salt dewatering machine
40t/Hr SS316L Automatic Continuous Salt Dewatering Chemical Centrifuge
Description
Automatic Continuous 1-40t/hr SS316L 2 Stage Salt Centrifuge Machine is a kind of perforated basket centrifuge, both continuous and effective. The machine can be used to continuously dewater and wash the slurry with crystal and fiber bigger than 50um, so far, t has succeeded in separating more than 200 different kinds of products, such as sodium salt, ammonium salt, sylvine tripolyamide, PVC, EPS, etc.
Bearing design life: ≥ 30,000 hours
Mechanical seal design life: ≥ 8,000 hours
Machine design life: ≥ 15 years
Running time Under normal operating condition, guarantee over 6000 hours every year
Technical Parameters of PP-85
| Equipment | 2 stage pusher centrifuge | ||||
| Spec. | PP-85 | Qty | set | ||
| Technical parameters | |||||
| 1 | Basket diameter | 738/820 mm | |||
| 2 | Basket Rotate Speed (Max) | 1040rpm | |||
| 3 | Stroke of Pusher Mechanism | 70-80 times/min | |||
| 4 | First, second stage mesh aperture (as per the material) | mm, mm | |||
| 5 | Separation Factor | 455-505 | |||
| 6 |
Main motor
|
Spec/Power | Y280M 90KW 1480r.min | ||
| Installation type | Horizontal | ||||
| Protection class | IP54/F1 | ||||
| Electrical power | 3 phase 380V/50Hz AC (as per requirement) | ||||
| 7 |
Oil pump motor
|
Spec/Power | Y225M 45KW 1480r.min | ||
| Installation type | Horizontal | ||||
| Protection class | IP54/F1 | ||||
| Electrical power | 3 phase 380V/50Hz AC | ||||
| 8 | Oil pump | Spec. | NBX6-F160F | ||
| outflow | 180ml/turn | ||||
| Maximum pressure | 8Mpa | ||||
| 9 | Overall size | 3990mm×2000mm×1939mm | |||
| 10 | Weight | 6250kg | |||
| 11 | Shell type | open | |||
| 12 | Output |
20-30T/h(sea salt) 30-45T/h(Mineral salt) |
|||
| 13 | Moisture content after separation: | ≤3% | |||
Guarantee
Peony Centrifuge has been dedicated to producing machinery and types of equipment and carrying
out facility construction, pursuing the best quality, and producing the best product at the same time.
We are committed to rewarding you with better quality in return for our interest in and faith.
We will do our utmost for one more stepping forward, based on our infinite services and trust in
customers.
Tag: 2stage pusher centrifuge, Salt centrifuge machine, centrifuge for salt
