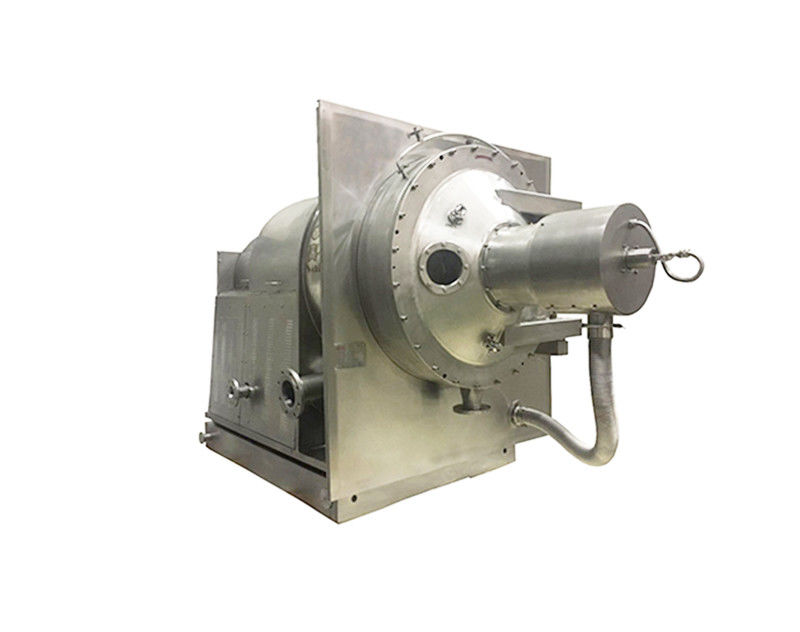

Batch Operation 70L Pharmaceutical Centrifuge Machine Rotating Mechanism

Batch Operation 70L Pharmaceutical Centrifuge Machine Rotating Mechanism

  • High Light

    Batch operation Pharmaceutical Centrifuge

    ,

    70L pharma centrifuge machine

    ,

    ISO Pharmaceutical Centrifuge

  • Application
    Pharmacy, Chemical Industry, Etc
  • Operation
    Batch, Automatic
  • MOC
    SS304, SS316
  • Bearing
    SKF, NSK As Optional
  • Discharge Type
    Inverting Bag Turning Discharge
  • Key Words
    Bag Inverting Centrifuge
  • Control
    PLC
  • Place of Origin
    China
  • Brand Name
    Peony
  • Certification
    ISO
  • Model Number
    FW
  • Minimum Order Quantity
    1 set
  • Price
    USD160000-450000/set FOB Shanghai
  • Packaging Details
    Standard export packings
  • Delivery Time
    Regular 45-60 working days after deposit is received
  • Payment Terms
    T/T, L/C, Western Union
  • Supply Ability
    50 sets/month

Batch Operation 70L Pharmaceutical Centrifuge Machine Rotating Mechanism



70L Pharmaceutical Continuous PLC Pharmacy Bag Inverting Centrifuge



Introduction



This bag inverting centrifuge is mainly composed of a rotating mechanism, a discharging mechanism, a machine base, a bearing combination, a rotating drum, a pusher, a screen, a casing, and an electric control part.

Under high-speed operation, the suspension enters the drum through the feeding tube. Under the action of centrifugal force, the suspension is evenly distributed in the filter cloth inside the drum. The liquid phase passes through the pores of the filter cloth and the gap of the screen. And the drum filter hole is drained from the mother liquor nozzle, and the solid phase is trapped on the filter screen to form an annular filter residue layer. When unloading, the main engine first slows down to the unloading speed, starts the unloading motor, and pushes the pusher from the drum. Because both ends of the filter cloth are fixed on the pusher and the drum, the filter cloth is turned inside and outside. The trapped material is turned over to the outside of the filter cloth. Also under the action of the centrifugal force field, the material is removed from the filter cloth and discharged from the discharge port.

Batch Operation 70L Pharmaceutical Centrifuge Machine Rotating Mechanism 0


 Working process diagram
Batch Operation 70L Pharmaceutical Centrifuge Machine Rotating Mechanism 1


Technical Parameters



Model
FW-630
FW-800
FW-1000
FW-1300
Drum diameter(mm)
630
800
1000
1300
Drum volume(L)
70
120
200
350
Filter area(m2)
0.56
0.85



1.26
2
High speed(r/min)



1940
1600
1270
1000
Maximum separation factor
1325
1144
901
726
Weight(kg)
3600
4200
5500
6500
Overall dimensions(mm)
2970*1040*1650
3980*1450*1890
4990*1650*2560
5900*2050*3250




Applications


1. Chemical and pharmaceutical synthesis products

2. Brittle crystals

3. Toxic and/or inflammable products

4. Products whose cake can be very compressed

5. Possibility to handle very thin cakes (recovery of the residual product)

6. High reduction of the residual moisture with the HCS system



Batch Operation 70L Pharmaceutical Centrifuge Machine Rotating Mechanism 2





Features

1.Fully sealed structure design, reliable sealing, no pollution to materials.

2.The shell can be completely turned over for easy cleaning and inspection.

3.Discharge without scraper mechanical parts, no damage to gain crystal;

4.There is no material residue in the filter cloth, which facilitates the separation of materials in the next batch.

5.Damping shock absorber, no foundation installation;

6.Unmanned operation, automatic detection, and operation;







Processing Equipment



Batch Operation 70L Pharmaceutical Centrifuge Machine Rotating Mechanism 3
