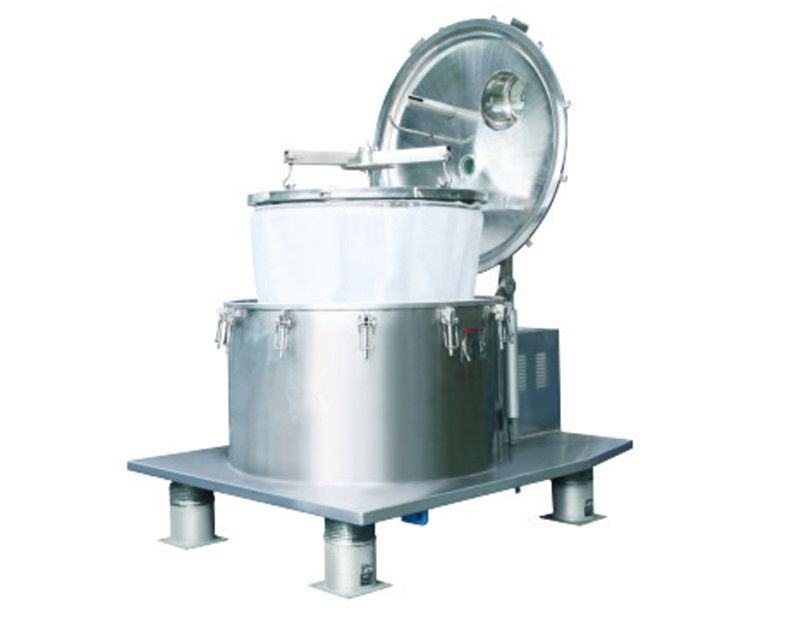

PPBL-S Hanging Bag Up Discharging Horizontal Scraper Centrifuge
Hermetical Hanging Bag Discharging Horizontal Scraper Basket Centrifuge
Intruduction
Fully hermetical structure design is adopted,avoiding cross-contamination of separation materials and in accordance with GMP specifications.The nitrogen protection in the inner chamber of the centrifuge fully meets the requirements of hermetical explosion protection.
Technical Parameter
| Model | PPBL-600-S | PPBL-800-S | PPBL-1000-S | PPBL-1200-S | PPBL-1250-S | PPBL-1250A-S | PPBL1500-S | PPBL-1600-S | PPBL-1800-S |
| Loading capacity(Kg) | 68 | 135 | 200 | 300 | 400 | 520 | 800 | 800 | 1180 |
| Drum Max. Speed(r/min) | 1600 | 1200/1500 | 1080/1200 | 950 | 900 | 1000 | 850 | 800/850 | 720 |
| Maximum Separating factor | 860 | 645/1007 | 652/805 | 605 | 566 | 698 | 606 | 573/646 | 522 |
| Motor power(Kw) | 4 | 7.5 | 11 | 18.5 | 18.5 | 18.5 | 22 | 30 | 37 |
Standard Configuration
PLC frequency conversion control,energy consumption braking.
The machine is equipped with standard filter bag, vertical ordinary or explosion-proot mator, ordinary transmission triangle belt,motor and belt with safety cover(stainless steel),damper shock absorber,and a set of hangers.
Standard Structure Form
Platform structure, shell and plate welding as a whole,shell cover and shell body with flange quick opening structure, shell cover opening using balanced cylinder assist(spring), shell cover with feeding pipe, cleaning pipe, sight glass, observation lamp, ventilation port, etc.,external connection pipe nozzles using standard flange.
Main Characteristics
1.The quick-loading lifting bag discharging method is adopted,which is easy to operate,fast and labor-saving
2.Fully hermetical structure design is adopted,avoiding cross-contamination of separation materials and in accordance with GMP specifications.The nitrogen protection in the inner chamber of the centrifuge fully meets the requirements of hermetical explosion protection.
3.It is easy to discharge with large machine cover
4.Cover opening is equipped with mechanical balancer
5.Equipped with frequency conversion program control system,smooth and steady starting
6.The inner and outer surfaces are polished,without dead angle,all smooth transition,with on-line cleaning(material cleaning,machine cleaning),in order to achieve the best washing effect
7.It has strong applicability,wide application range and crystal particles are not easy to be destroyed
Main Material
The flat plate is Q235 lined with stainless steel. Drum is stainless steel except the drum bottom is casting parts lined with stainless steel. The shell body and shell cover( its accessories)are all stainless steel. The bearing seat is cast steel coated with stainless steel, and the balance spring cylinder is Q235.
Configuration Choice
1. T1. Nitrogen protection system
2. Liquid-seal device at liquid outlet
3. PLC Program Control and Material layer detection
4. Inclined plate asynchronous distributor, on-line cleaning device
5. Equipped with frequency conversion control and feedback braking system
6. Mobile installation, equip with shock absorber,etc.
7. Other configuration requirements
