Description of GKH Automatic Horizontal PLC Programmable Control Centrifuge For Starch
Product Description
GKH automatic starch scraper discharging centrifuge is suitable for separating such products as small solid phase granularity and which is hard to be separated. It is widely used in pharmaceutical, chemical and food-stuff industry (e.g. corn starch, wheat starch, tapioca, potato starch). This machine is controlled by PLC and regulates speed by frequency convertor, braking system applies dynamic braking and regenerative braking. The whole separation process is automatic circulative process and manual operation mode is applicable to be changed over from automatic operation mode.
Technical Parameters of GKH Automatic Centrifuge For Starch
| Model | Main Motor Power(Kw) | Max. Speed(r/min) | Drum Volume(L) | Size Including Shock Absorber(mm) | Weight(Kg) | Weight Including Platform(Kg) |
| GKH-450 | 15 | 2600 | 21 | 1800*1375*1902 | 2500 | 2500 |
| GKH-800 | 37 | 1500 | 110 | 2439*1900*2150 | 5800 | 10800 |
| GKH-1000 | 45 | 1400 | 200 | 3050*2400*2192 | 6200 | 13200 |
| GKH-1050 | 45 | 1400 | 210 | 3050*2400*2192 | 7800 | 15000 |
| GKH-1250 | 75/90 | 1200 | 335 | 3875*2500*2612 | 8000 | 16000 |
| GKH-1600 | 132 | 950 | 879 | 5620*3200*3930 | 20000 | 39000 |
| GKH-1800 | 160 | 900 | 1390 | 5862*3600*3910 | 24500 | 52500 |
| GKH-2000 | 200 | 950 | 1923 | 7577*3700*4053 | 35000 | 62000 |

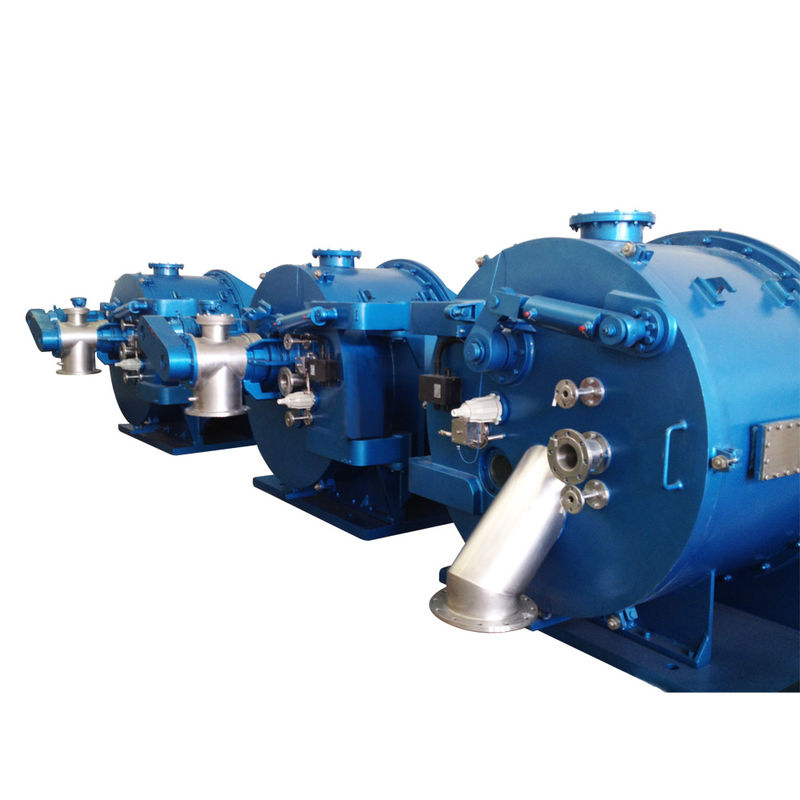

Pictures of GKH Automatic Centrifuge For Starch
Properties & Uses of GKH Automatic Centrifuge For Starch
GKH Series automatic siphon centrifuge is a solid-liquid separation equipment which adopts continuous operation and intermittent discharging.Its production capacity and separation effect is better than GKF centrifuge.
This machine is controlled by PLC and regulates speed by frequency control,braking system applies dynamic braking and regenerative braking,the whole separation process is automatic cycle operation and manual operation mode is applicable to be changed over from automatic operation mode.
GKH Series automatic siphon centrifuge is more suitable for separating such product as small solid phase granularity and which is hard to be separated.It is widely used in pharmaceutical,Chemical and foodstuff industry(e.g.starch,calcium phosphate.Sodium bicarbonate.)
