Product Details
Place of Origin: Jiangsu
Brand Name: Peony
Certification: CE,ISO
Model Number: PDSLA-400/600
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: FOB USD
Packaging Details: wooden packing
Delivery Time: 60 working days
Payment Terms: L/C, T/T
Supply Ability: 50 set per month
Condition: |
New |
Warranty: |
12 Months |
After-sales Service Provided: |
Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Video Technical Support,Field Maintenance And Repair Service |
Type: |
Centrifuge |
Certification: |
CE,ISO |
Application: |
Chemical |
Material: |
Stainless Steel,SS304 |
Operation: |
Easy Operation,PLC System |
Machine Type: |
Separation Equipment |
Product Name: |
Centrifugal Separator |
Keyword: |
Industrial Centrifuge |
Keyword1: |
Latex Centrifuge Machine |
Condition: |
New |
Warranty: |
12 Months |
After-sales Service Provided: |
Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Video Technical Support,Field Maintenance And Repair Service |
Type: |
Centrifuge |
Certification: |
CE,ISO |
Application: |
Chemical |
Material: |
Stainless Steel,SS304 |
Operation: |
Easy Operation,PLC System |
Machine Type: |
Separation Equipment |
Product Name: |
Centrifugal Separator |
Keyword: |
Industrial Centrifuge |
Keyword1: |
Latex Centrifuge Machine |
Latex Centrifuge Machine For Raw Material For Making Rubber Production
Working Principle
The liquids and solids, which are, will be, due to the different sediment velocities to be gained, separated and sediment in the centrifuge and gravity force fields thus to reach the purpose of separation. The liquid phase and solid phase, which interactive indissoluble and with different densities in the turbid liquid will be gained different sediment velocities, so as to be divided into layers, which can be separated from each other. The separations that occur in the gravity field are called gravity separation and sedimentation in the centrifuge field called centrifugal separation and sedimentation.
| Model | PDSLA-400/600 |
| Rated capacity (L/h) | 400-600 |
| Motor power (kw) | 11.0 |
| Net Weight (kg) | 1100 |
| Gross Weight (kg) | 1550 |
| Dimension (L×W×H) | 1260*930*1700 |
| Dimension of package (L×W×H) | 1570*1430*1900 |
Product Description
The natural latex is from rubber tree, milk white , solid content is 30%~40%, and the average diameter of solid is 1.06um. The fresh natural latex contain latex 27%~41.3%(m/m), water 44%~70%, protein 0.2%~4.5%, natural resin 2%~5%, saccharides 0.36%~4.2% and ash 0.4% . To facilitate transportation and processing, natural rubber latex should be concentrated to the solid content of 60% by adopting the method of centrifugal or evaporation, so it also known as concentrated latex. Latex separator model PDSLA-400/600 is suitable for concentrating and purifying of the natural latex. It can separate the latex into the cream and skim, as well as eliminate the solid impurities at the same time. This model of separator is provided with the following advantages: inverter start-up, el. magnetic brake, short stopping-and long effective separating time, large treatment capacity, good separating efficiency. It is really a excellent equipment for the latex production.
Description
The natural latex is from rubber tree, milk white , solid content is 30%~40%, and the average diameter of solid is 1.06um. The fresh natural latex contain latex 27%~41.3%(m/m),water 44%~70%,protein 0.2%~4.5% ,natural resin 2%~5% ,saccharides 0.36%~4.2% and ash 0.4%.
To facilitate transportation and processing, natural rubber latex should be concentrated to the solid content of 60% by adopting the method of centrifugal or evaporation. so it also known as concentrated latex.
Latex separator model PDSLA-400/600 is suitable for concentrating and purifying of the natural latex.It can separate the latex into the cream and skim,as well as eliminate the solid impurities st the same time.
This model of separator is provided with the following advantages: inverter start-up, el.magnetic brake, short stoppin, and long effective separating time, large treatment capacity, good separating efficiency. It is really a excellent equipment for the latex production.
Advantages
1. Inverter start-up
2. El.magnetic brake
3. Short stopping-and long effective separating time
4. Large treatment capacity
5. Good separating efficiency
More Introduce
FEED AND DISCHARGE
Through an enclosed line system the latex will be fed into initial container of the separator;the liquid level maintains constant by means of floating.Feeding rate can be adjusted by raising or lowing the floating.
FRAME,HOOD AND DRIVE
The frame of separator is equipped with magnetic brake,machine brake tachometer for control the speed of bowl and level inspection glass. The separator is driven by motor installed by means of friction pad and power transferred to bowl through
centrifugal friction clutch. All bearing and gears are flush lubrication used oil from oil groove on the frame.The hood is fixed on the frame by four turning press unit,feeder unit with floating fixed on initial container of top of hood by adjustable
press unit.
MAGNETIC BRAKE
Magnetic brake that installed on upper section of frame consists of six magnetic coils.It can brake bowl in
short time(≤four mins).
Acting of the brake indicated by pilot light,the bowl also can be broken with machine brake during power
broken.The acting of machine brake is upon horizontal axes.
After sales
*12 months guarantee period from machine arriving date.
*Abundant spare parts in stock are availble to provide.
*Our technicians could be dispatched for overseas service.
*7*24 hours technical consultation.
*Your workers could get trained both in our factory and yours.
*Routine tracing till the machine work properly will be done timely.
*We will remind you to do the normal maintenance.
*Your suggestions or any comments & reflection would be treated in priority.
*Marketing team will visit you during our visit to your country if you require.

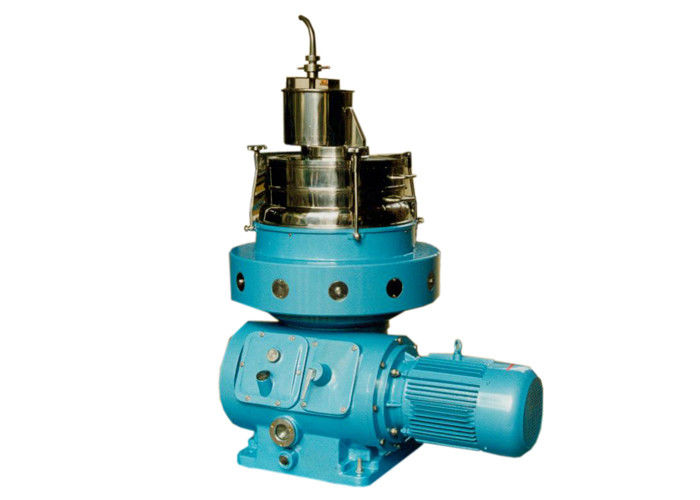

Latex Centrifuge Machine:600L/H rubber procession Latex Centrifuge Machine El magnetic brake
